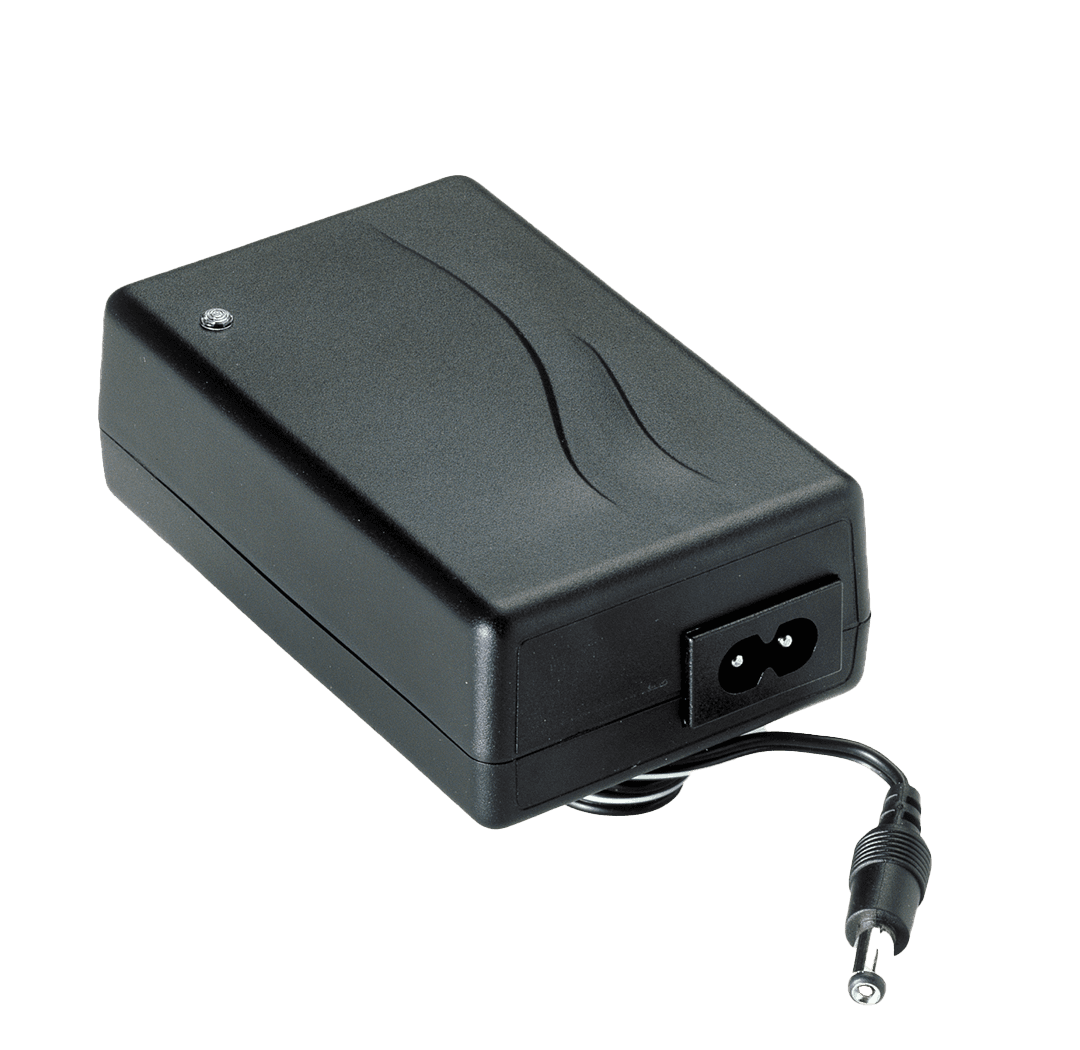

2215 NiMH
Desktop charger NiMH batt. max. 35W
Product Information
Universal input voltage (90-264 VAC)
Computer Programmable Microprocessor (CPM)
CPM offers the following charge detection options (one or more):dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold,Temperature gradient adjustment
Link to CPM spec sheet
Approvals
Medically certified
Safety: EN 60601 3ed
UL approved
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Desktop unit (plug-in unit available: 2216)
- Exchangeable DC plugs available
- Standard DC output cord (for exch. plugs): L: 1.8m, AWG20, UL2468
- Mounting bracket available
- Order plugs and mains cord separately
Accessories
Wall Mount Bracket Type M 201565
Art. no:
201565
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201
Art. no:
131125
Size (mm):
L9.5 ⌀2.35/0.7
Exch DC Plug EIAJ 53202
Art. no:
131126
Size (mm):
L9.5 ⌀4/1.7
Exch DC Plug EIAJ 53203
Art. no:
131127
Size (mm):
L9.5 ⌀4.75/1.7
Exch DC Plug EIAJ 53204
Art. no:
131128
Size (mm):
L9.5 ⌀5.5/3.3
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615
Art. no:
131123
Size (mm):
L14.5 ⌀3.5
Exch DC Plug 3617
Art. no:
131120
Size (mm):
L12 ⌀5.5/2.5
Exch DC Plug 3618
Art. no:
131193
Size (mm):
L9.3 ⌀5.5/2.45
Exch DC Plug 3620
Art. no:
131124
Size (mm):
L11.5 ⌀2.5
Exch DC Plug 3627
Art. no:
131122
Size (mm):
L14 ⌀6.2/1.97
Exch DC Plug 3630
Art. no:
131119
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3630A
Art. no:
131192
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3635
Art. no:
131121
Size (mm):
L9 ⌀3.8/1.3
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
