Charge guide Lead Acid method D
2440 LA

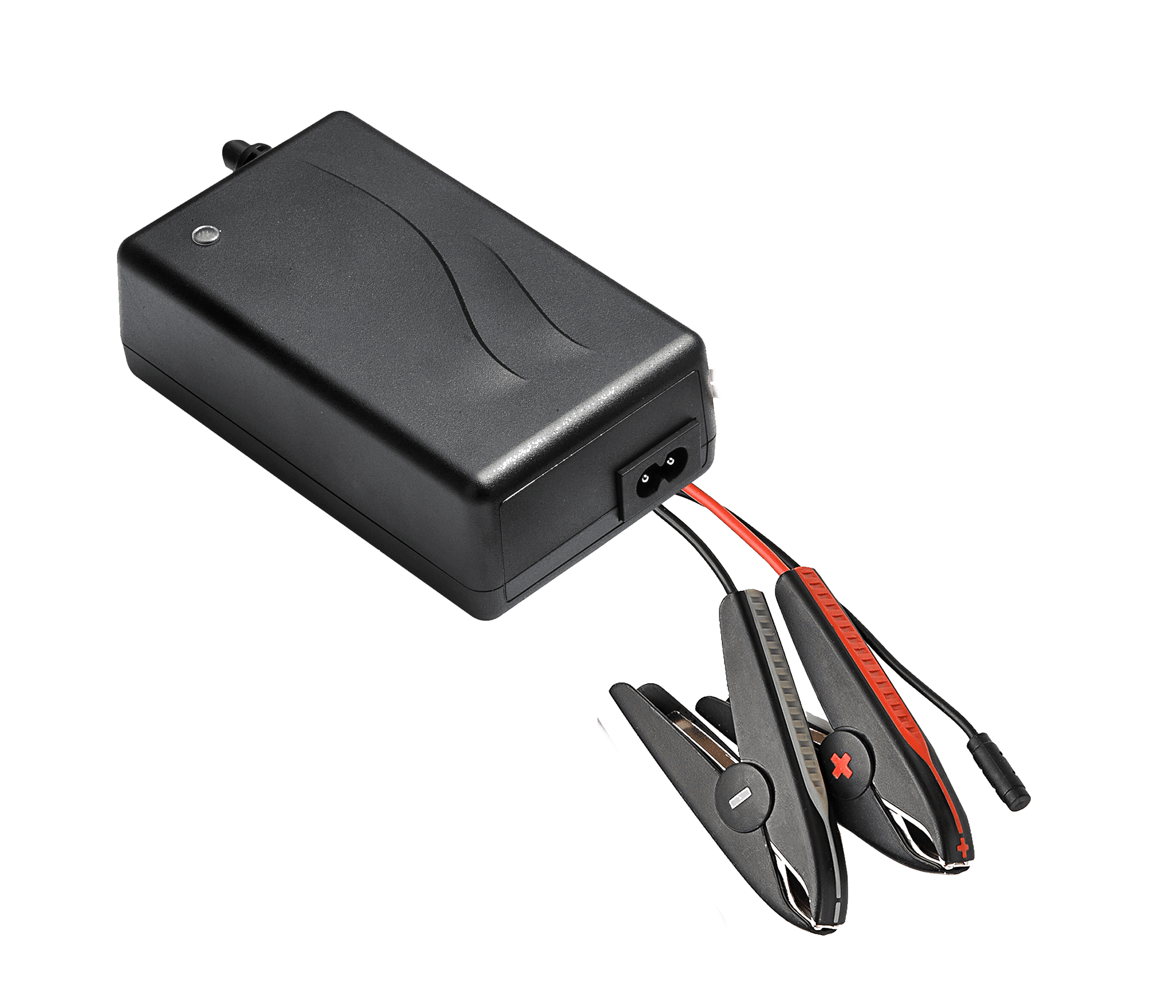

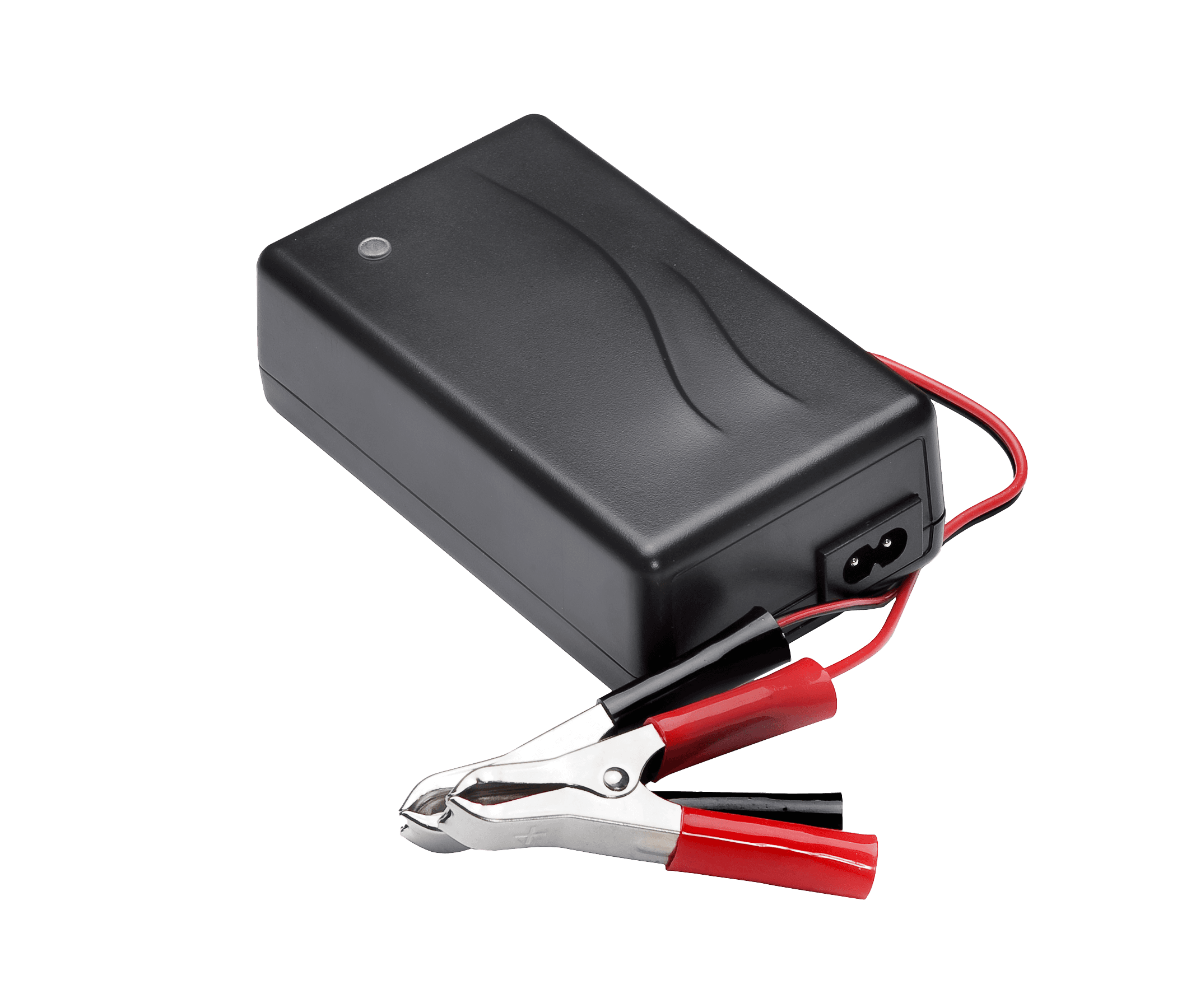

Desktop charger Lead Acid batt. max. 4A
Product Information
3-step charge control with microprocessor
Low current start up of deeply discharged batteries (step 0)
Unaffected by fluctuations in mains voltage
Temperature compensated charge voltage w/ external temp sensor (12V - 2440012000)
Protected against reverse polarity and short circuit proof
Waterproof (IP67) version available
Wall mount IP67 version available: go to 2440 IP67
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Available versions
- 12V batteryclips
- 12V female
- 24V batteryclips
- 24V female
- 36V
- 48V batteryclips
- 48V female
Notes
- Desktop, 2-pin IEC 60320 unit
- 2MOOP standard, 2MOPP available
- Battery clips, push-on terminals or exchangeable DC plugs
- Standard DC output cord (for exch. plugs): 1.8m, AWG 18, OD: 2.7 X 5.4, UL 2468
- DC Cordset w. BatteryClips & temp sense: 1.5m, 2x16AWG
- Mounting bracket available
- Order plugs and mains cord separately
- IP67 desktop version: Fixed cord, weight 890g
Accessories

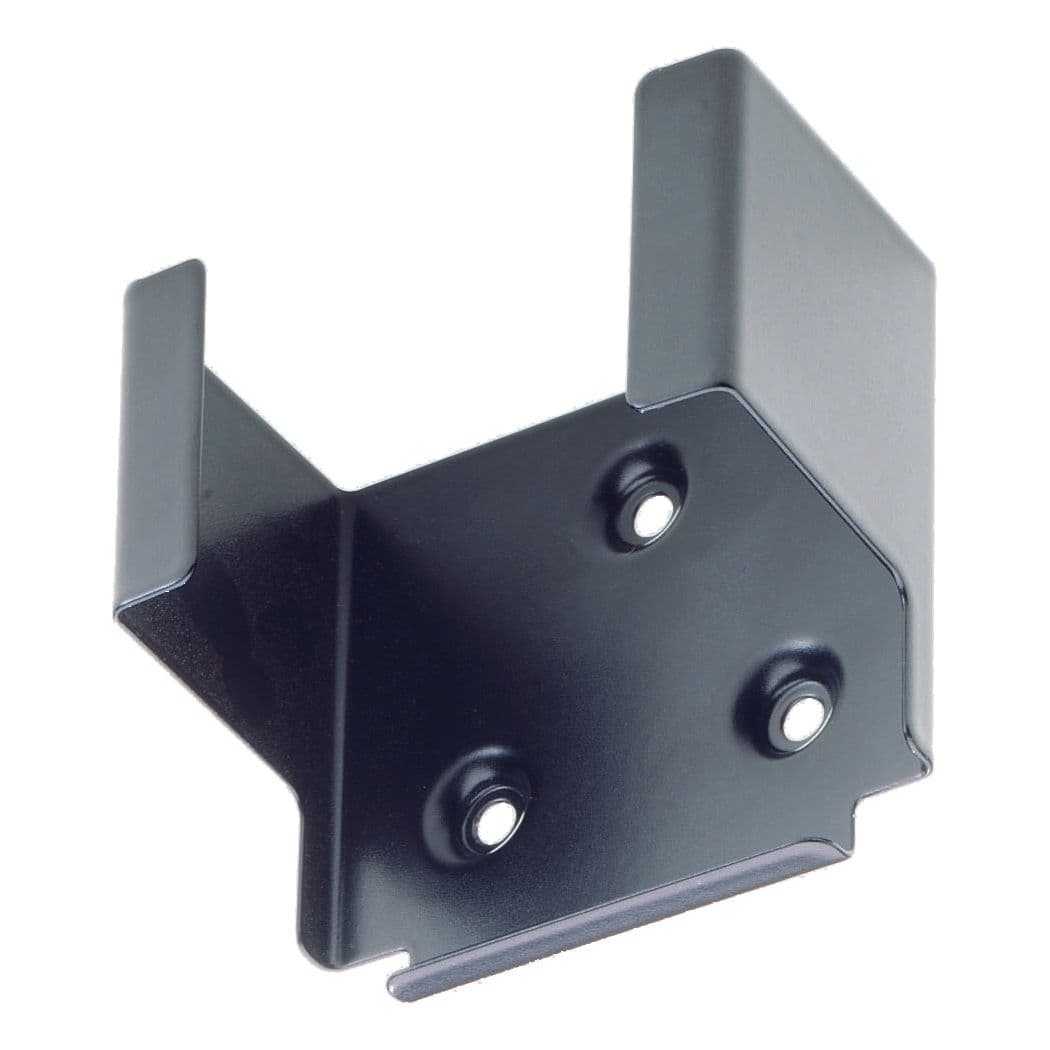

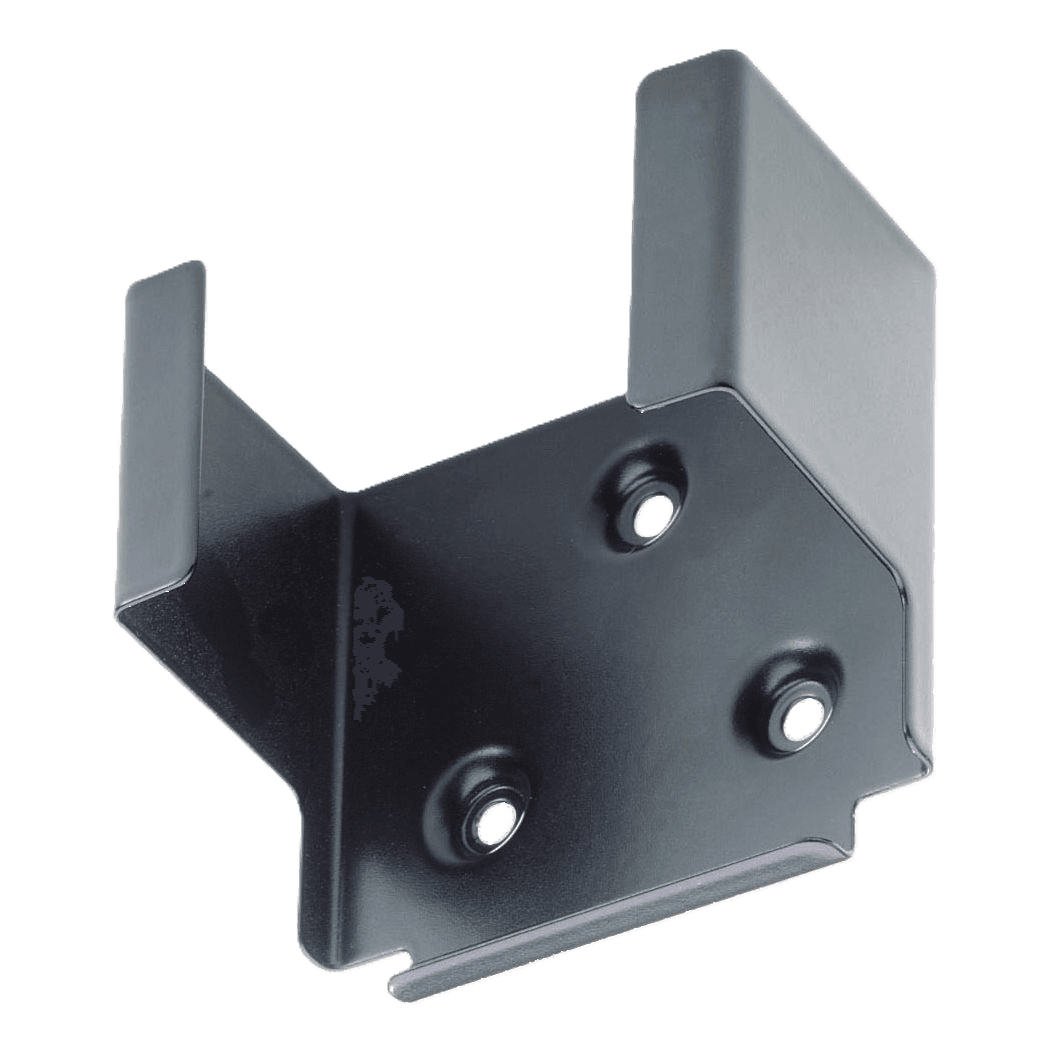

Wall Mount Bracket Type L 201970
Art. no:
201970
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201
Art. no:
131125
Size (mm):
L9.5 ⌀2.35/0.7
Exch DC Plug EIAJ 53202
Art. no:
131126
Size (mm):
L9.5 ⌀4/1.7
Exch DC Plug EIAJ 53203
Art. no:
131127
Size (mm):
L9.5 ⌀4.75/1.7
Exch DC Plug EIAJ 53204
Art. no:
131128
Size (mm):
L9.5 ⌀5.5/3.3
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615
Art. no:
131123
Size (mm):
L14.5 ⌀3.5
Exch DC Plug 3617
Art. no:
131120
Size (mm):
L12 ⌀5.5/2.5
Exch DC Plug 3618
Art. no:
131193
Size (mm):
L9.3 ⌀5.5/2.45
Exch DC Plug 3620
Art. no:
131124
Size (mm):
L11.5 ⌀2.5
Exch DC Plug 3627
Art. no:
131122
Size (mm):
L14 ⌀6.2/1.97
Exch DC Plug 3630
Art. no:
131119
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3630A
Art. no:
131192
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3635
Art. no:
131121
Size (mm):
L9 ⌀3.8/1.3
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
Exch DC Cable Conn Cord from charger 131685
Art. no:
131685

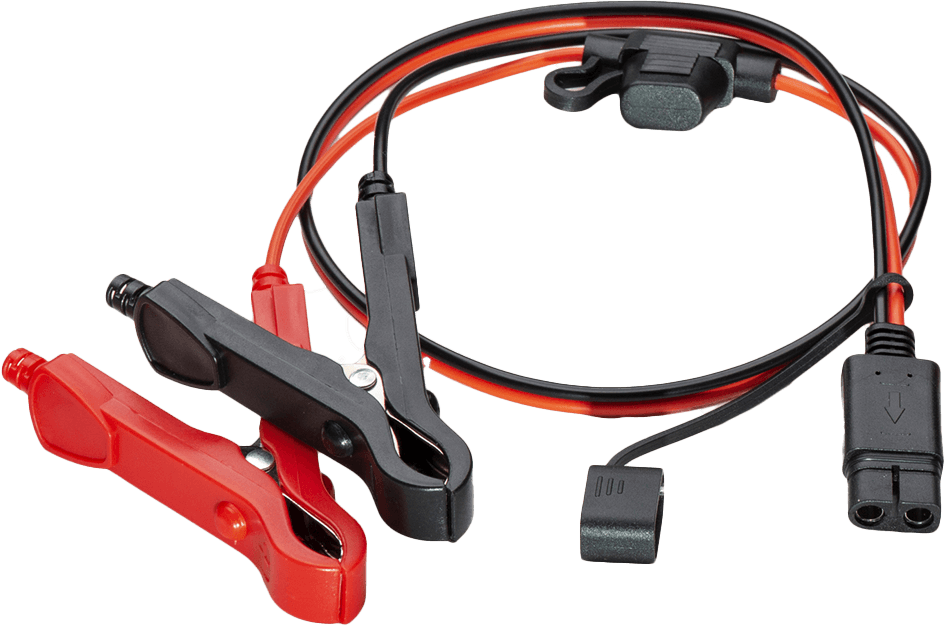

Exch DC Cable Conn Cord to battery 131686
Art. no:
131686

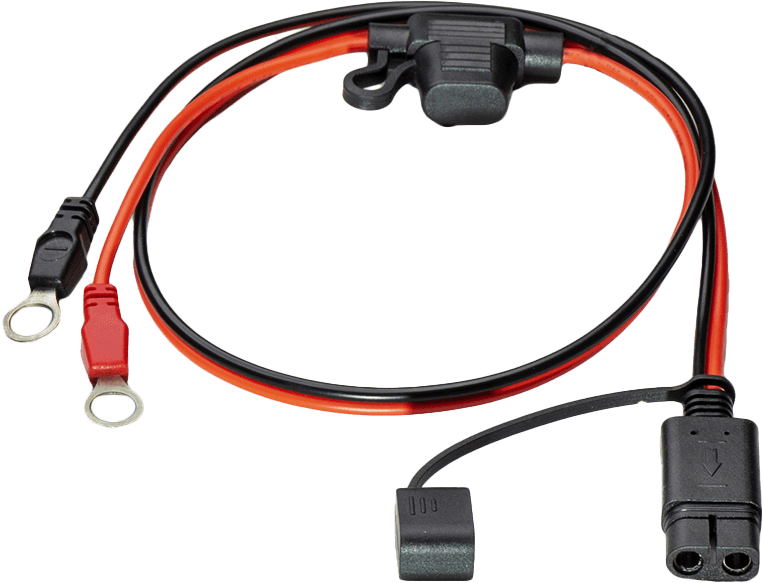

Exch DC Cable Conn Cord to battery Ring 131687
Art. no:
131687
