Charge guide Li-Ion method B
2440 LI

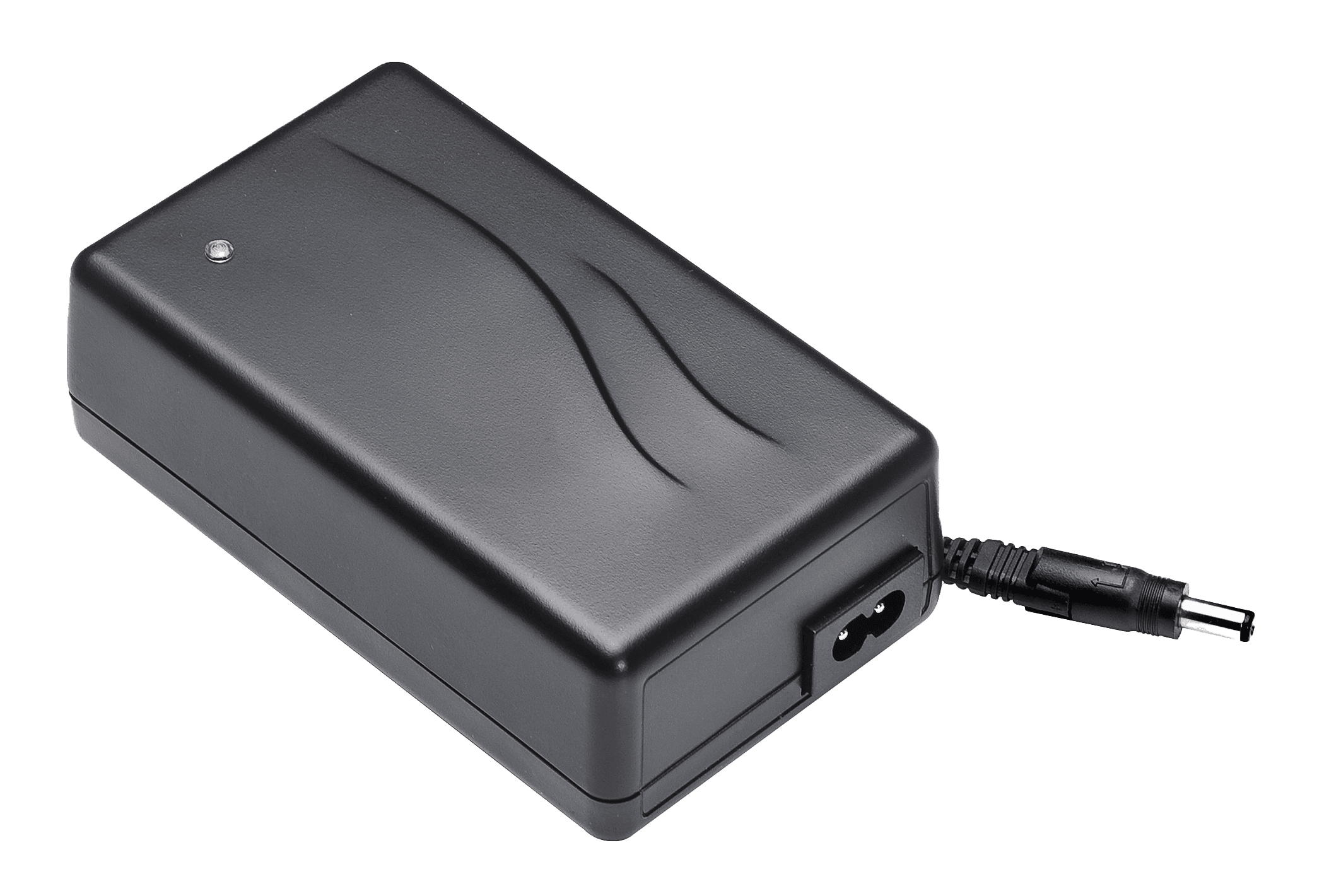

Desktop charger Li-Ion batt. max. 4A
Product Information
3-step charge control with current detection as charge termination
Universal input voltage (90-264 VAC)
Charging 1-16 battery cells
Waterproof (IP67) version available
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Available versions
- 1 Cell
- 2 Cells
- 3 Cells
- 4 Cells
- 5 Cells
- 6 Cells
- 7 Cells
- 8 Cells
- 9-cell
- 10-cell
- 11-cell
- 12-cell
- 13-cell
- 14-cell
- 15-cell
- 16-cell
Notes
- Desktop unit
- 2-pin IEC 60320
- 2MOOP standard, 2MOPP available
- Exchangeable DC plugs available
- Standard DC output cord for exch. plugs (1&3 cells): 0,75m, EMI Core, Coax Inner=16AWG Outer=18AWG, UL1185
- Standard DC output cord for exch. plugs (2&4-16 cells): 1.8m, AWG 18, OD: 2.7 X 5.4, UL 2468
- Mounting bracket available
- Order plugs and mains cord separately
Accessories

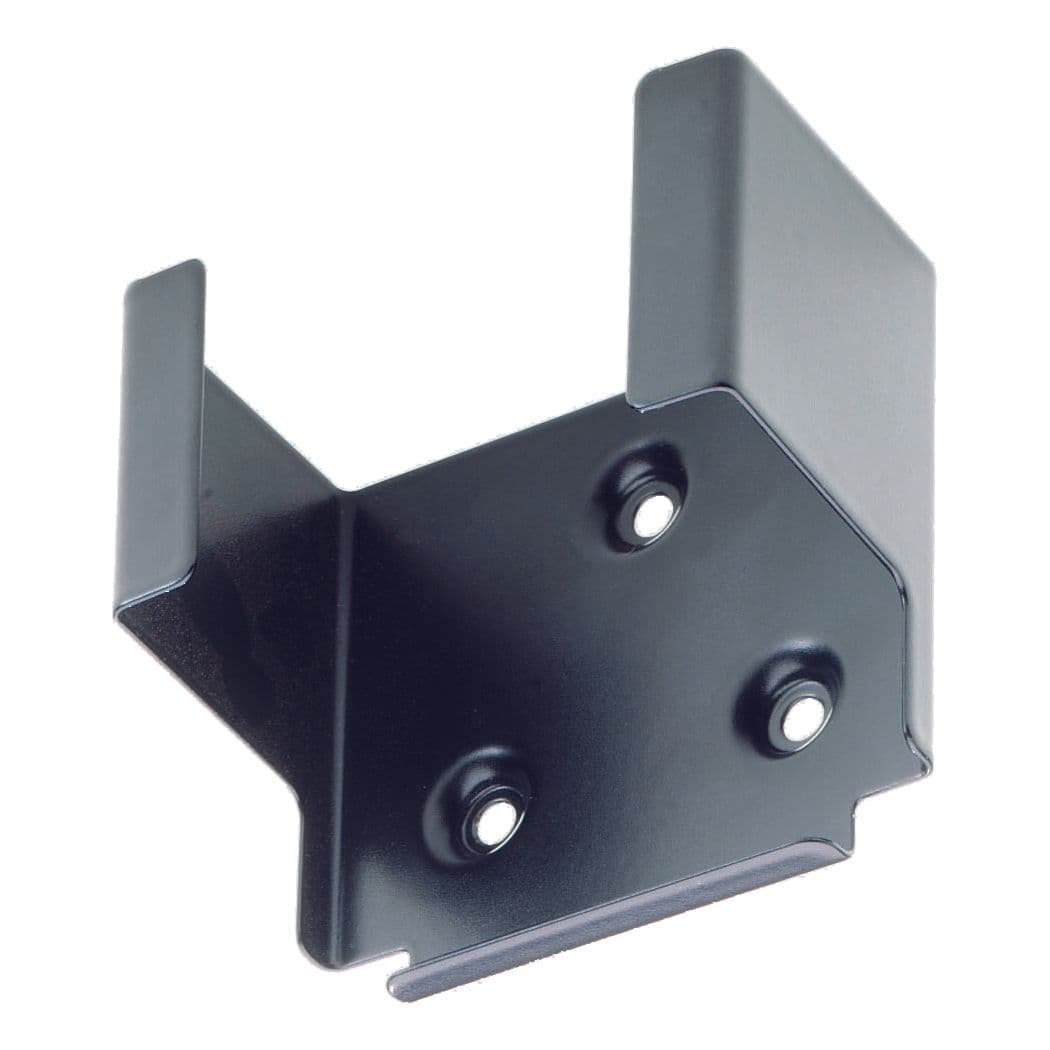

Wall Mount Bracket Type L 201970
Art. no:
201970
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
