Charge guide Lead Acid method B
2542 LA

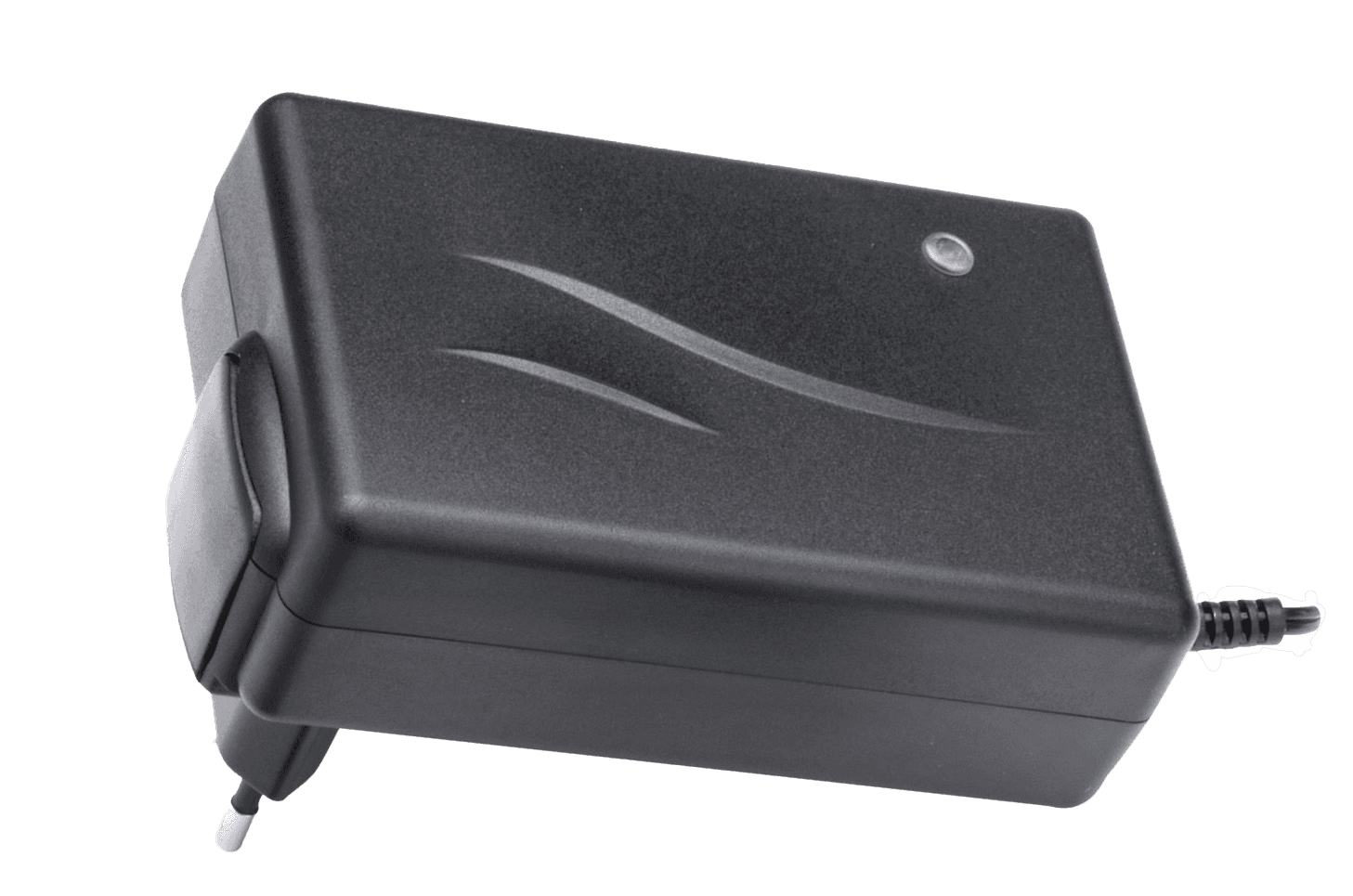

Plug-in charger Lead Acid batt. max. 2,2A
Product Information
3-step charge control with current detection as charge termination
Universal input voltage (90-264 VAC)
2-pin IEC 320 mains connector
Waterproof (IP67) version available
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11 (fixed cord only)
EMC:
• EN 60601-1-2 ed. 4
MET
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Plug-in unit
- 2MOOP standard, 2MOPP available
- Exchangeable AC and DC plugs
- Order plugs & mains cord separately
- Standard DC output cord for exch. Plugs (12+48V) 1.8m, AWG 18, OD: 2.7 X 5.4, UL 2468
- Standard DC output cord for exch. Plugs (24V) L: 1.8m, AWG20, UL2468
- Mounting bracket available
- Desktop unit available (2541)
Accessories

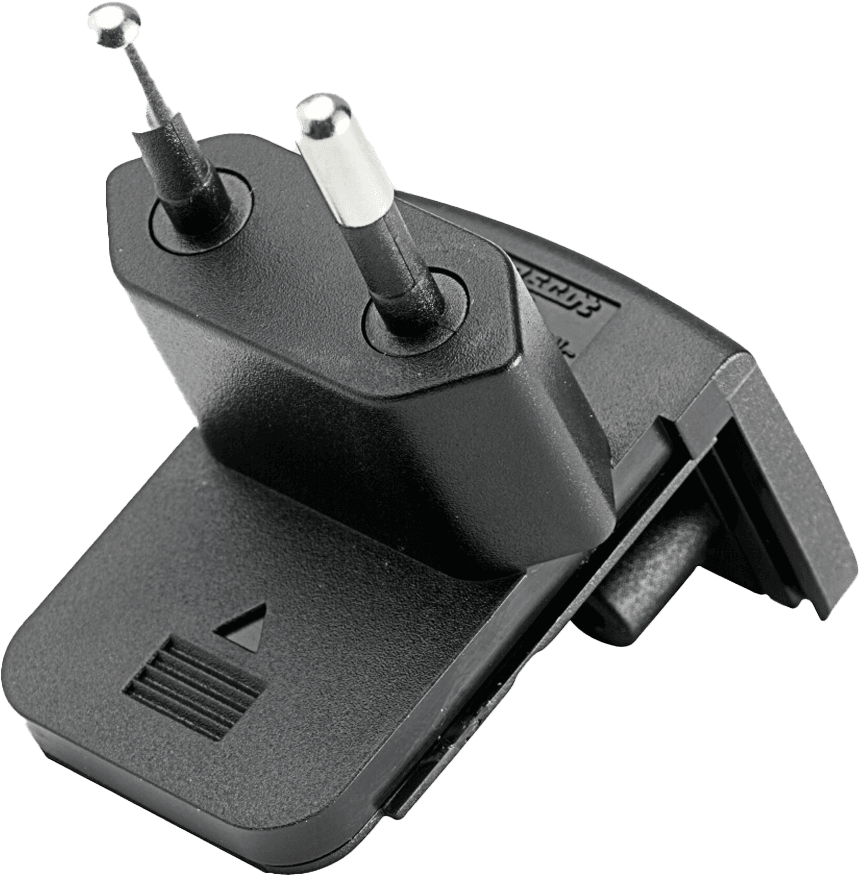

Exch AC Plug EU 018110
Art. no:
018110

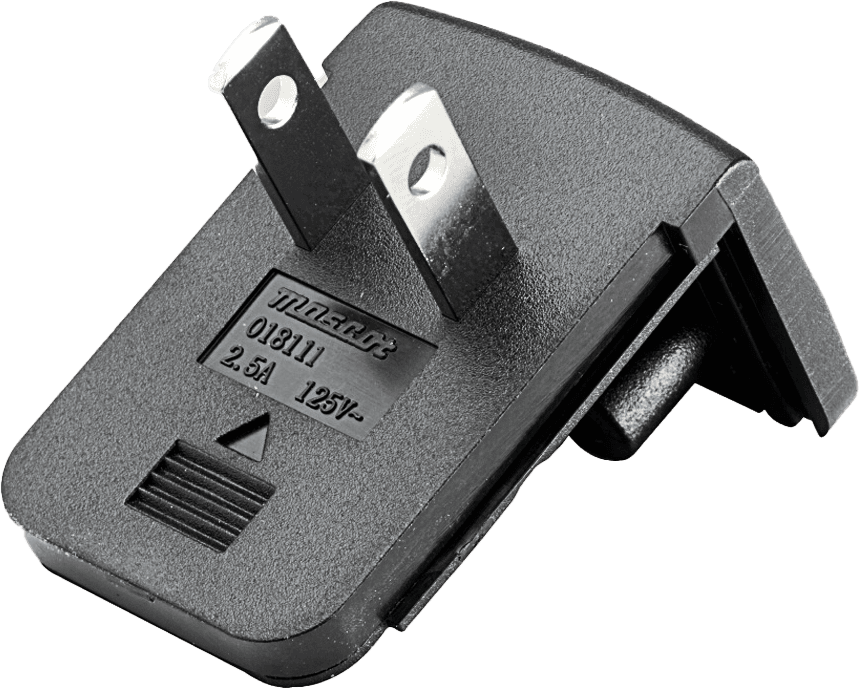

Exch AC Plug US 018111
Art. no:
018111

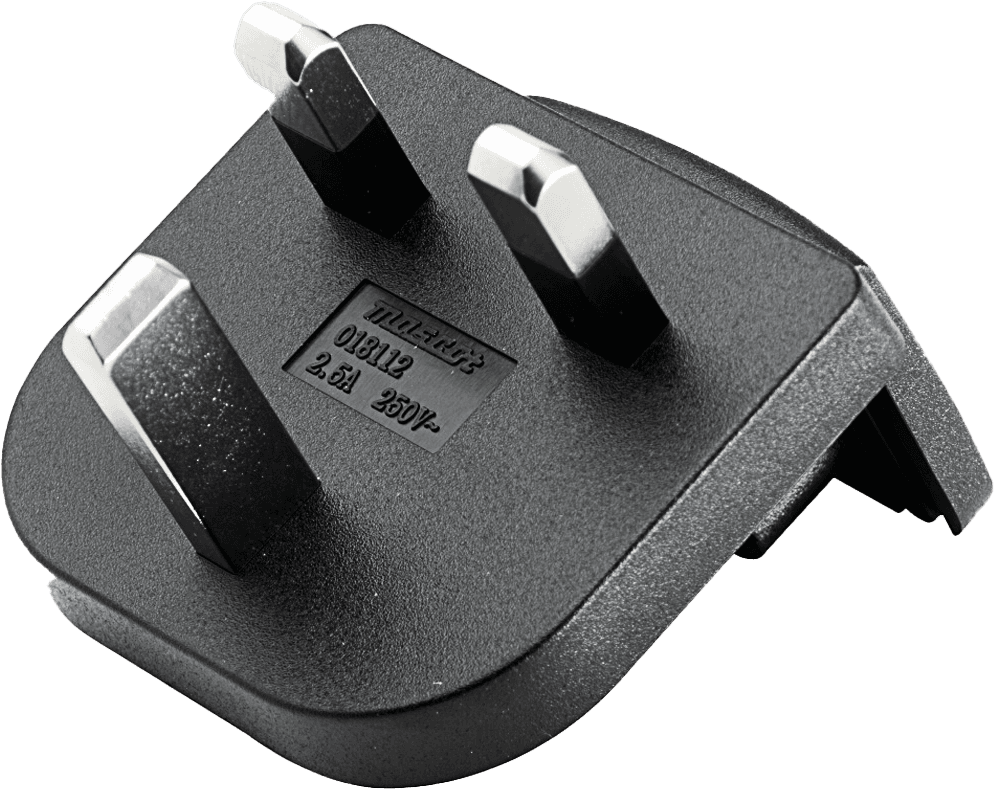

Exch AC Plug UK 018112
Art. no:
018112

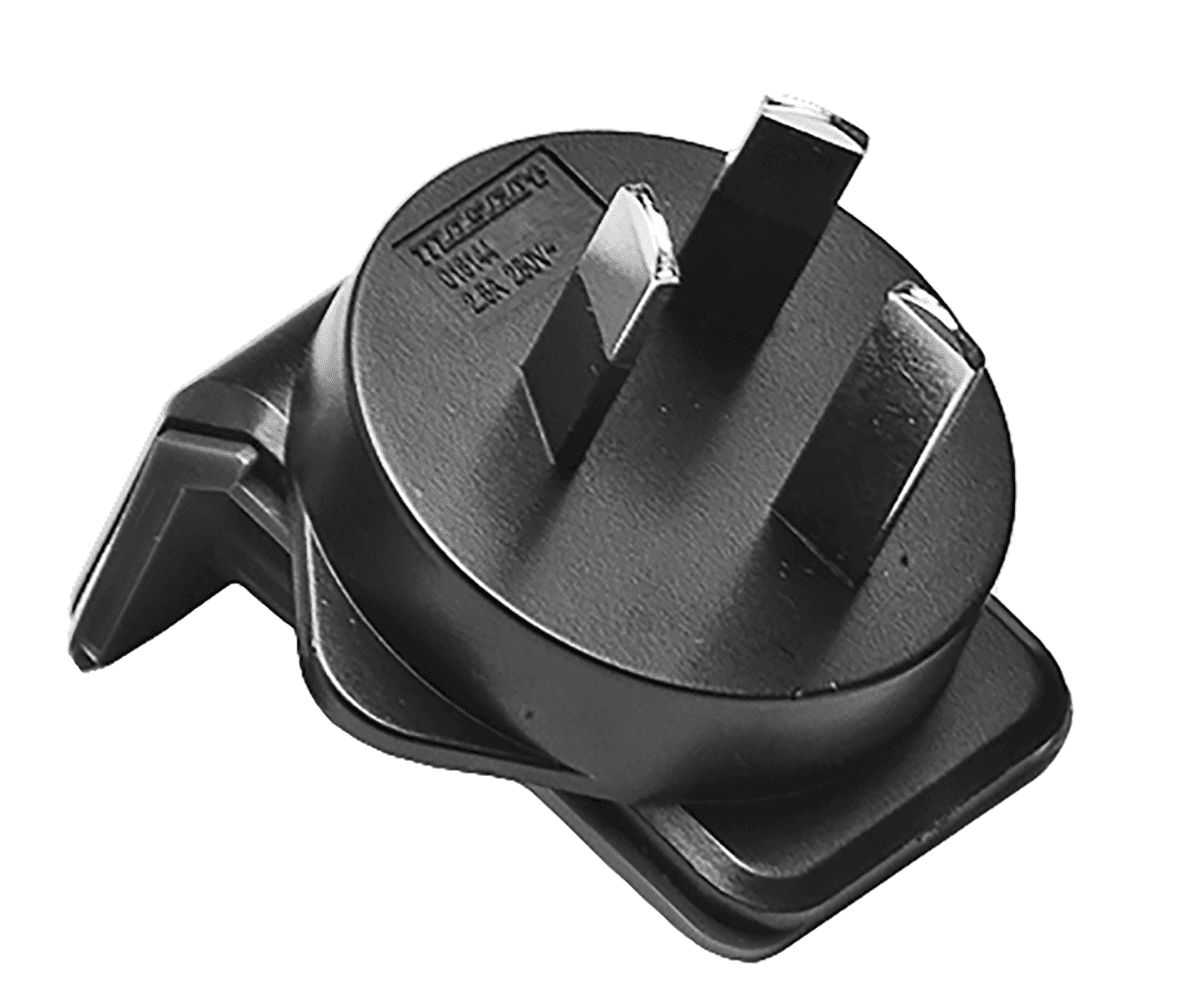

Exch AC Plug AUS 018114
Art. no:
018114

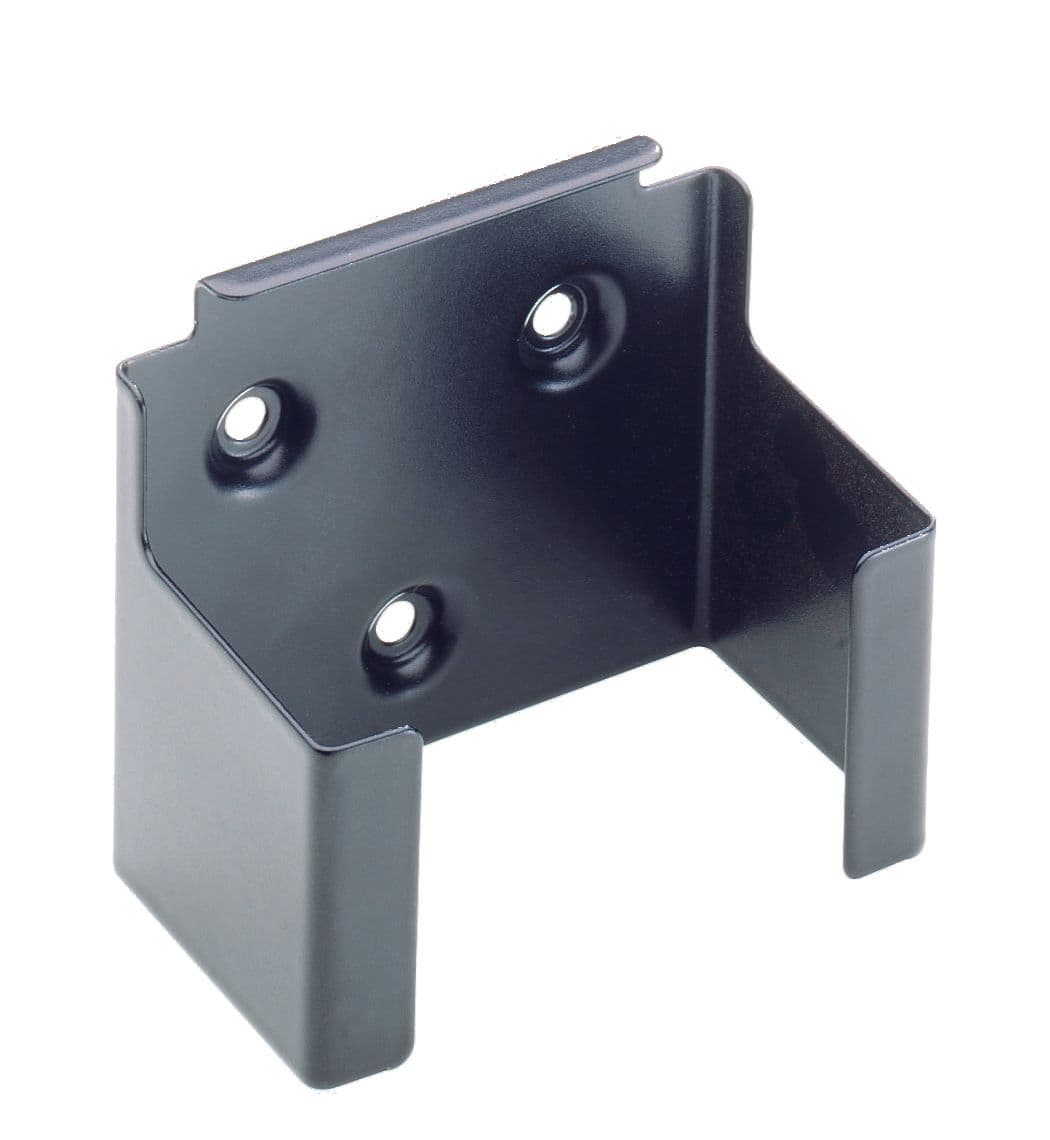

Wall Mount Bracket Type M 201565
Art. no:
201565
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
Exch DC Cable Conn Cord from charger 131685
Art. no:
131685

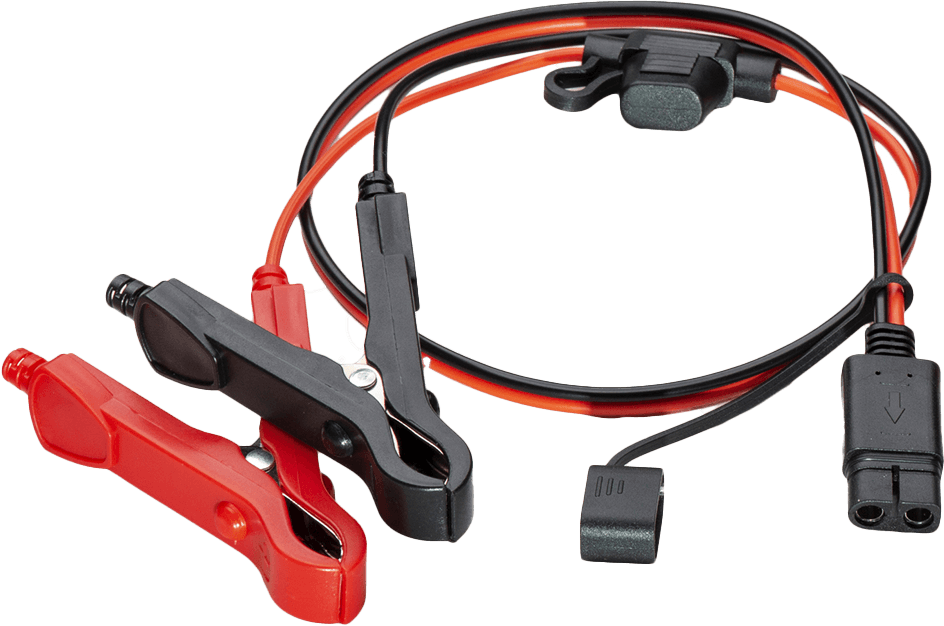

Exch DC Cable Conn Cord to battery 131686
Art. no:
131686

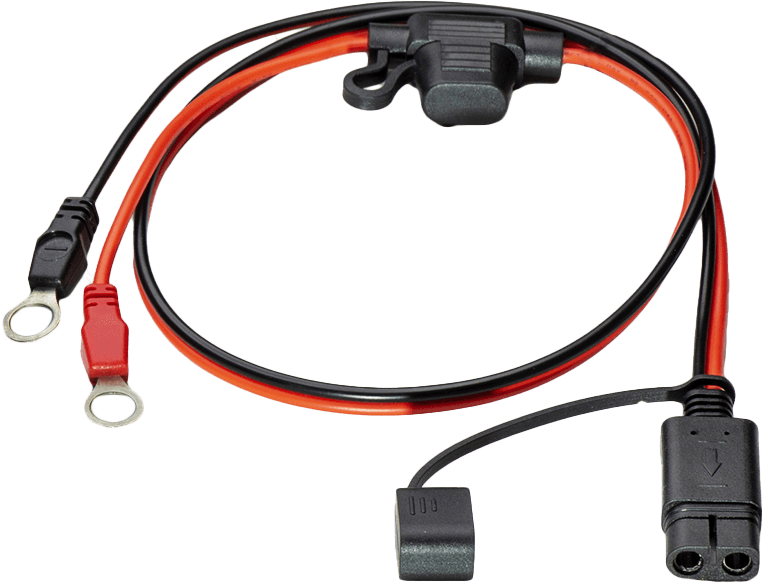

Exch DC Cable Conn Cord to battery Ring 131687
Art. no:
131687
