Charge guide Lead Acid method D/E

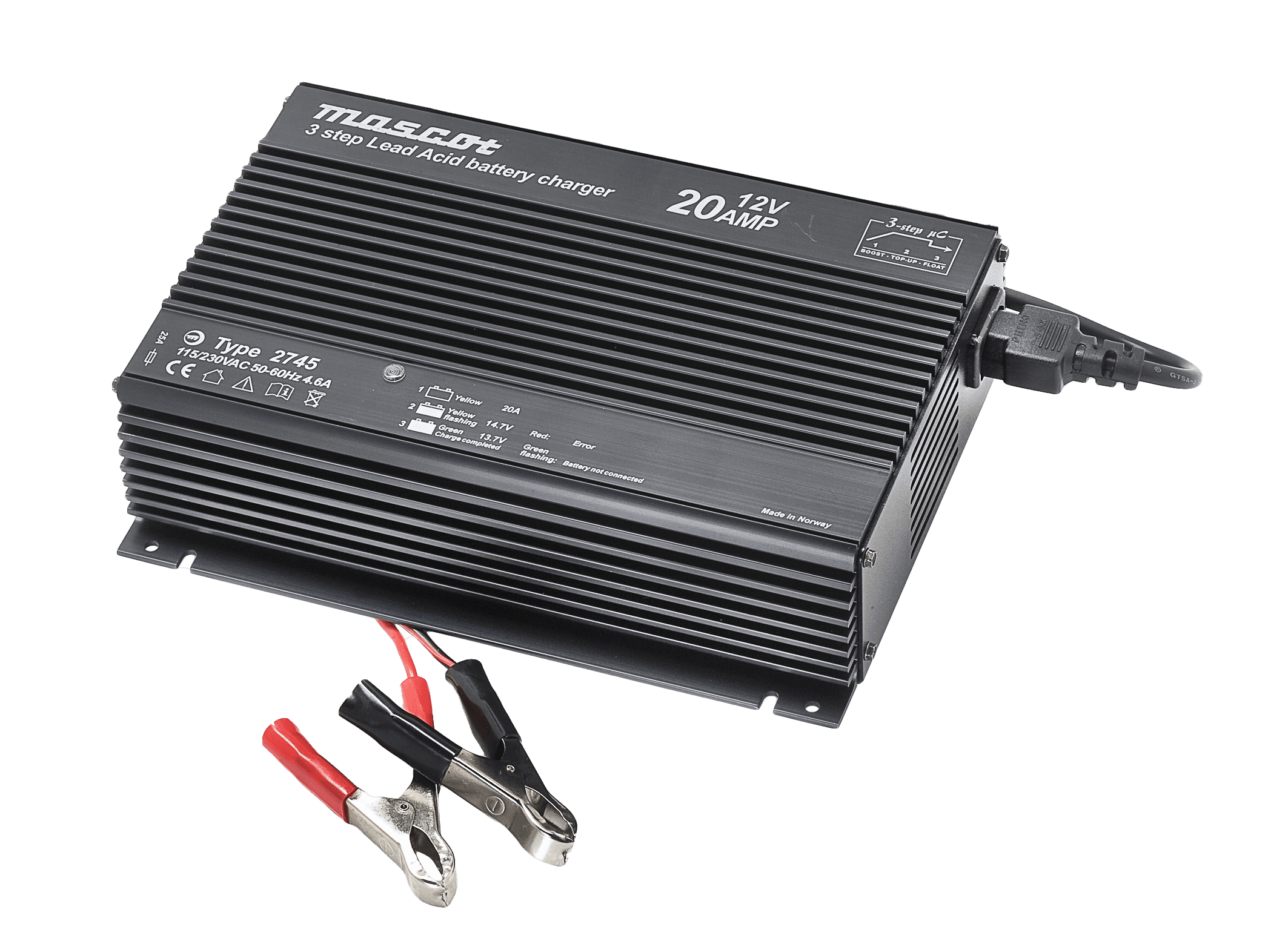

2745 LA
Desktop charger Lead Acid batt. max. 20A
Product Information
3-step charge control with microprocessor
Autodetect 120/230 VAC
Low current start up of deeply discharged batteries (step 0)
Protected against reversed polarity and short circuit proof
Unaffected by fluctuations in mains voltage
Smart temperature control: Silent temperature controlled fan with fan speed regulation
Waterproof (IP67) version available
Pulsing float charge
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Desktop unit
- 230V version (2945 LA)
- Heat-sink casing
- 3-pin IEC 60320
- DC cordset w. 50A Battery Clips UL2468: 1,35m 3,5mm Red/Blk + Temp.Sens. UL2569
