Charge guide Li-Ion method B
3240 LI

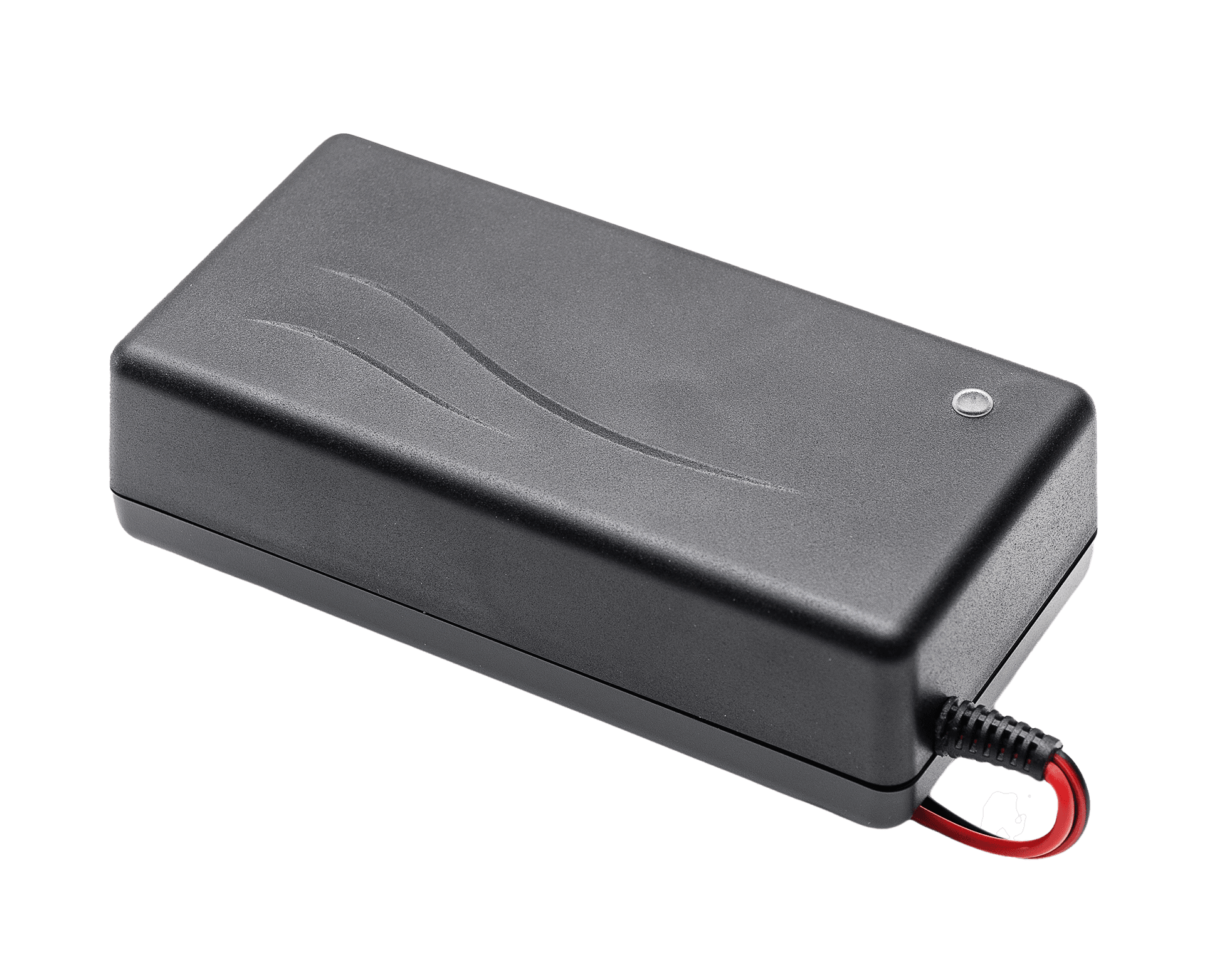

Desktop charger Li-Ion batt. max. 8.5 A
Product Information
3-step charge control with current detection as charge termination
Switch mode charger
Charging 1-16 Li-Ion battery cells
2-pin IEC 320 input connector
Waterproof (IP67) version available
With NTC input on request
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Available versions
* On request- 1-cell Li-Ion *
- 2-cell Li-Ion *
- 3-cell Li-Ion
- 4-cell Li-Ion
- 5-cell Li-Ion
- 6-cell Li-Ion
- 7-cell Li-Ion
- 8-cell Li-Ion
- 9-cell Li-Ion
- 10-cell Li-Ion
- 11-cell Li-Ion
- 12-cell Li-Ion
- 13-cell Li-Ion
- 14-cell Li-Ion
- 15-cell Li-Ion *
- 16-cell Li-Ion
Notes
- Desktop unit
- 2MOOP standard, 2MOPP available
- Exchangeable DC plugs (≥5 cells)
- Standard DC cordset, open ends (1-4 cells) : 1m, black/red 2x16AWG open ends w. fuseholder, UL2569
- Standard DC output cord for exch. plugs (6-16 cells): 1m, black 2x16AWG, Fuse holder (7.5A fuse) UL2569
- Order plugs and mains cord separately
Accessories
Wall Mount Bracket Type L 201970
Art. no:
201970
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201
Art. no:
131125
Size (mm):
L9.5 ⌀2.35/0.7
Exch DC Plug EIAJ 53202
Art. no:
131126
Size (mm):
L9.5 ⌀4/1.7
Exch DC Plug EIAJ 53203
Art. no:
131127
Size (mm):
L9.5 ⌀4.75/1.7
Exch DC Plug EIAJ 53204
Art. no:
131128
Size (mm):
L9.5 ⌀5.5/3.3
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615
Art. no:
131123
Size (mm):
L14.5 ⌀3.5
Exch DC Plug 3617
Art. no:
131120
Size (mm):
L12 ⌀5.5/2.5
Exch DC Plug 3618
Art. no:
131193
Size (mm):
L9.3 ⌀5.5/2.45
Exch DC Plug 3620
Art. no:
131124
Size (mm):
L11.5 ⌀2.5
Exch DC Plug 3627
Art. no:
131122
Size (mm):
L14 ⌀6.2/1.97
Exch DC Plug 3630
Art. no:
131119
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3630A
Art. no:
131192
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3635
Art. no:
131121
Size (mm):
L9 ⌀3.8/1.3
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
