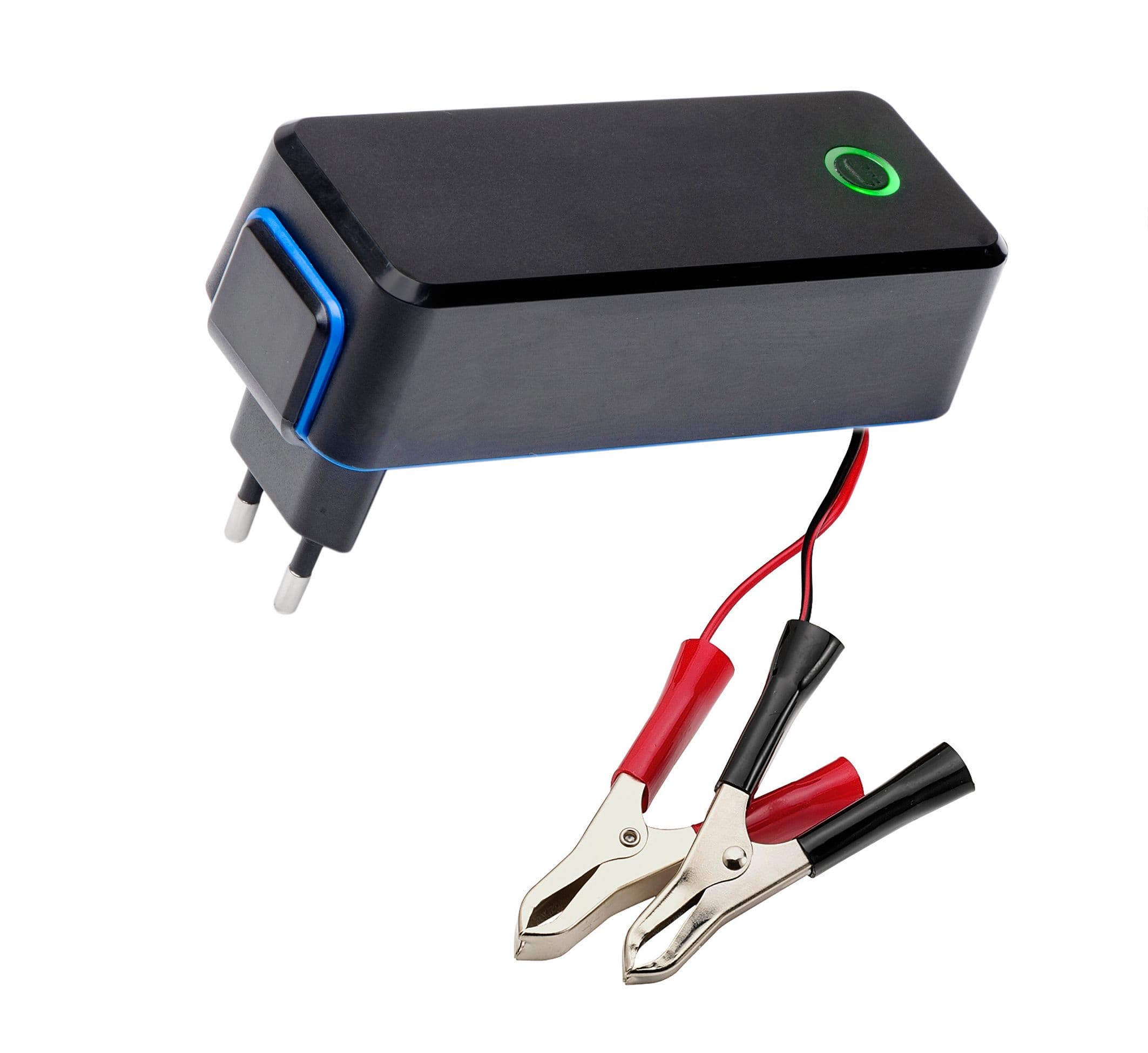

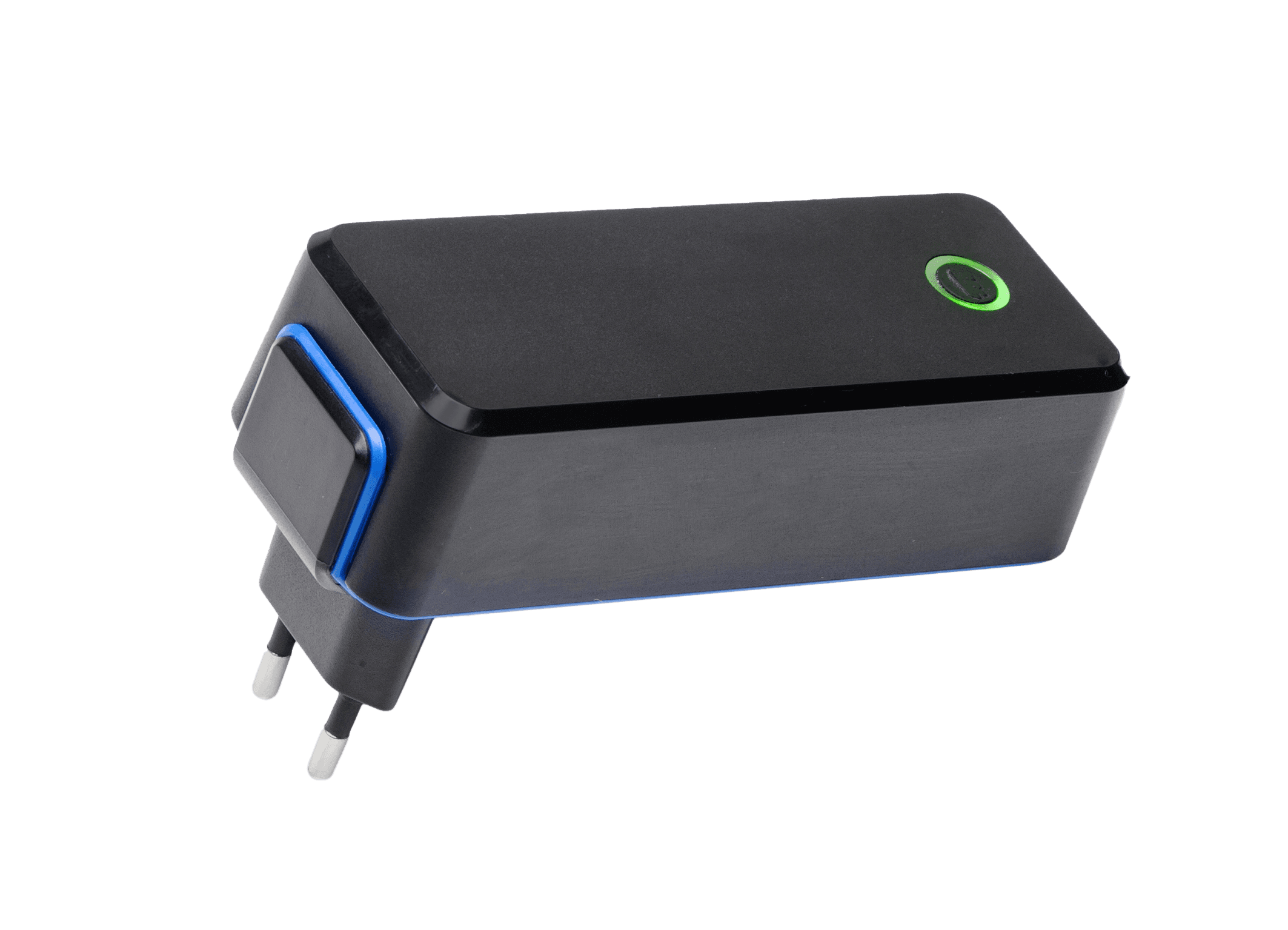

3546 LA

Plug-in charger Lead Acid batt. max. 2A

Product Information

3-step charge control with current detection
Universal input voltage
Configurable (CBC toolkit)
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out

Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
• Household safety, EN 60335-1 & -2-29 (6V, 12V, 18V and 24V)
EMC:
• EN 60601-1-2 ed. 4

Custom specifications on request

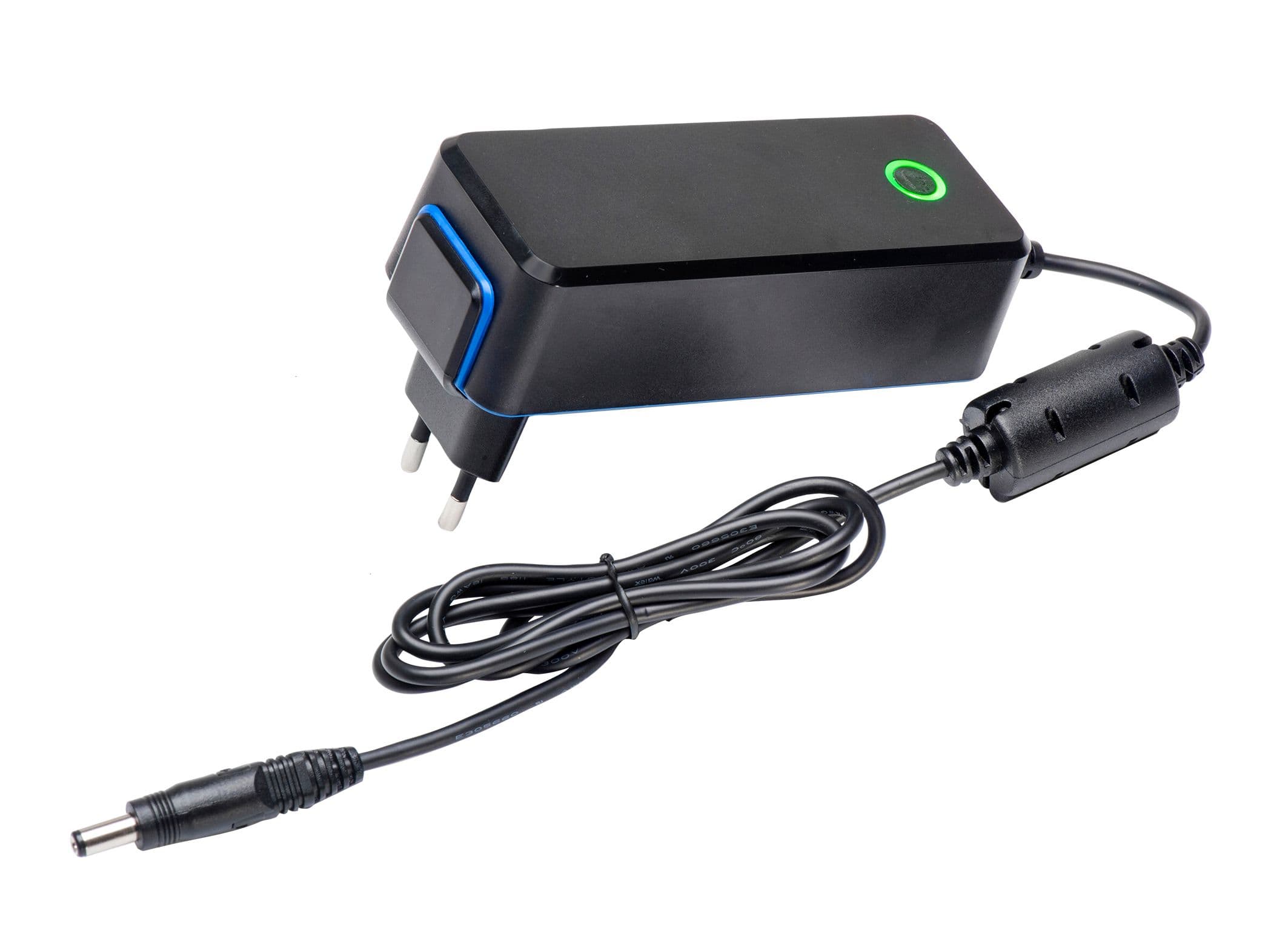

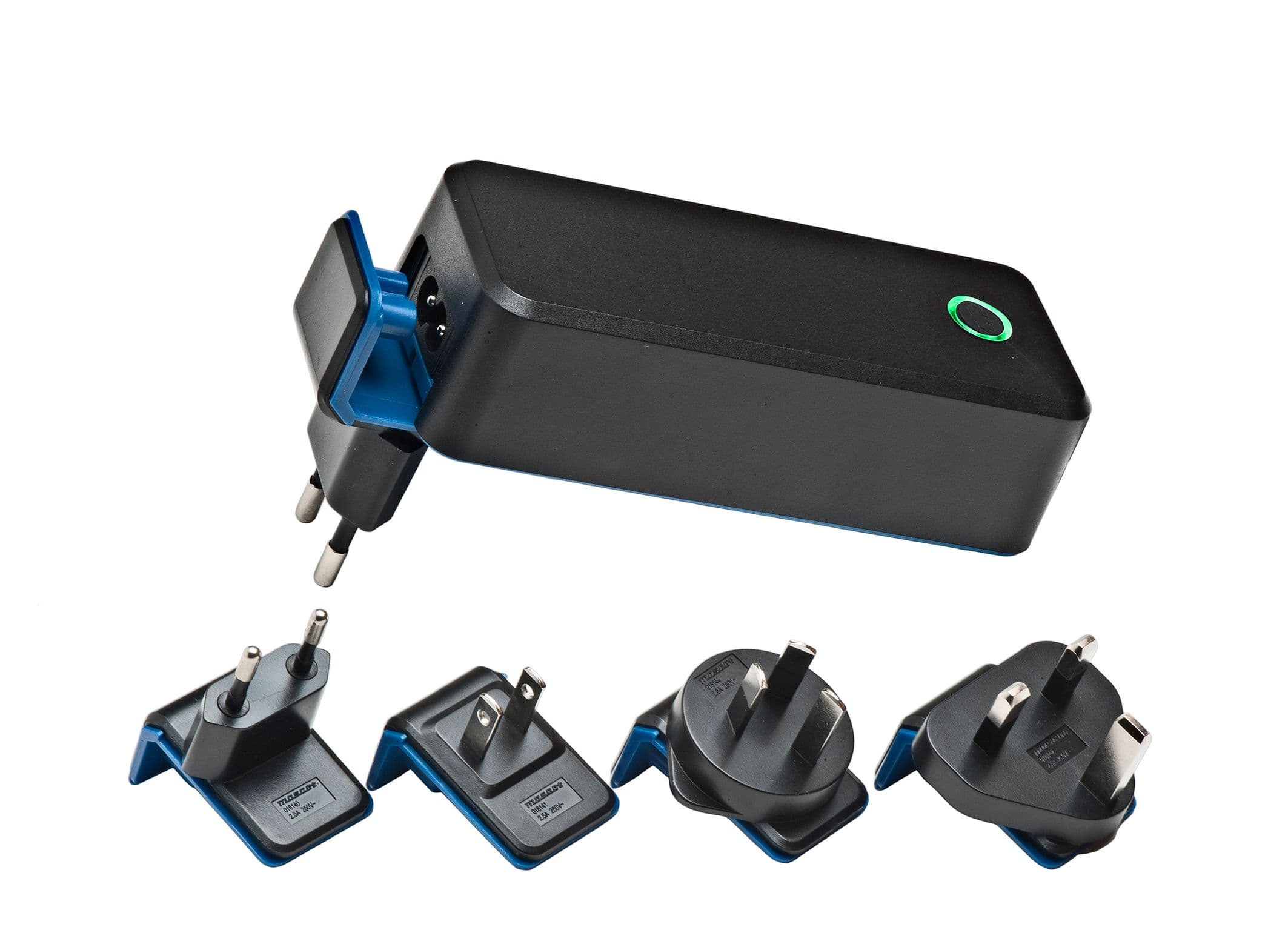

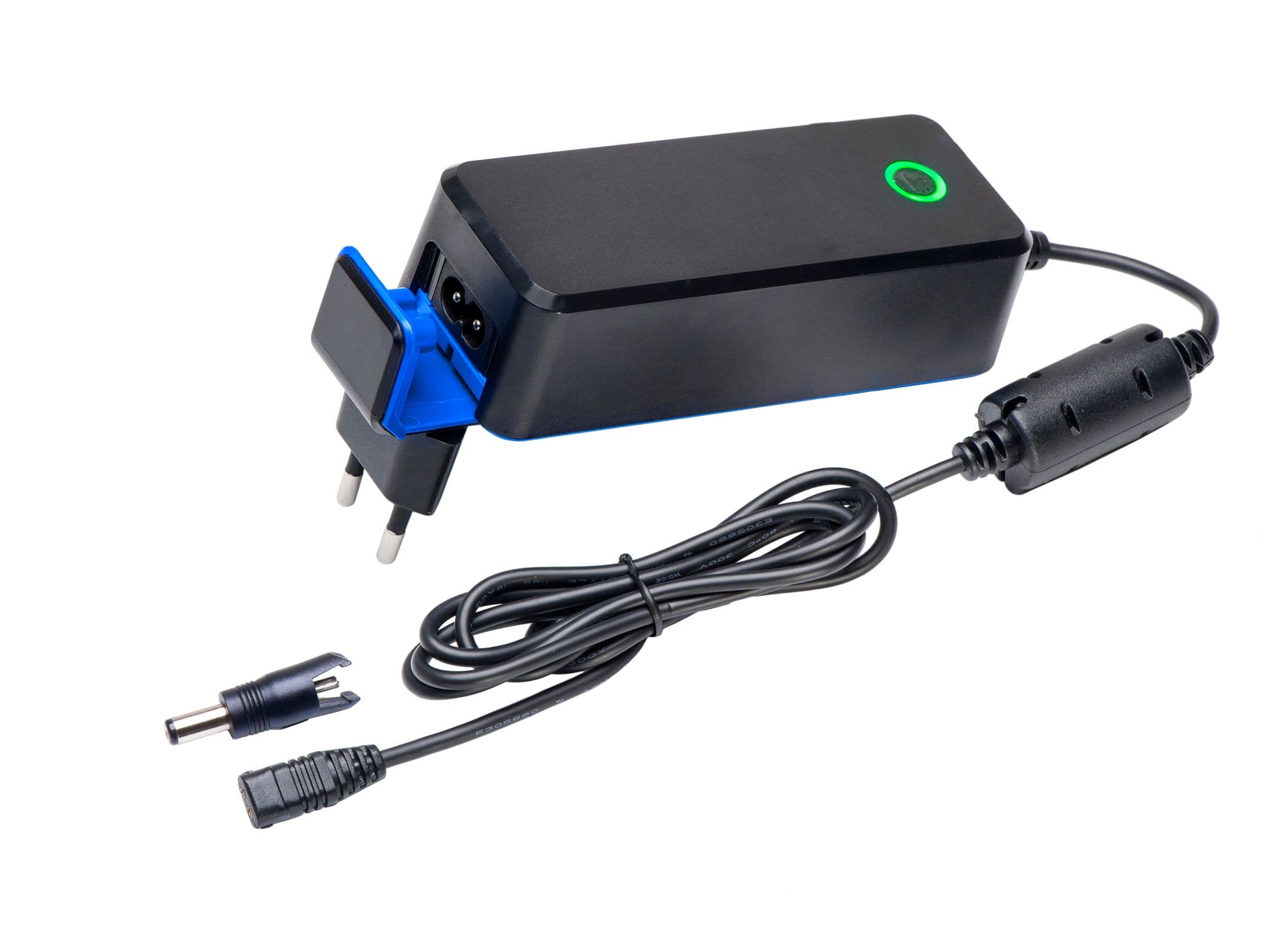

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings, including:
Timers, Charge voltages (if PTC is not used), Temperature limits (if PTC is used), Cut-off current level, Compensation Voltage level if there is a diode in series with the charger, Enable/disable pulsed float charge or setting charger as float charge only.
The CBC is also configurable in field.

In addition, the ten latest charge cycles may be read using CBC tool or separate Log Reader Software.

For more information, see: CBC Config module LA
