Charge guide Li-Ion method D
3743 LI
Plug-in charger Li-Ion batt. max. 1,5A
Product Information
3-step charge control with current detection
Universal input voltage
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: Against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out

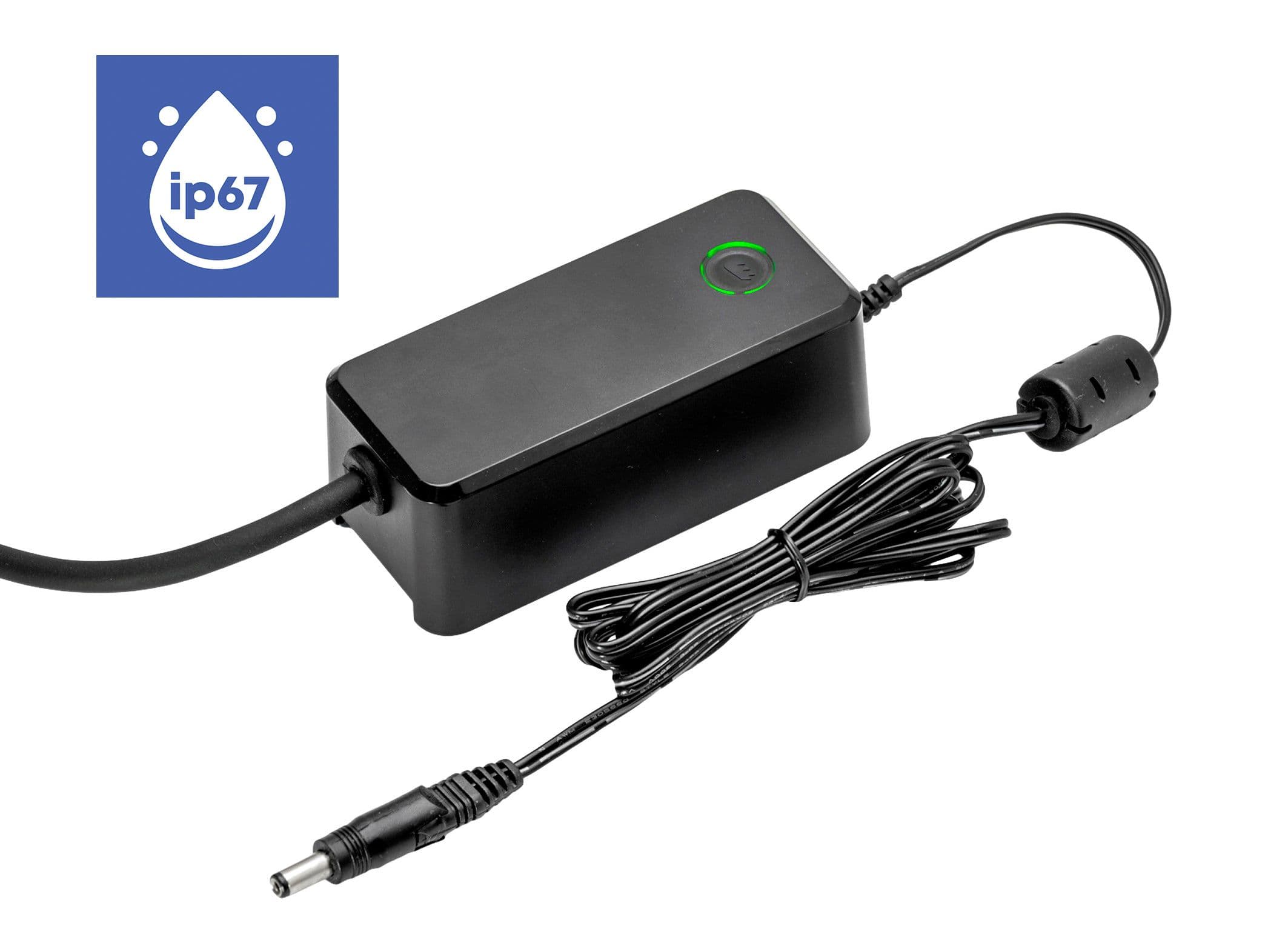

Waterproof (IP67) version available
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Available versions
* On request- 1-cell Li-Ion
- 2-cell Li-Ion
- 3-cell Li-Ion
- 4-cell Li-Ion
- 5-cell Li-Ion
- 6-cell Li-Ion *
- 7-cell Li-Ion
- 8-cell Li-Ion *
- 9-cell Li-Ion *
- 10-cell Li-Ion *
- 11-cell Li-Ion *
- 12-cell Li-Ion *
- 13-cell Li-Ion *
- 14-cell Li-Ion
Notes

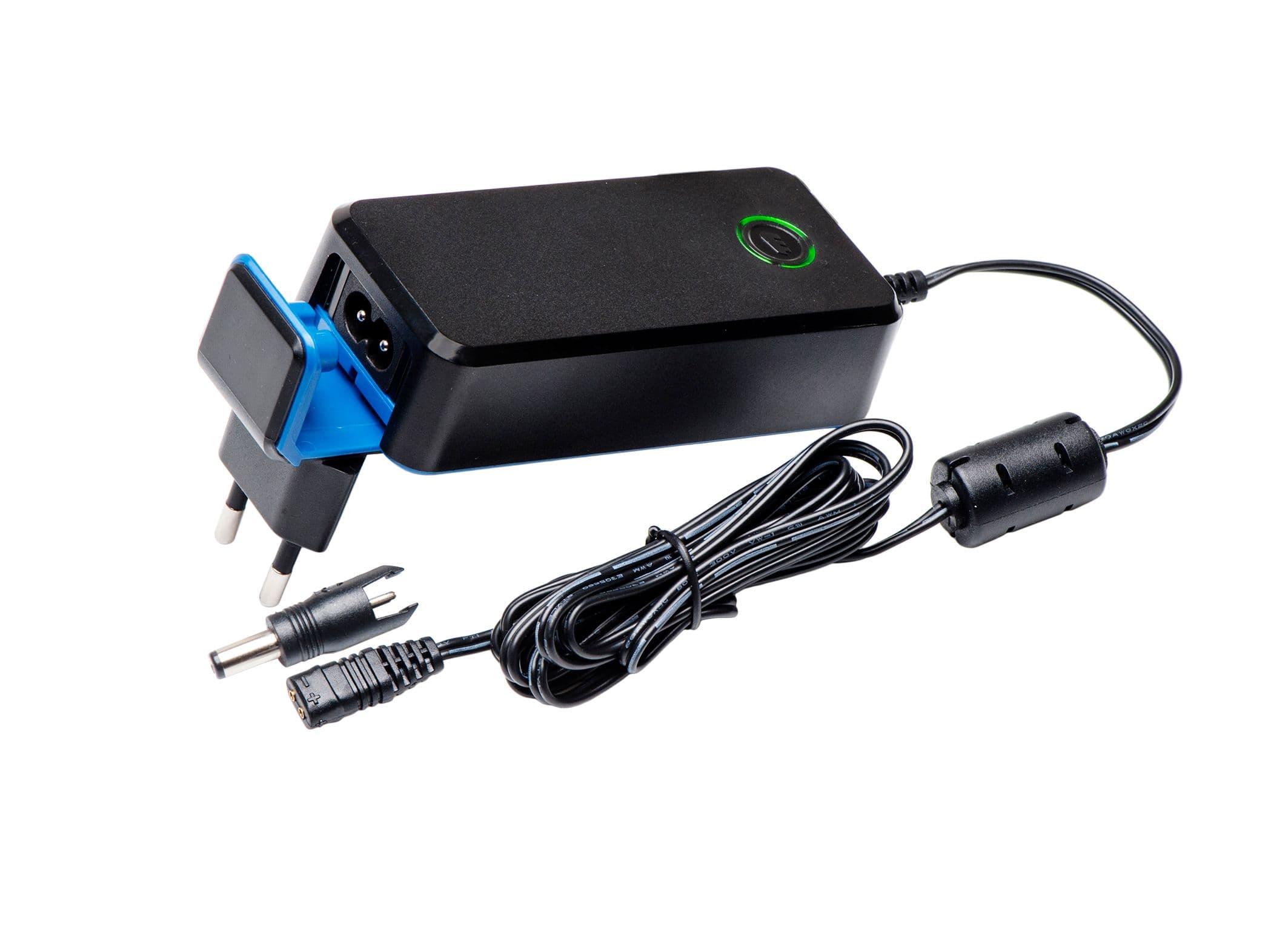

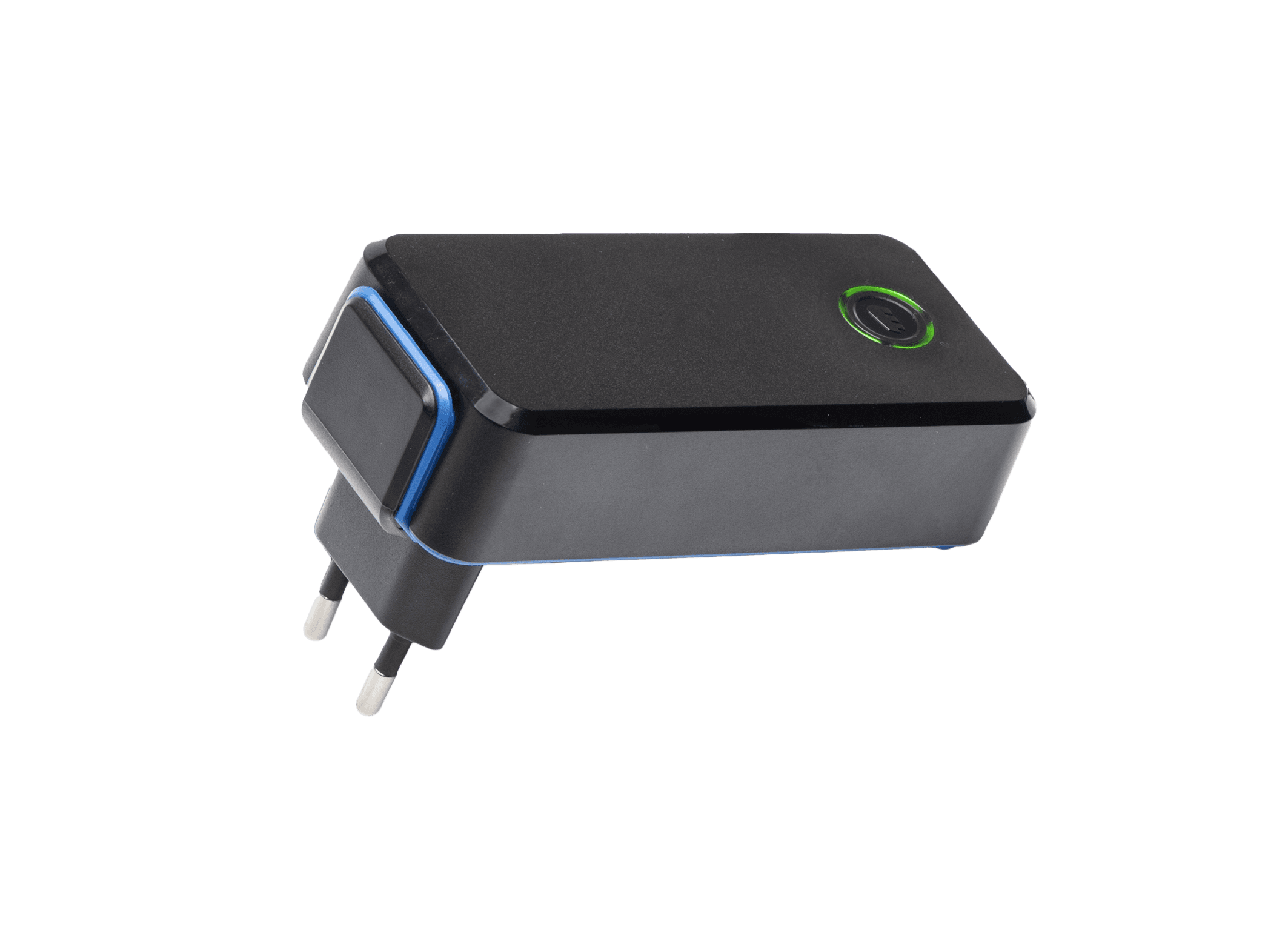

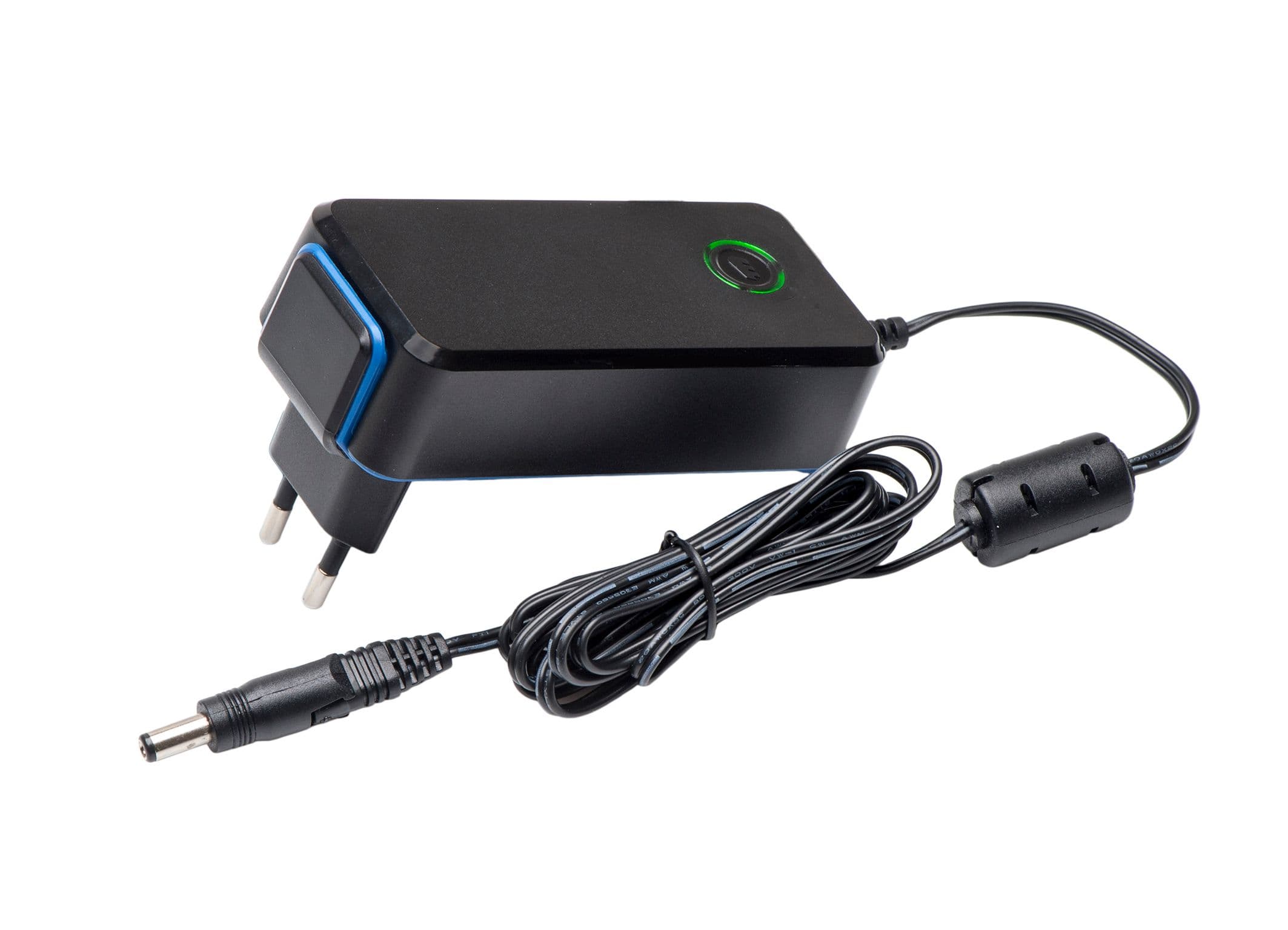

- Plug-in/Desktop unit

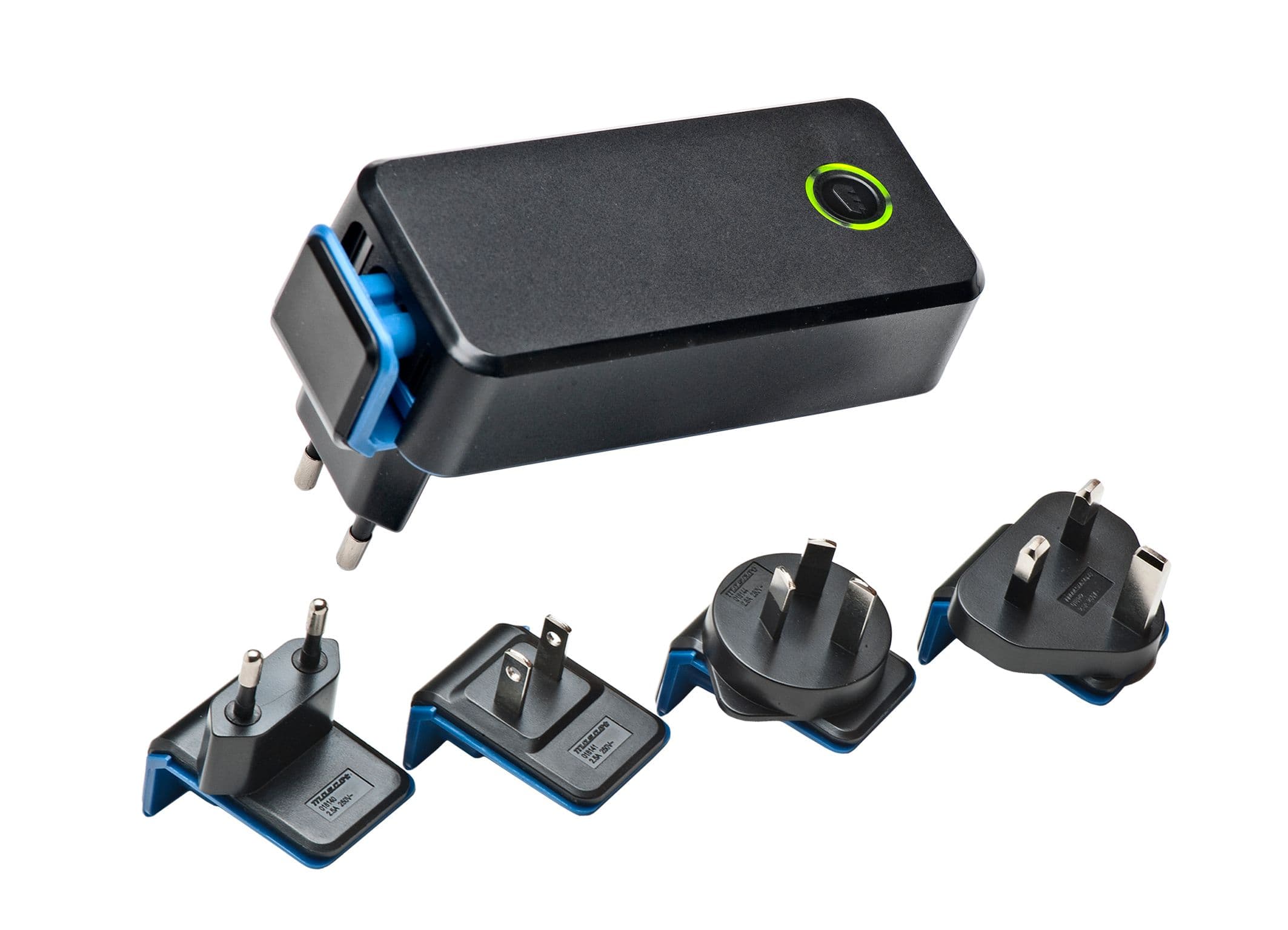

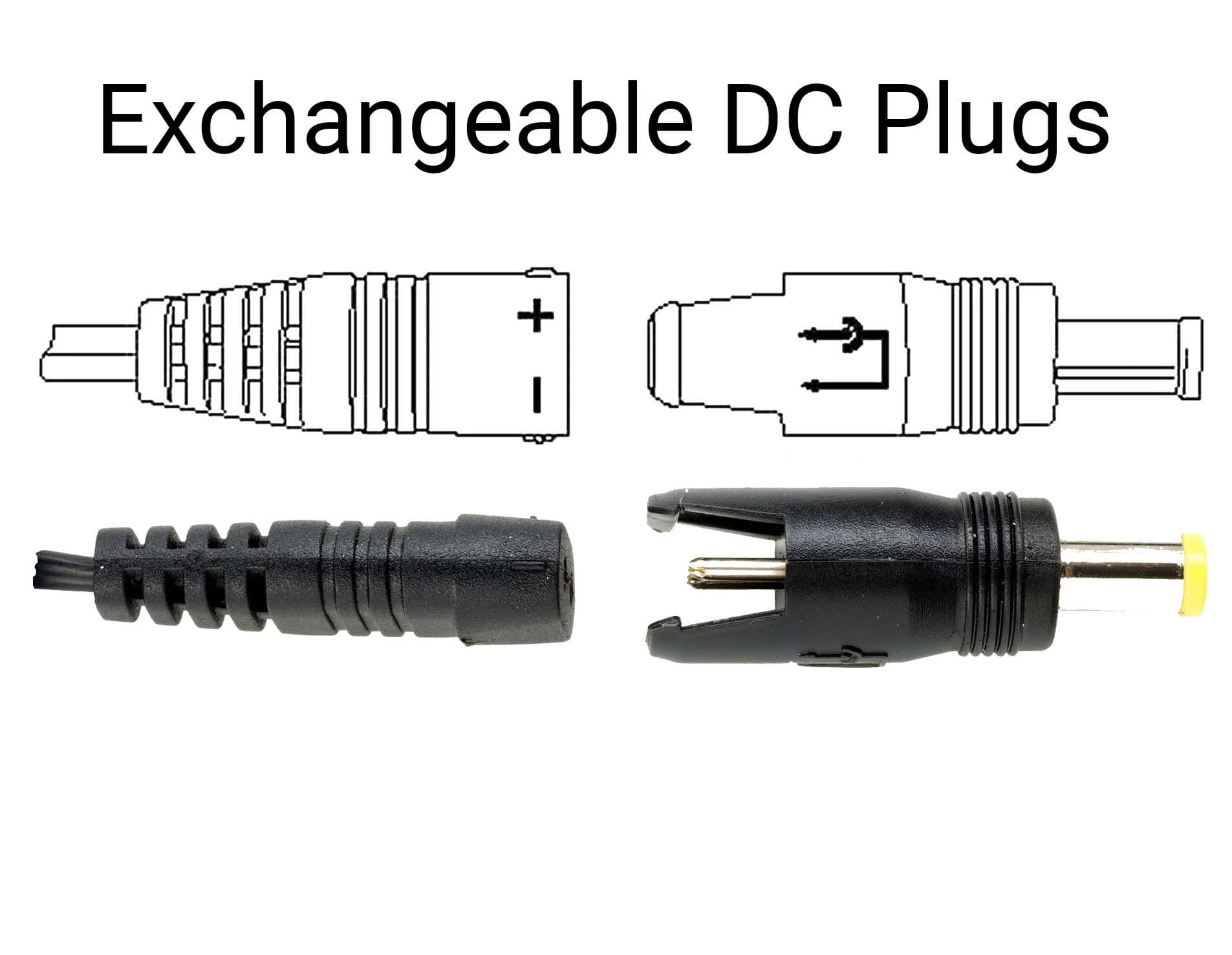

- Exchangeable AC and DC plugs available
- Standard DC output cord for exch. Plugs (1 cell) 0,75m Coax Inner=16AWG, Outer=18AWG, UL1185
- Standard DC output cord for exch. Plugs (2-14 cells) 1.8m twin 20AWG, EMI Core, UL2468
- Order plugs & mains cord separately
- With NTC input on request
- 2MOOP standard, 2MOPP available
- Animation showing charge error indications:
- https://vimeo.com/679995332

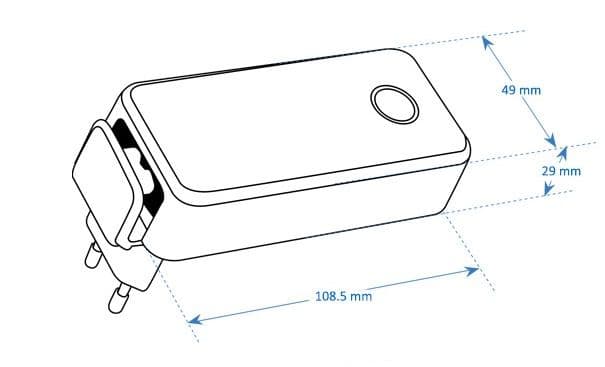

- IP67 weight: 490g, Dim. 108,5 x 49 x 42 mm
Accessories

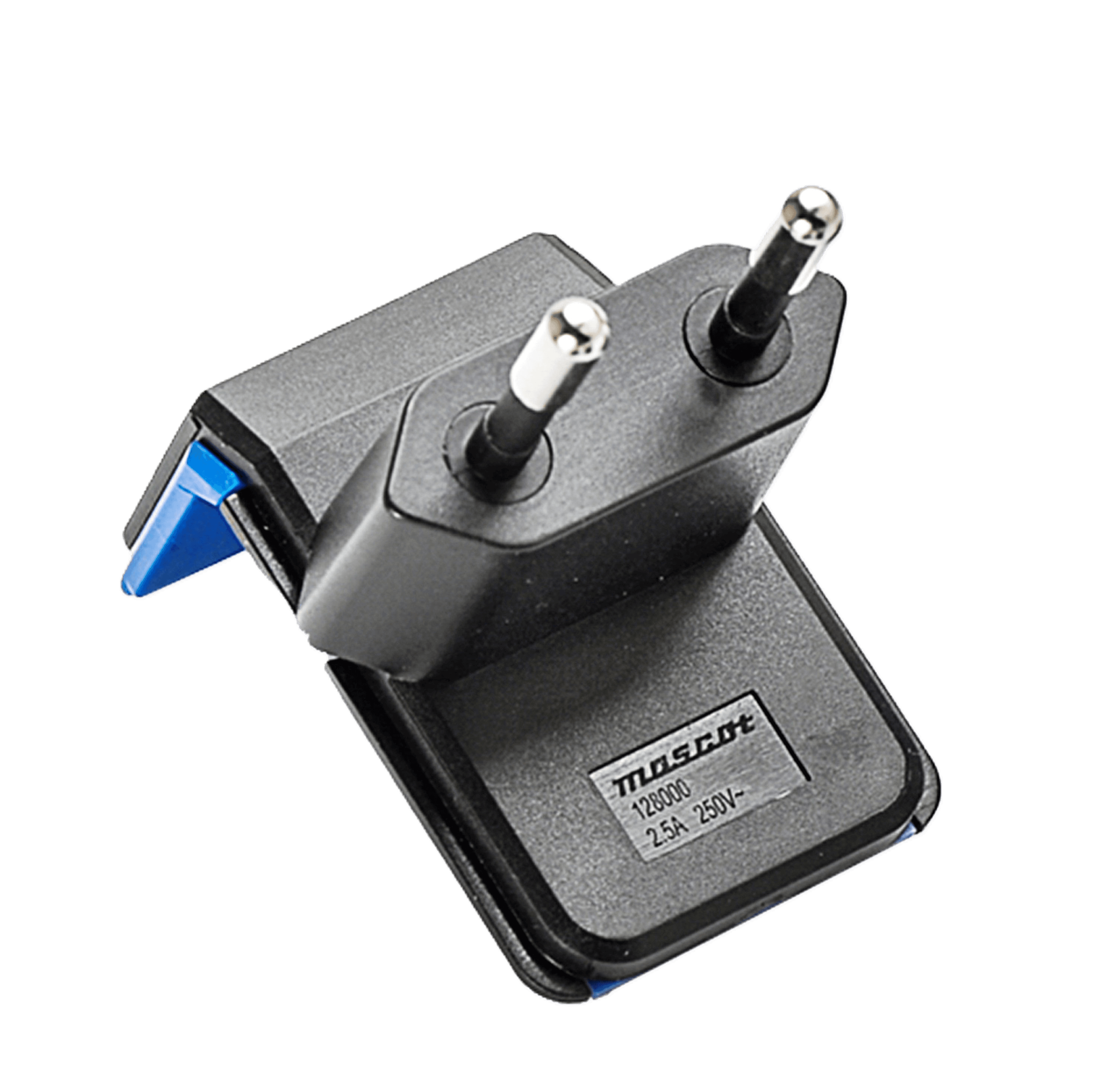

Exch AC Plug Blueline EU
Art. no:
128000

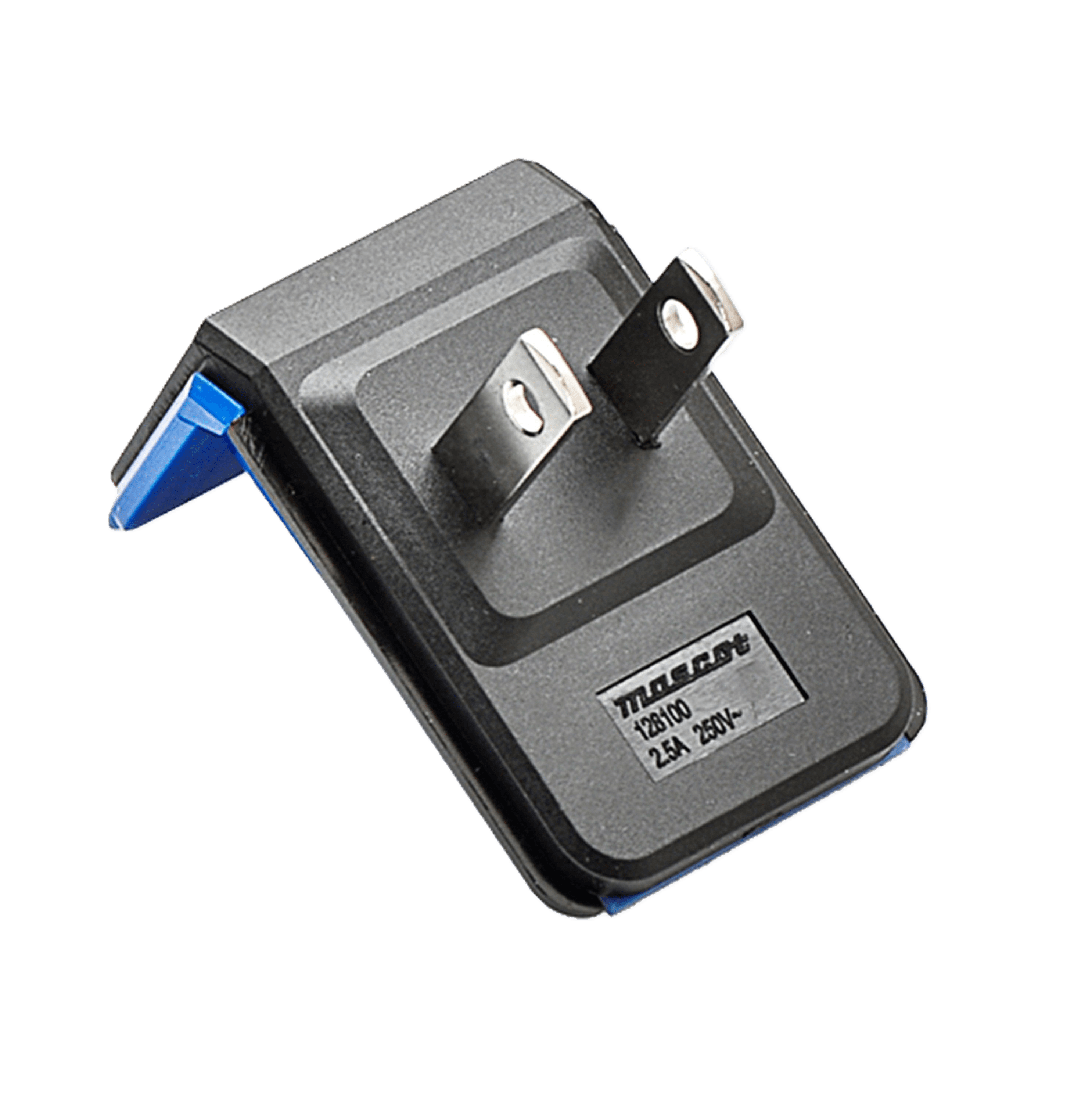

Exch AC Plug Blueline US
Art. no:
128100

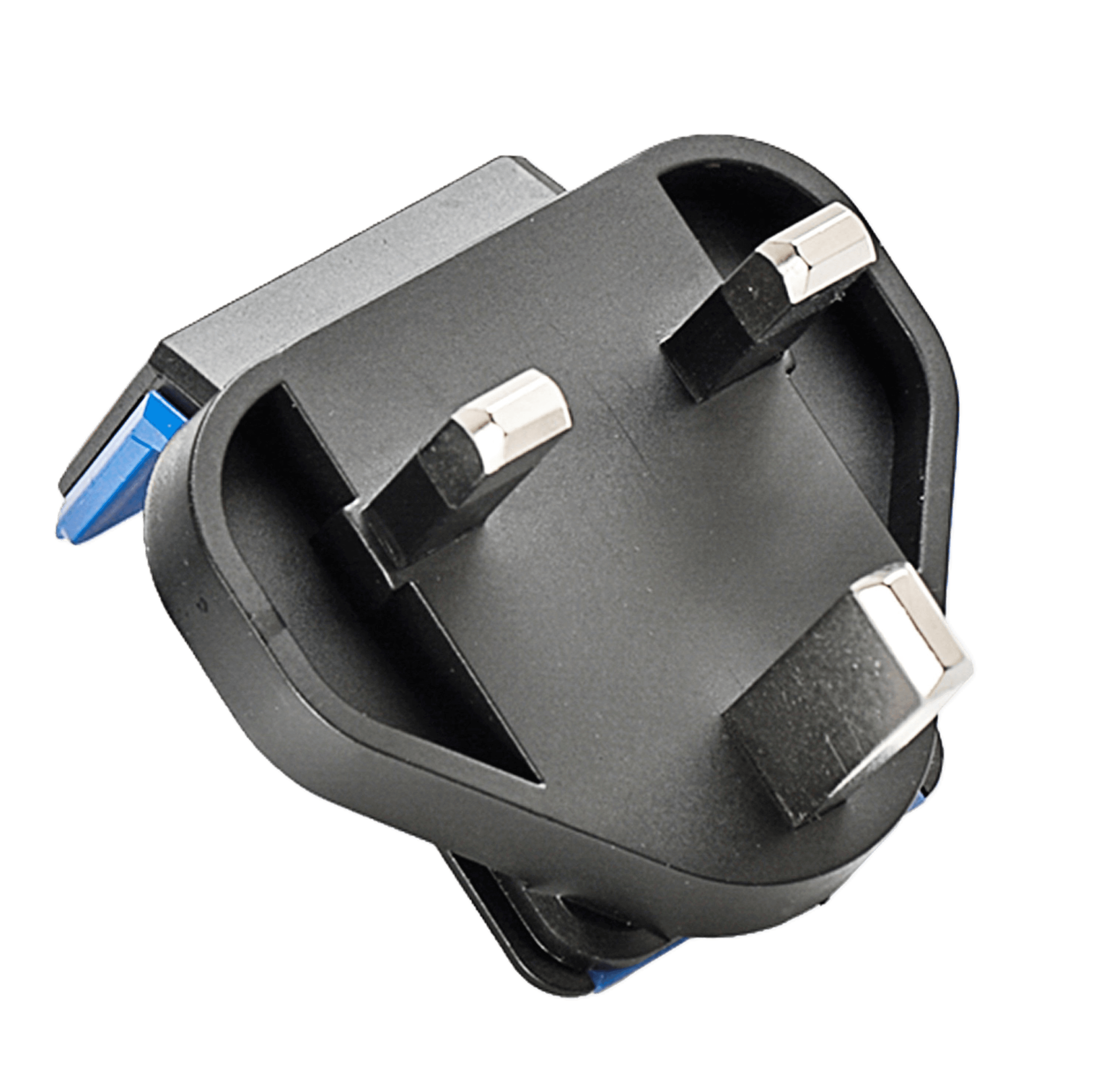

Exch AC Plug Blueline UK
Art. no:
128200

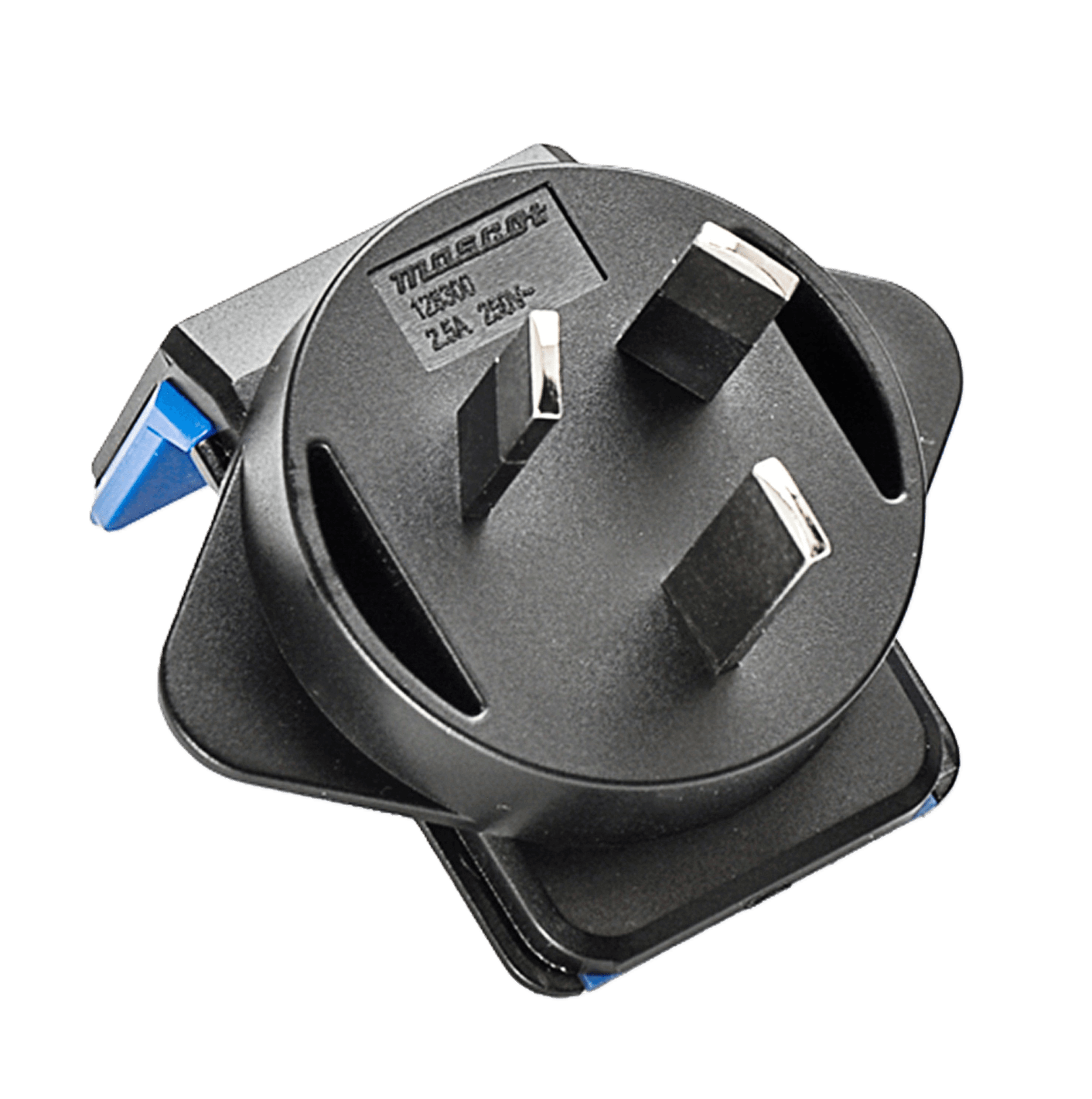

Exch AC Plug Blueline AUS
Art. no:
128300

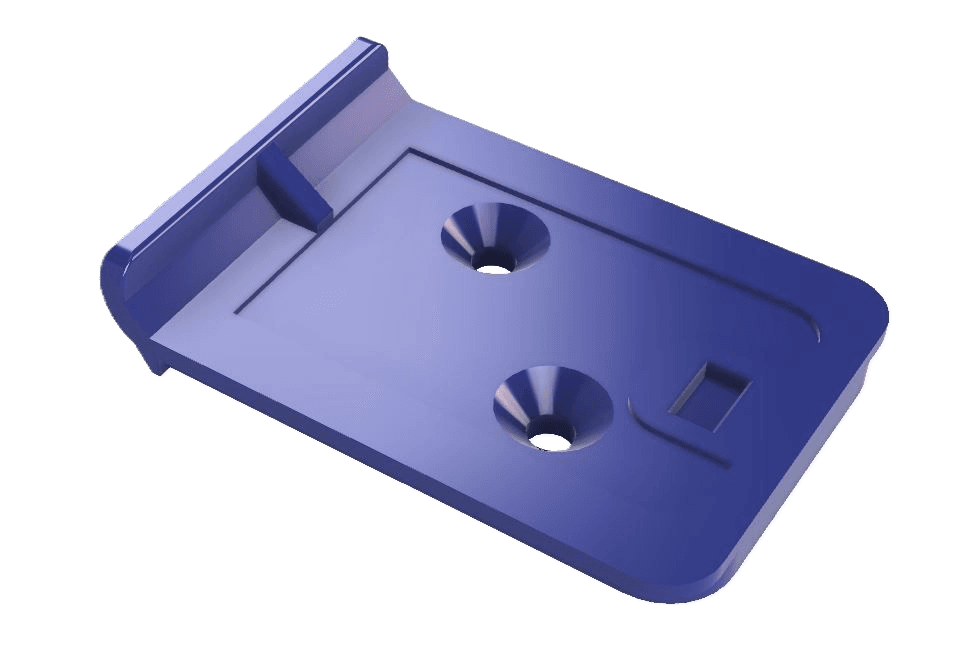

Wall Mount Bracket Exch AC Plug Blueline
Art. no:
127400

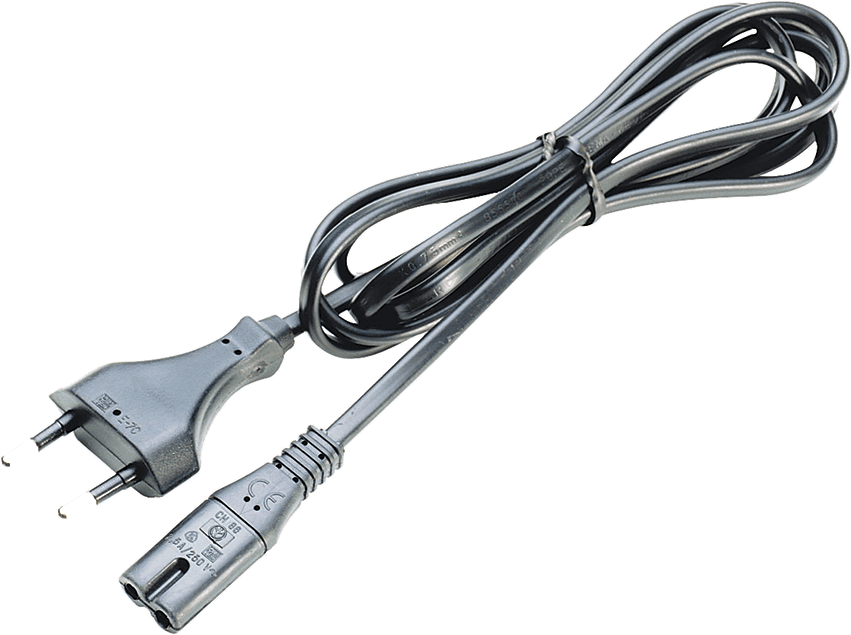

AC Cord 2-pin IEC 60320 EU
Art. no:
131306

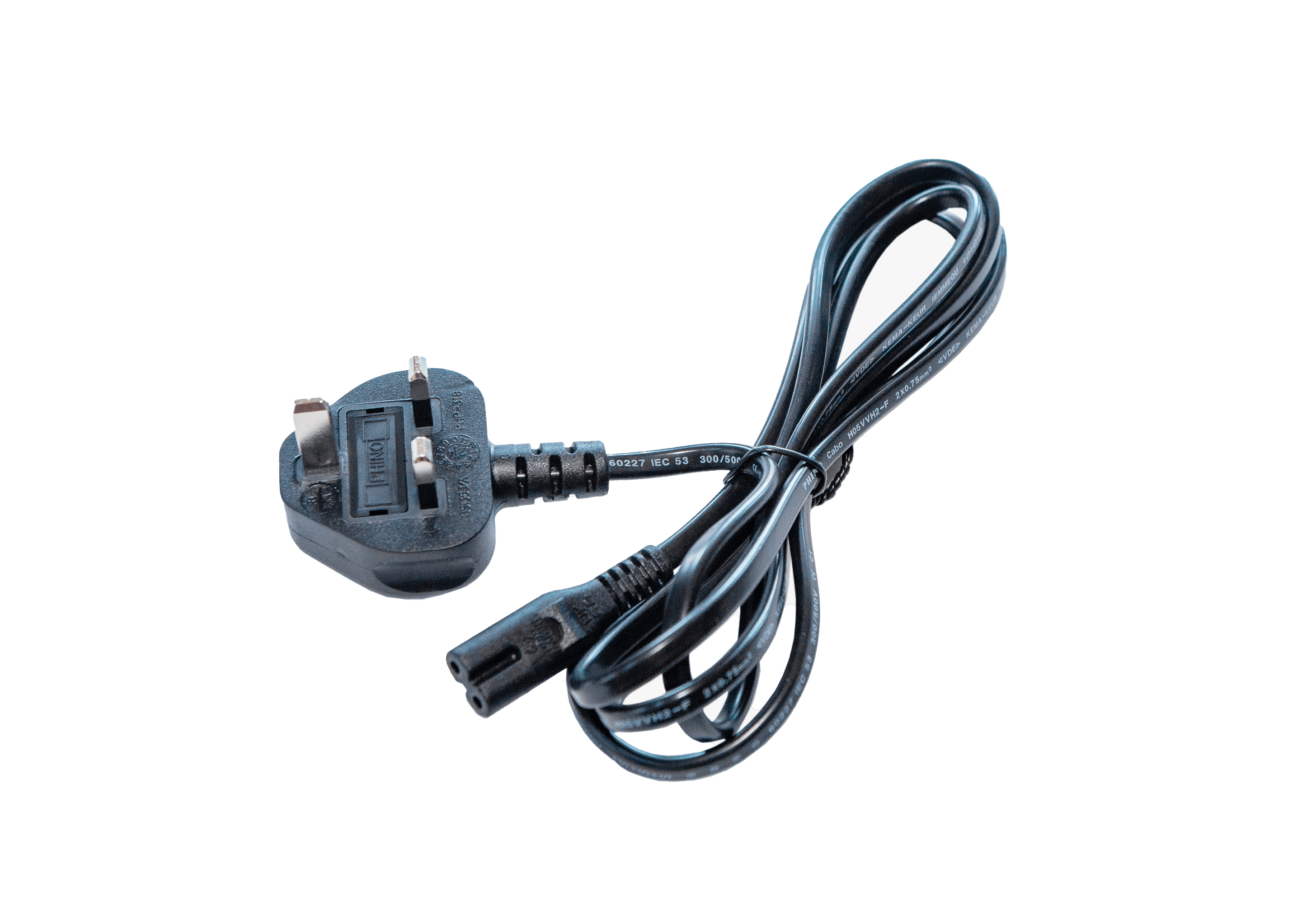

AC Cord 2-pin IEC 60320 UK
Art. no:
131148

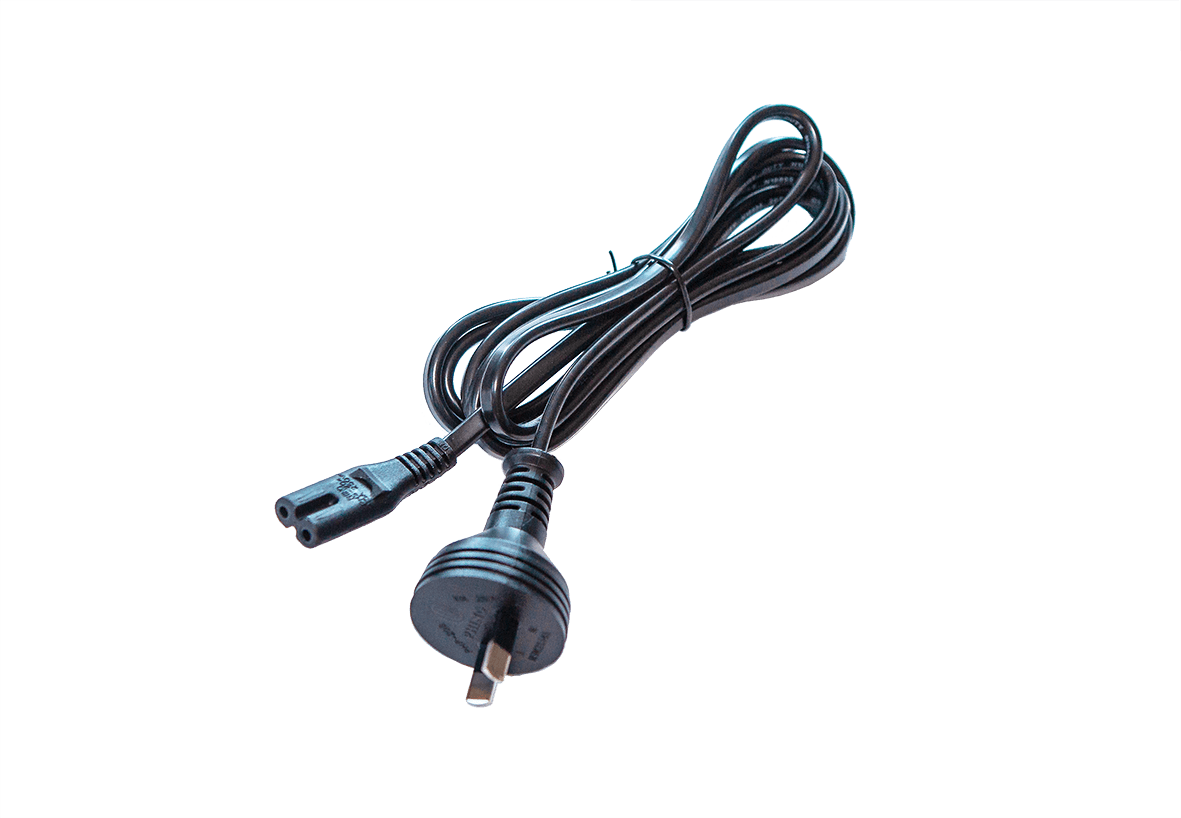

AC Cord 2-pin IEC 60320 AUS
Art. no:
013108

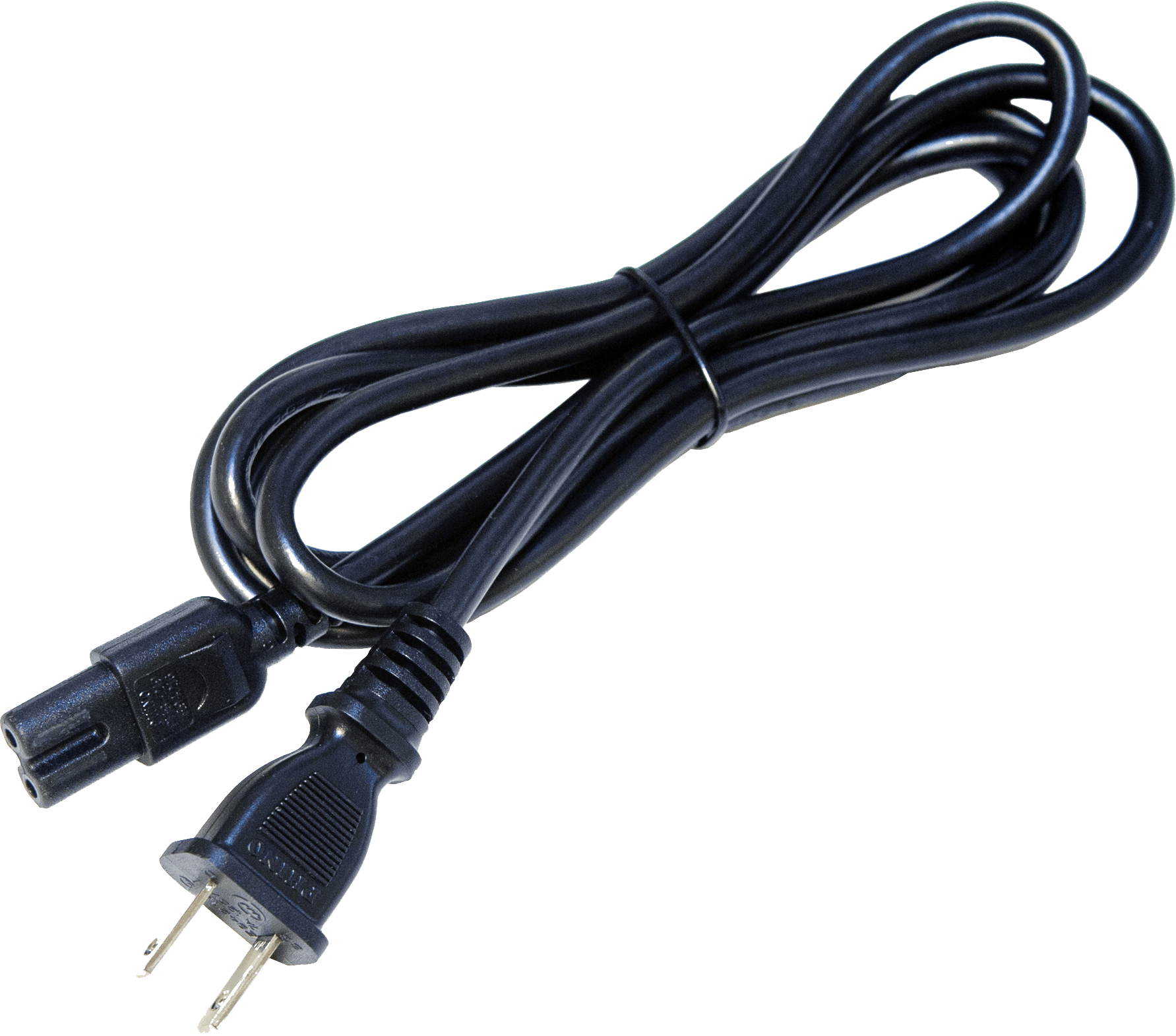

AC Cord 2-pin IEC 60320 US_
Art. no:
131368

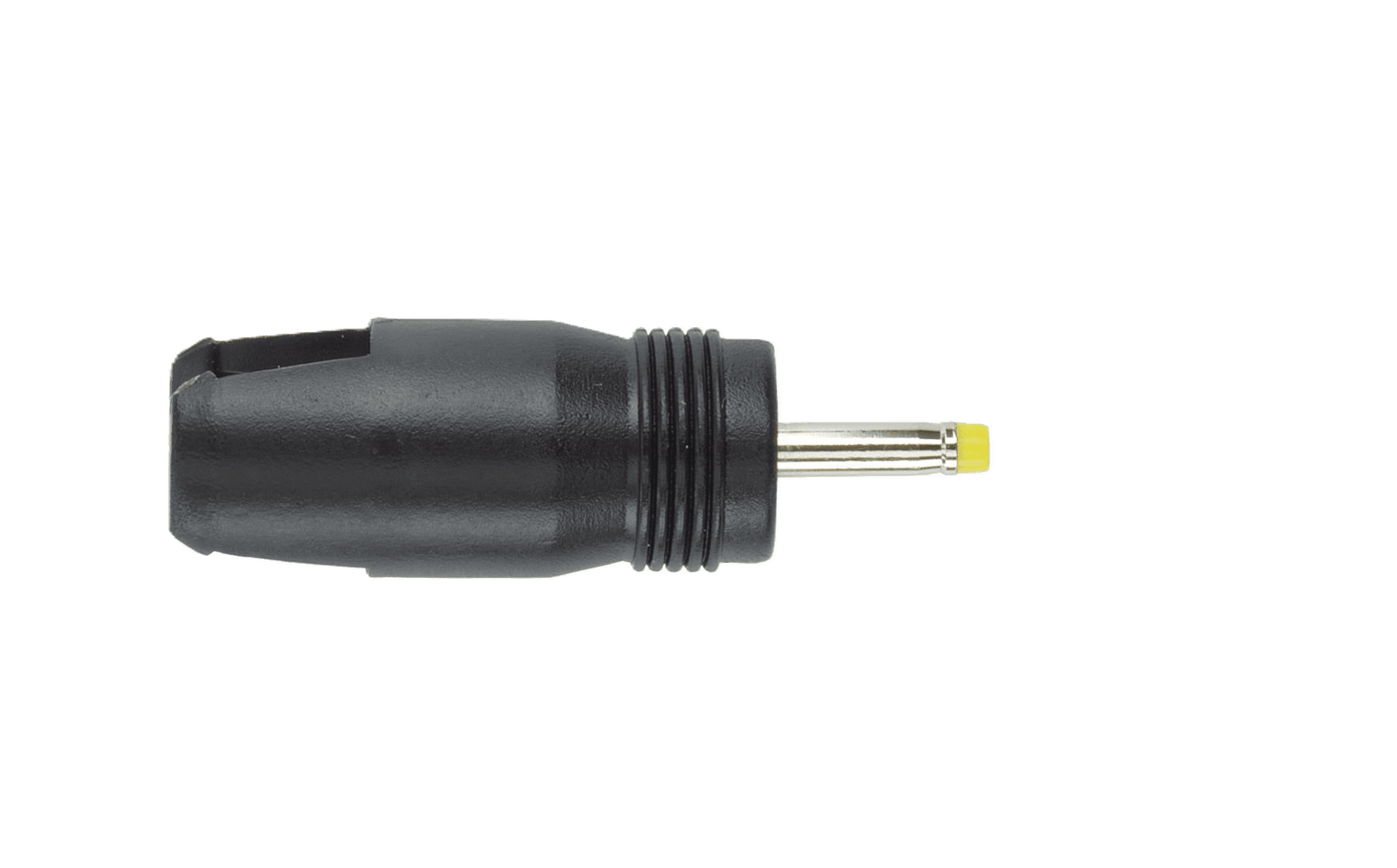

Exch DC Plug EIAJ 53201
Art. no:
131125
Size (mm):
L9.5 ⌀2.35/0.7
Exch DC Plug EIAJ 53202
Art. no:
131126
Size (mm):
L9.5 ⌀4/1.7
Exch DC Plug EIAJ 53203
Art. no:
131127
Size (mm):
L9.5 ⌀4.75/1.7

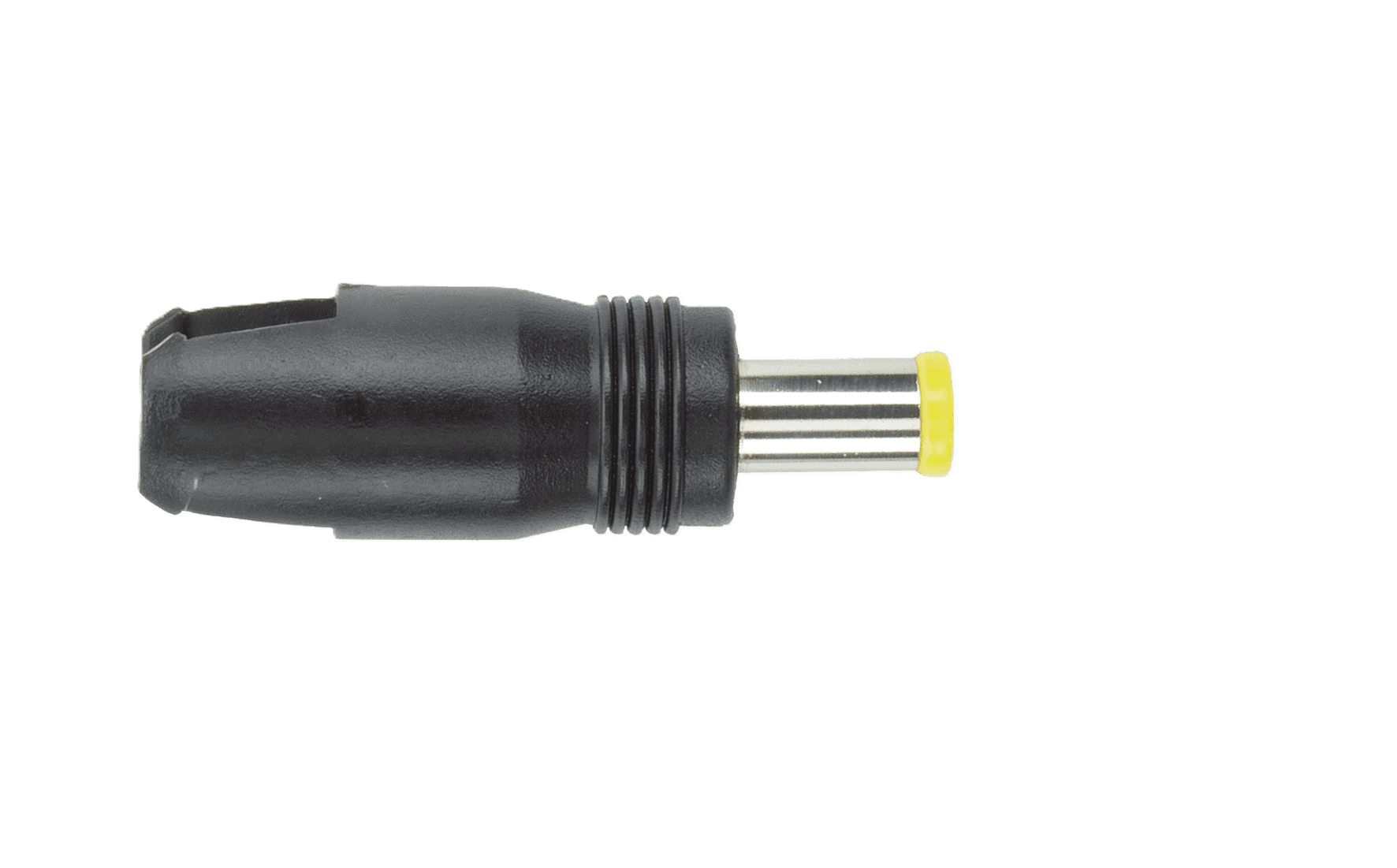

Exch DC Plug EIAJ 53204
Art. no:
131128
Size (mm):
L9.5 ⌀5.5/3.3

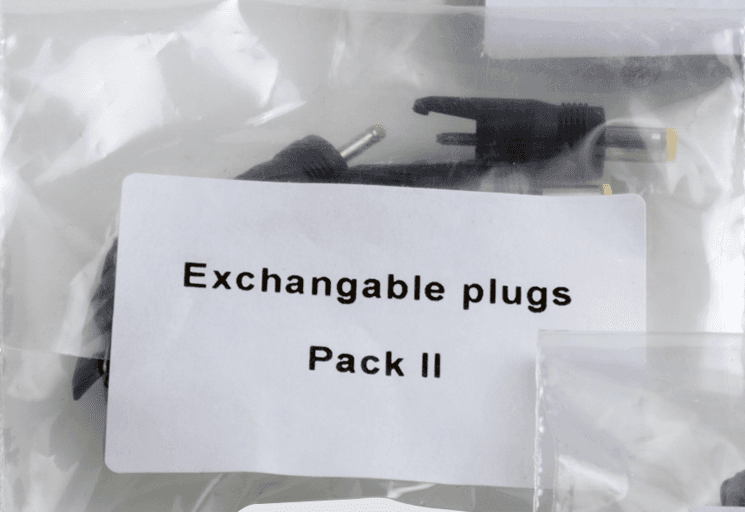

Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201

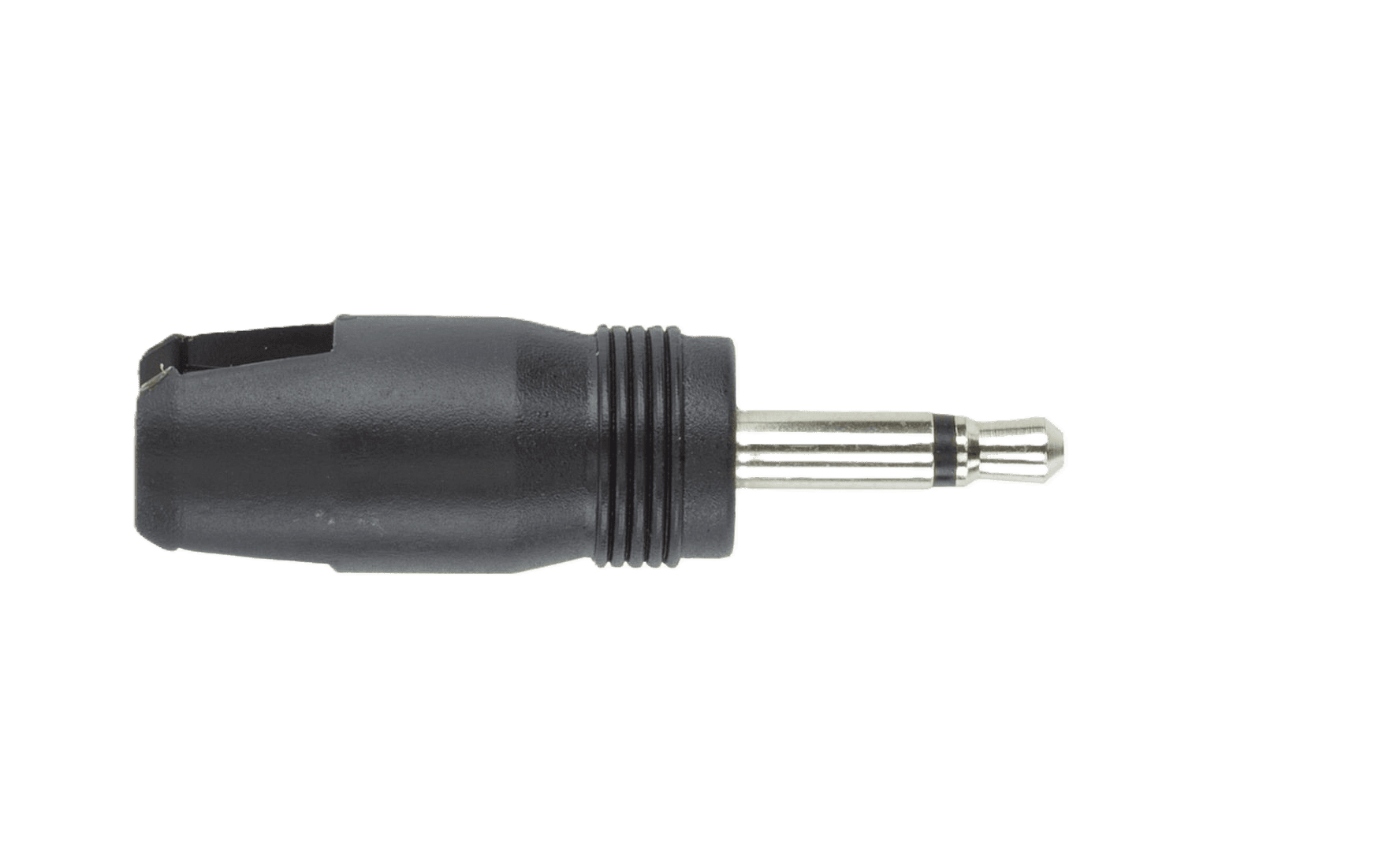

Exch DC Plug 3615
Art. no:
131123
Size (mm):
L14.5 ⌀3.5

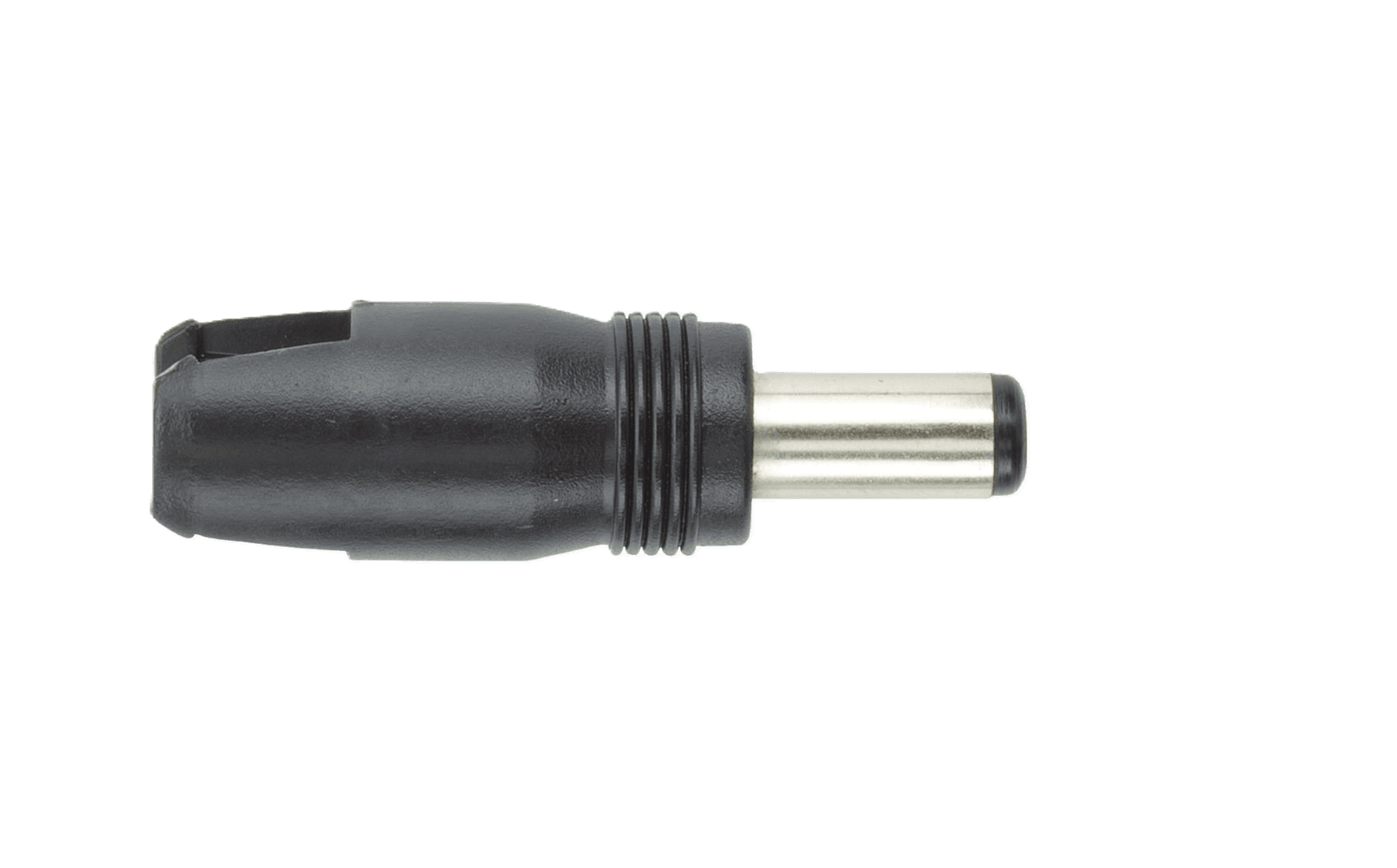

Exch DC Plug 3617
Art. no:
131120
Size (mm):
L12 ⌀5.5/2.5

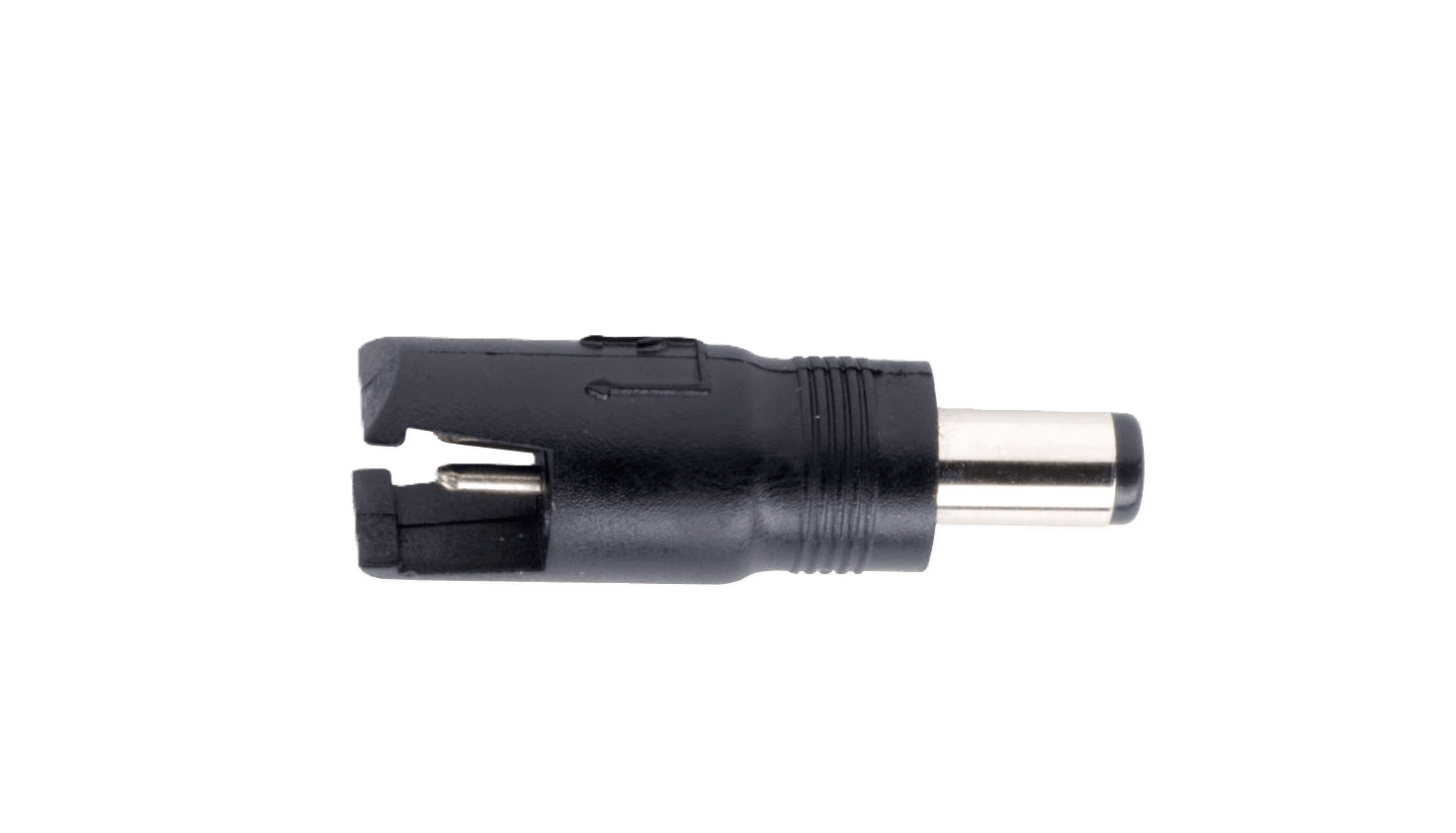

Exch DC Plug 3618
Art. no:
131193
Size (mm):
L9.3 ⌀5.5/2.45

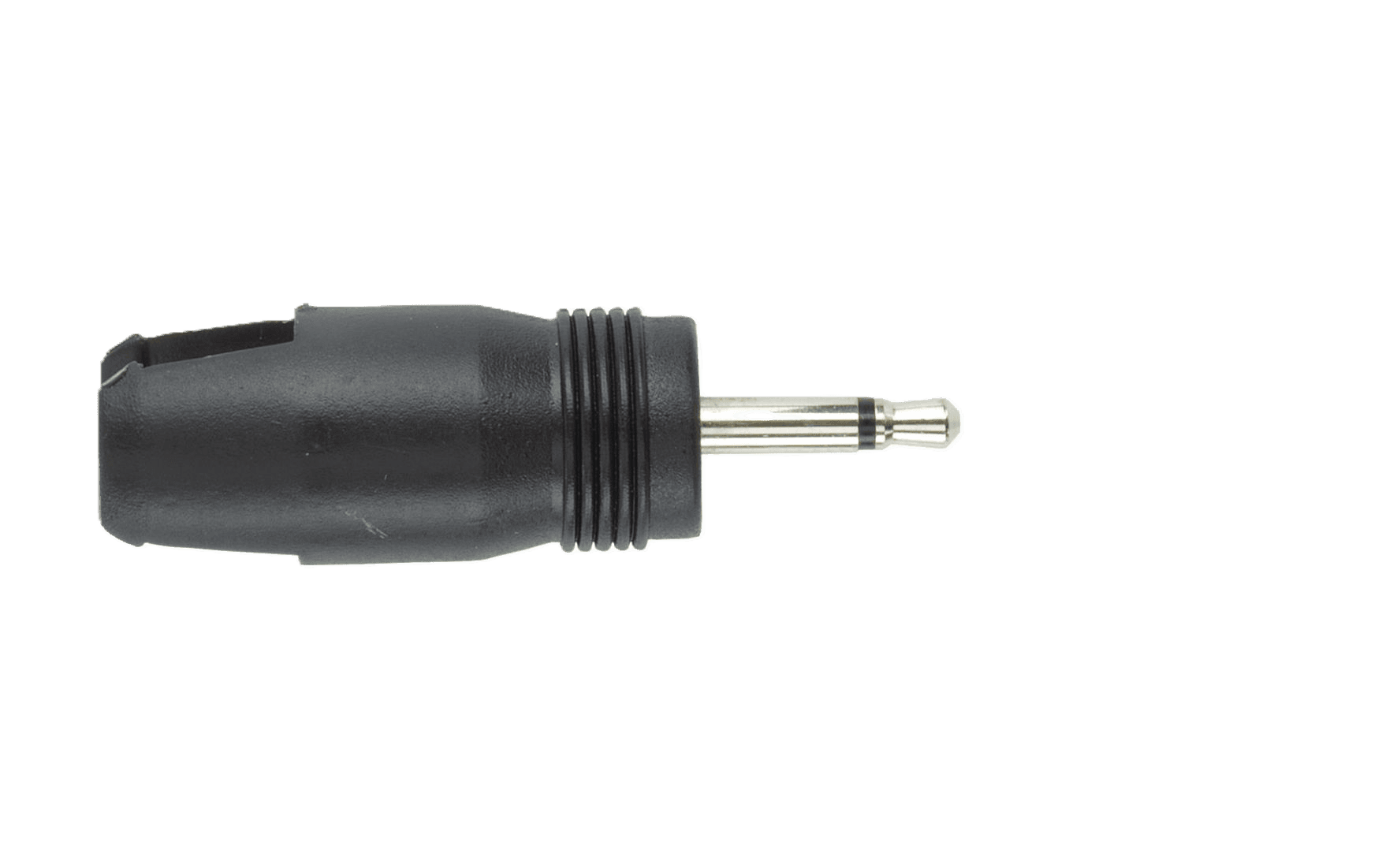

Exch DC Plug 3620
Art. no:
131124
Size (mm):
L11.5 ⌀2.5

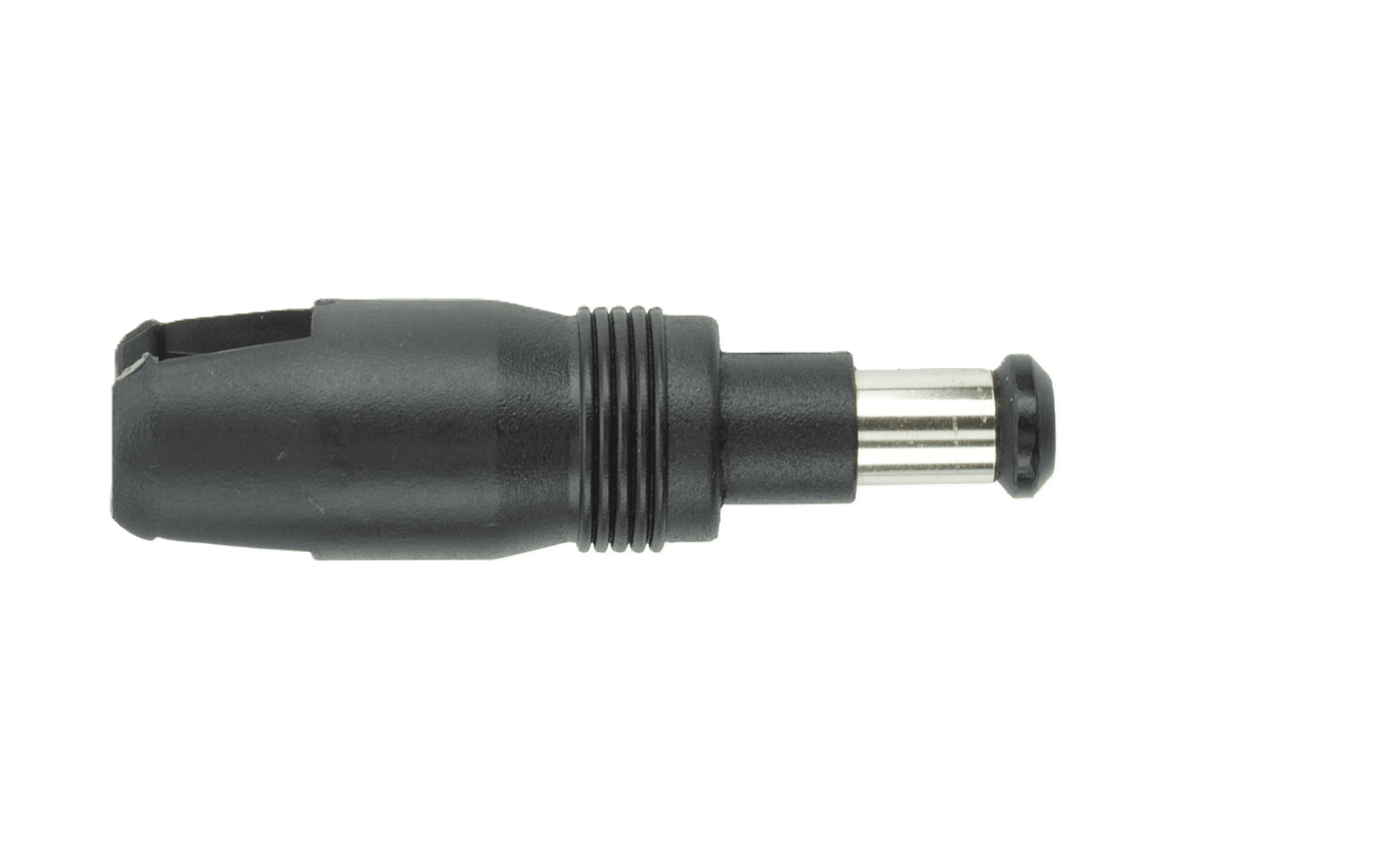

Exch DC Plug 3627
Art. no:
131122
Size (mm):
L14 ⌀6.2/1.97

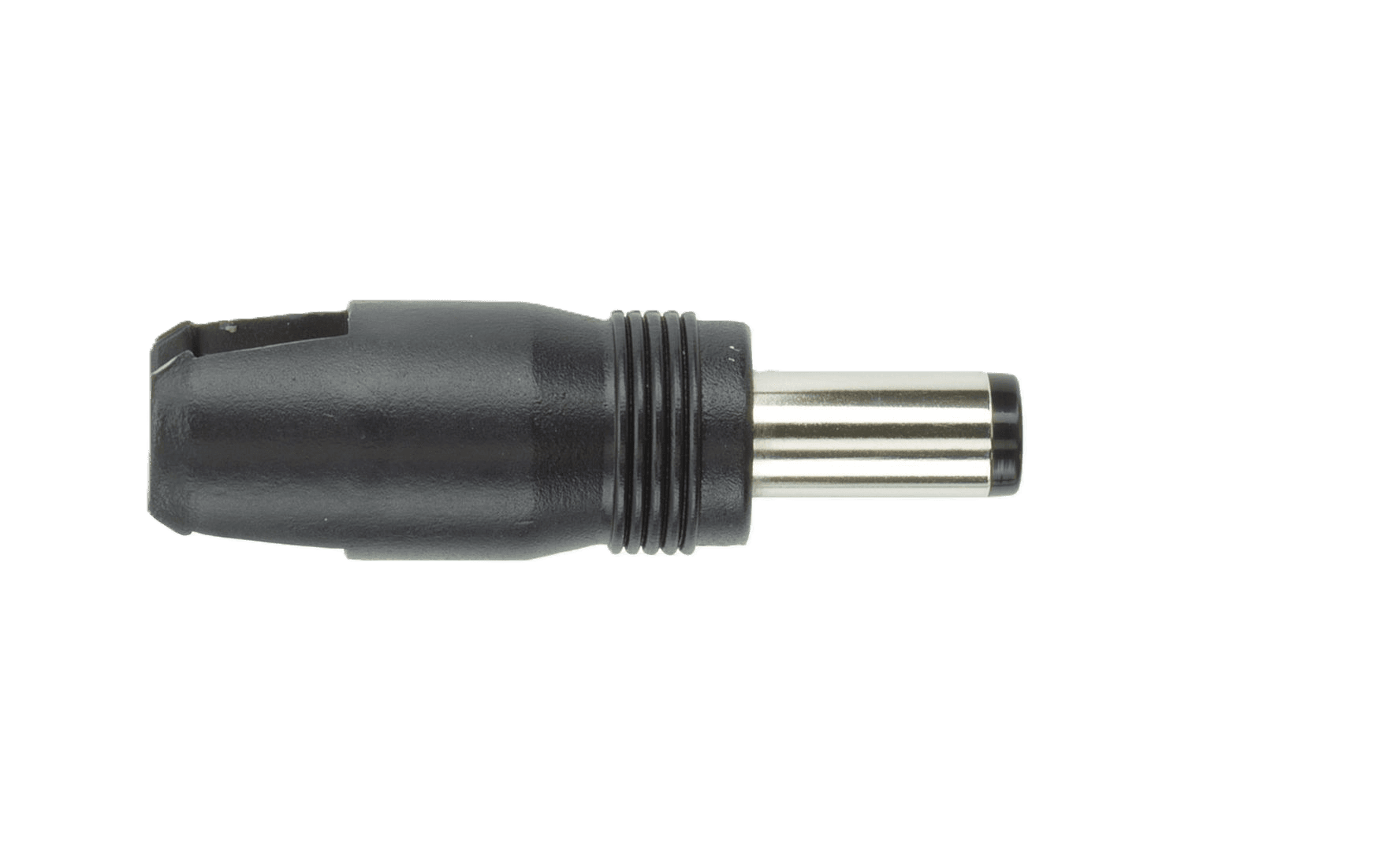

Exch DC Plug 3630
Art. no:
131119
Size (mm):
L12 ⌀5.5/2.1

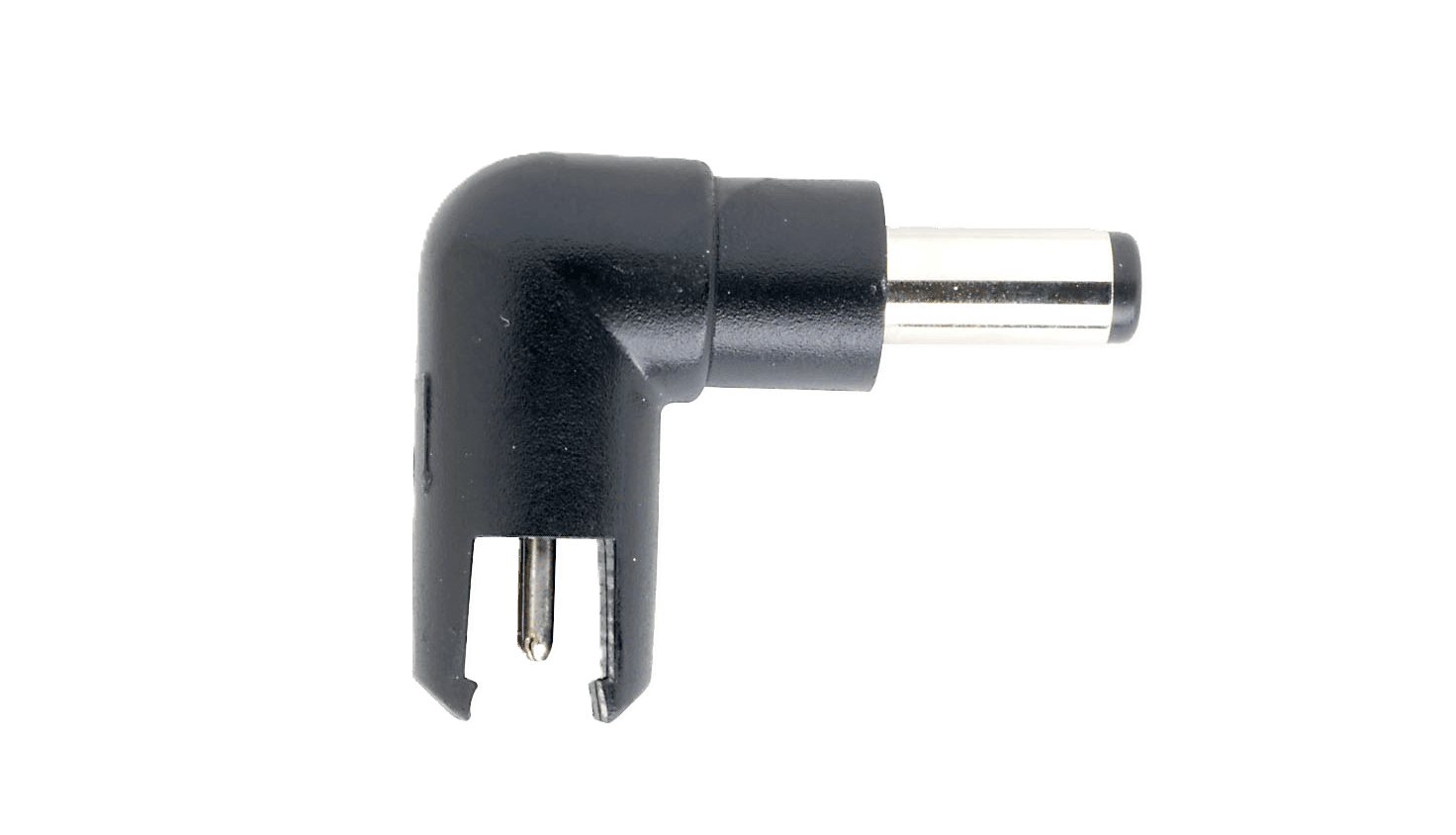

Exch DC Plug 3630A
Art. no:
131192
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3635
Art. no:
131121
Size (mm):
L9 ⌀3.8/1.3

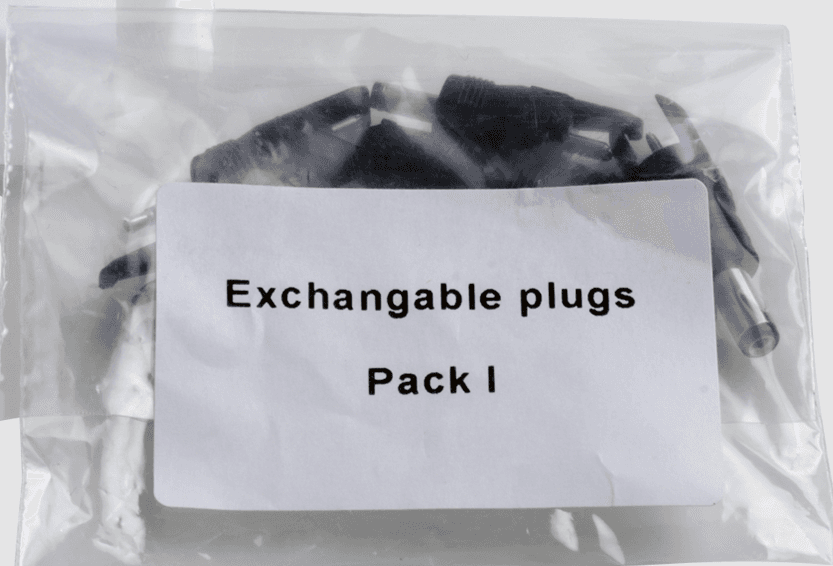

Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201

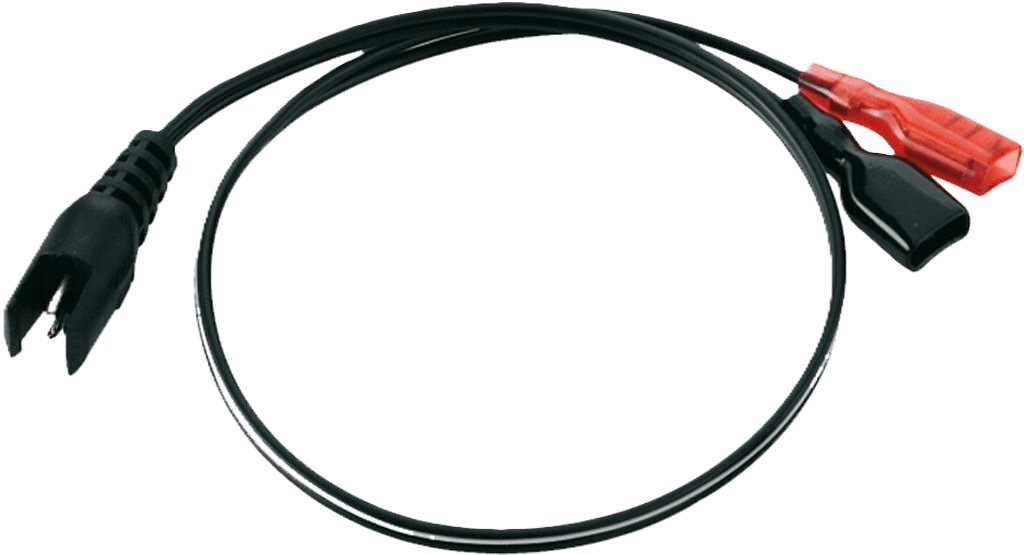

Exch DC Push on terminal 131341
Art. no:
131341
