3743 LiFe

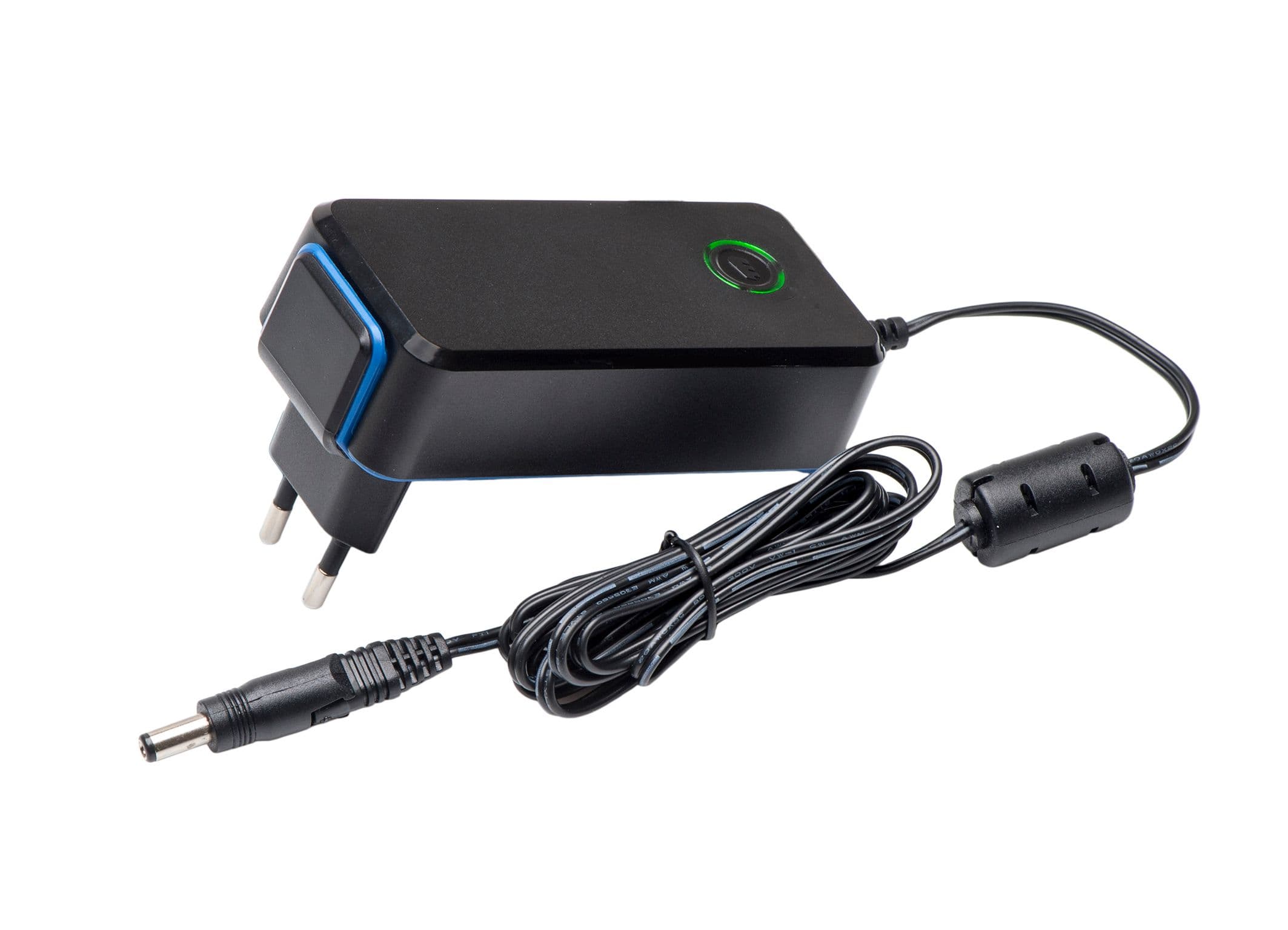

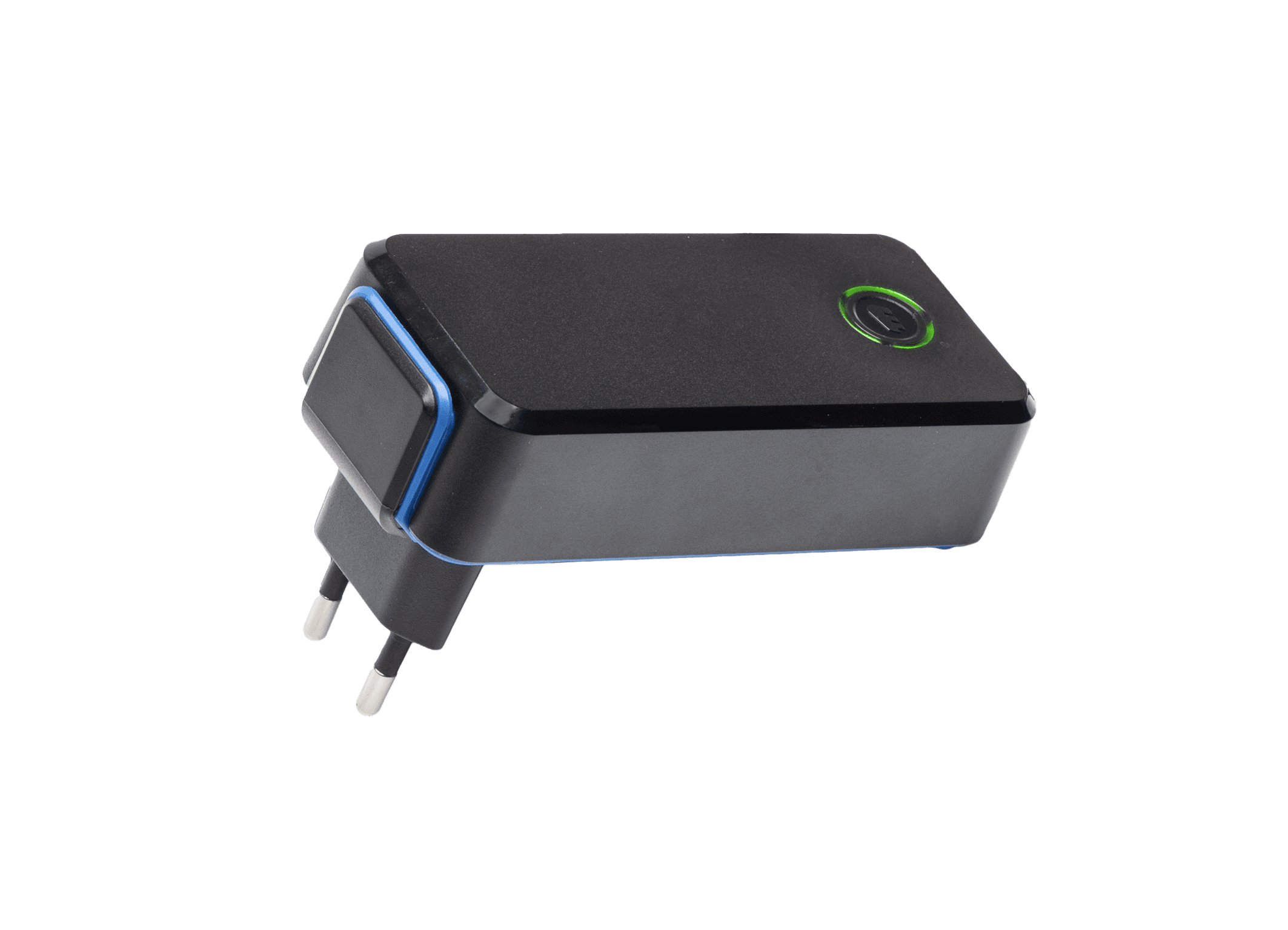

Plug-in charger LiFePO4 batt. max. 1,5A

Product Information

3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: Against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out

Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4

Custom specifications on request

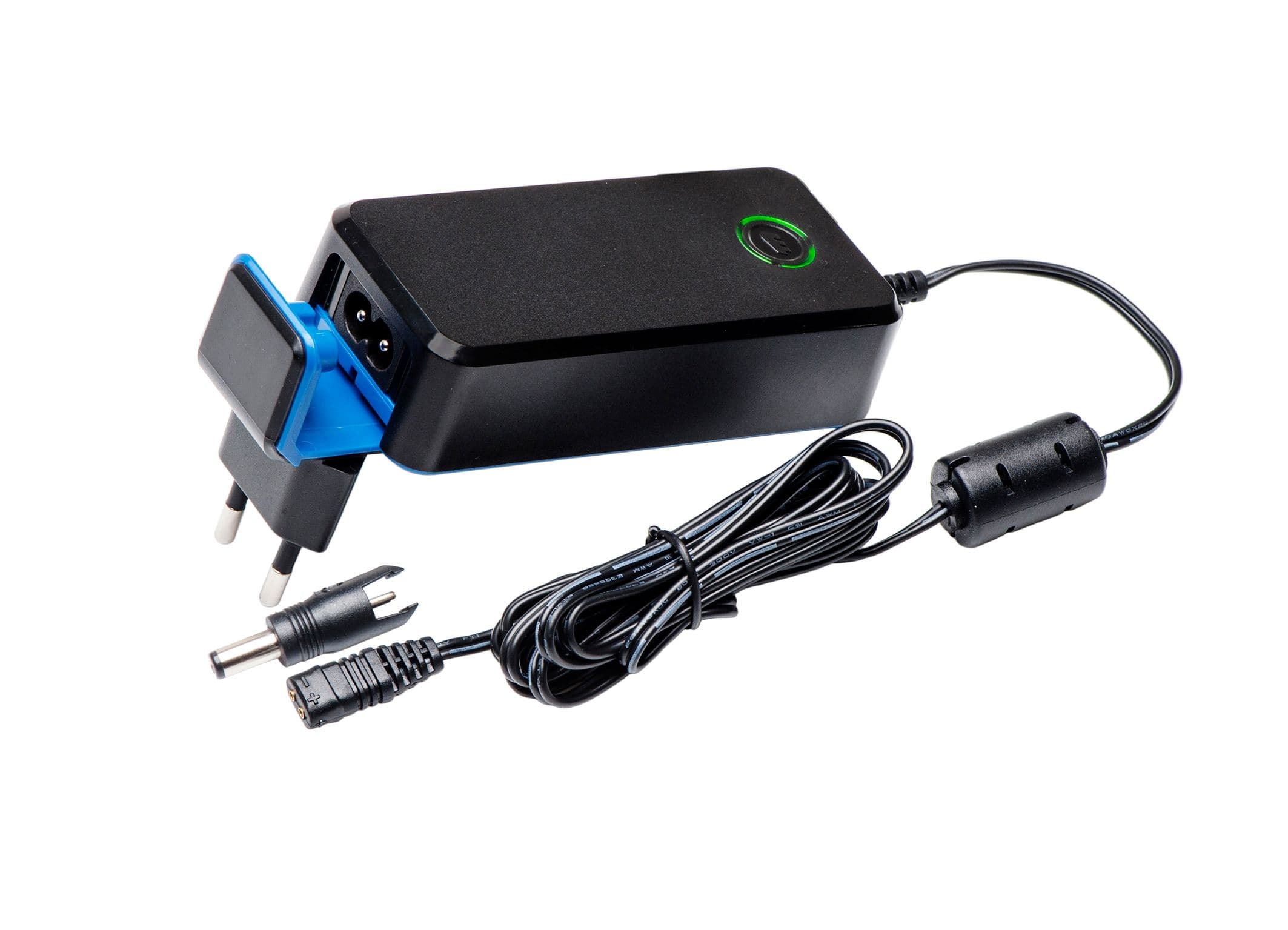

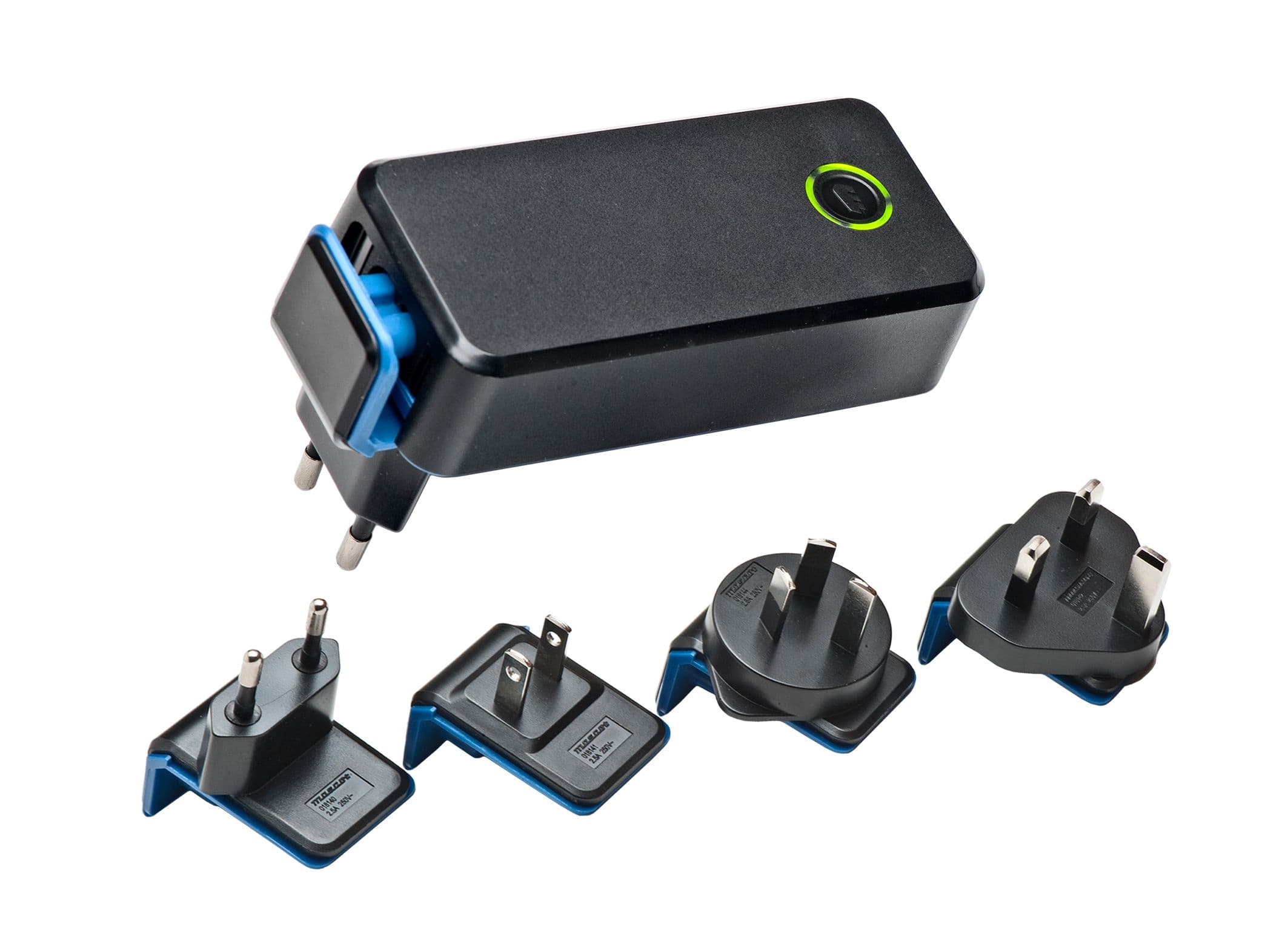

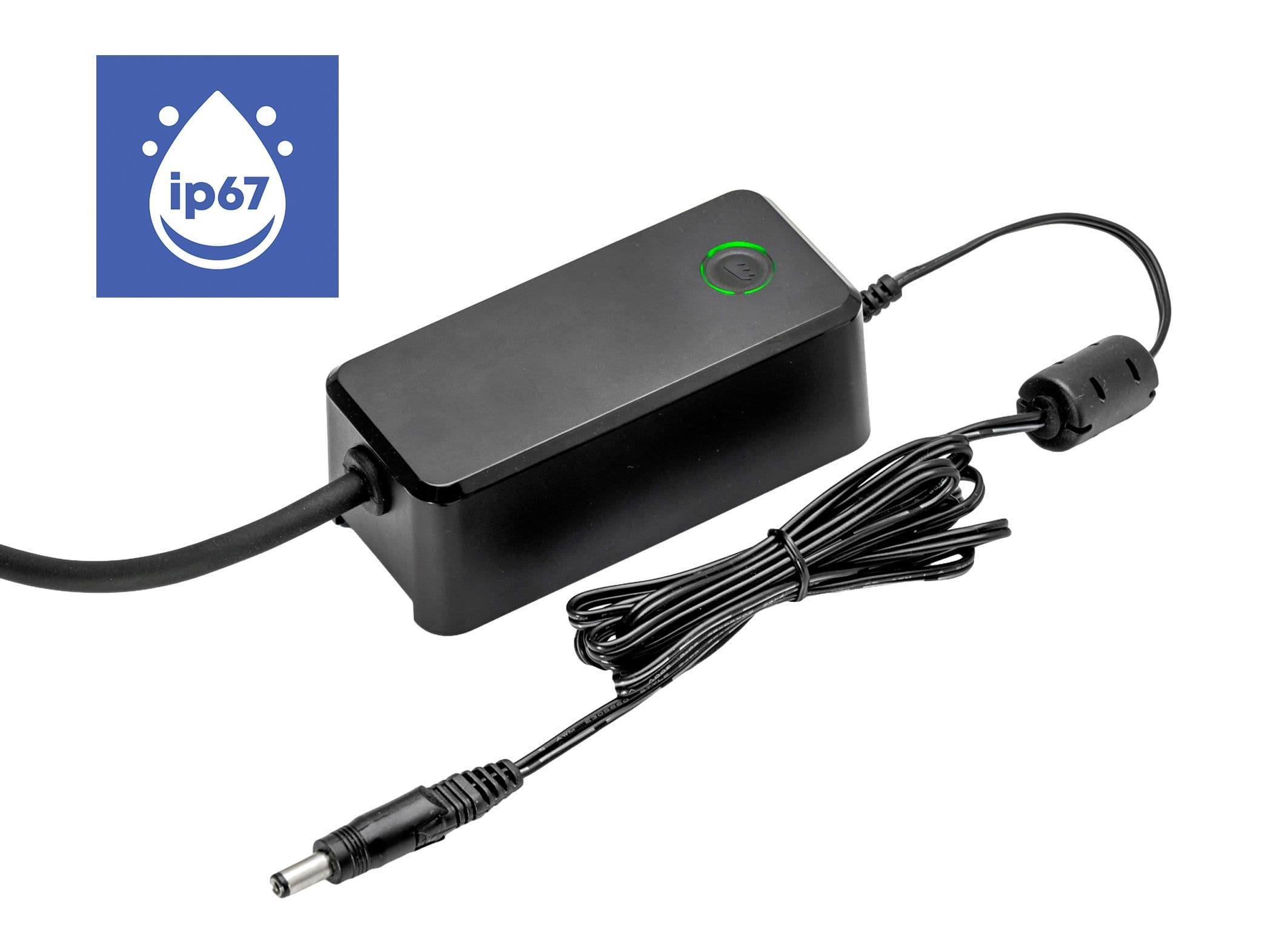

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates. For more information, see: https://www.mascot.no/custom-designs

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings, including:
Timers, Charge voltages, Temperature limits (if NTC is used), Cut-off current level, Compensation Voltage level if there is a diode in series with the charger, Enable/disable float charge, setting charger as float charge only or as power supply (no charge control).
The CBC is also configurable in field.In addition, the ten latest charge cycles may be read using CBC tool or separate Log Reader Software.

For more info, see: Mascot CBC Module LiFe
