Charge guide Li-Ion method D
4041 LI

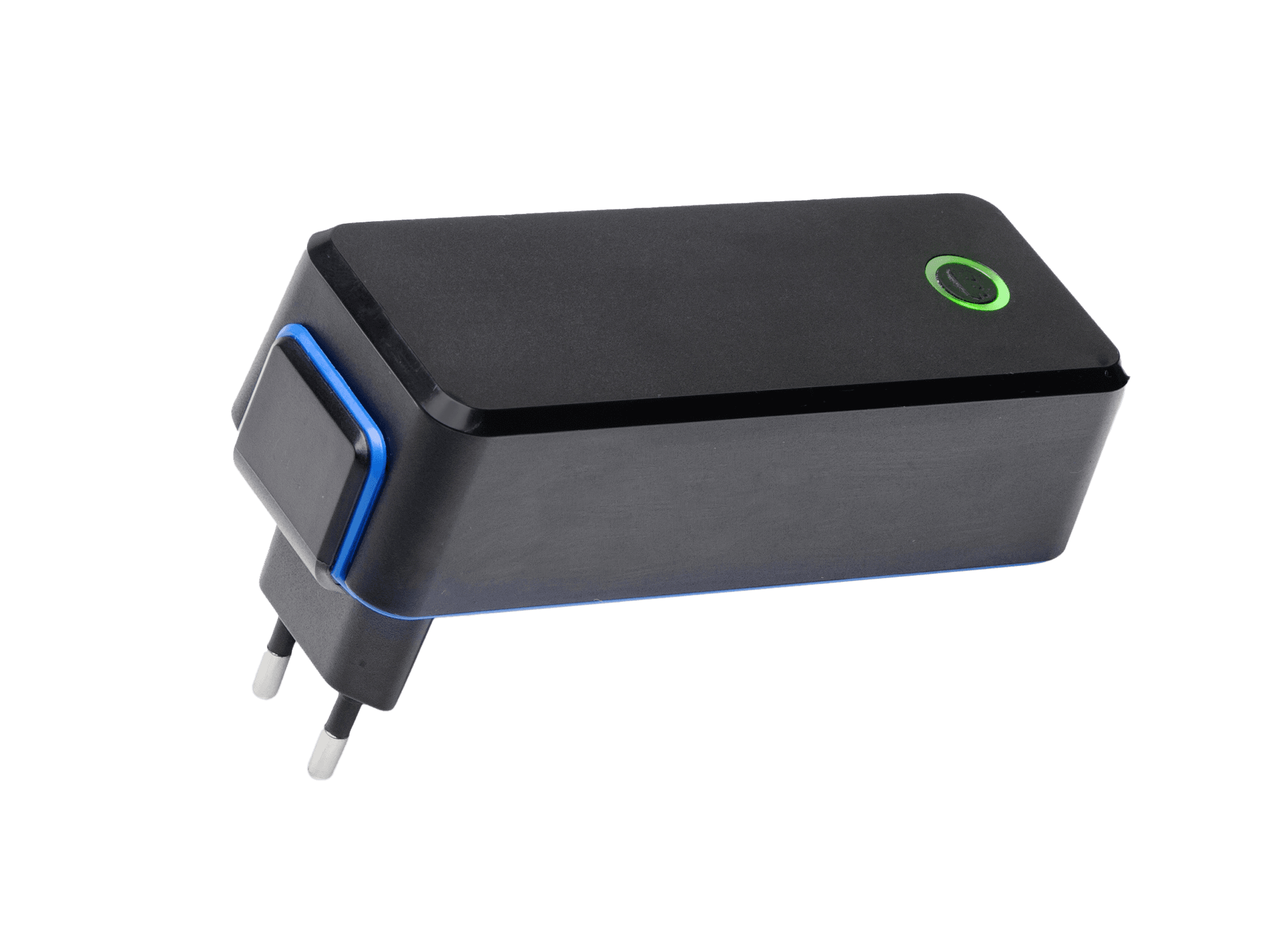

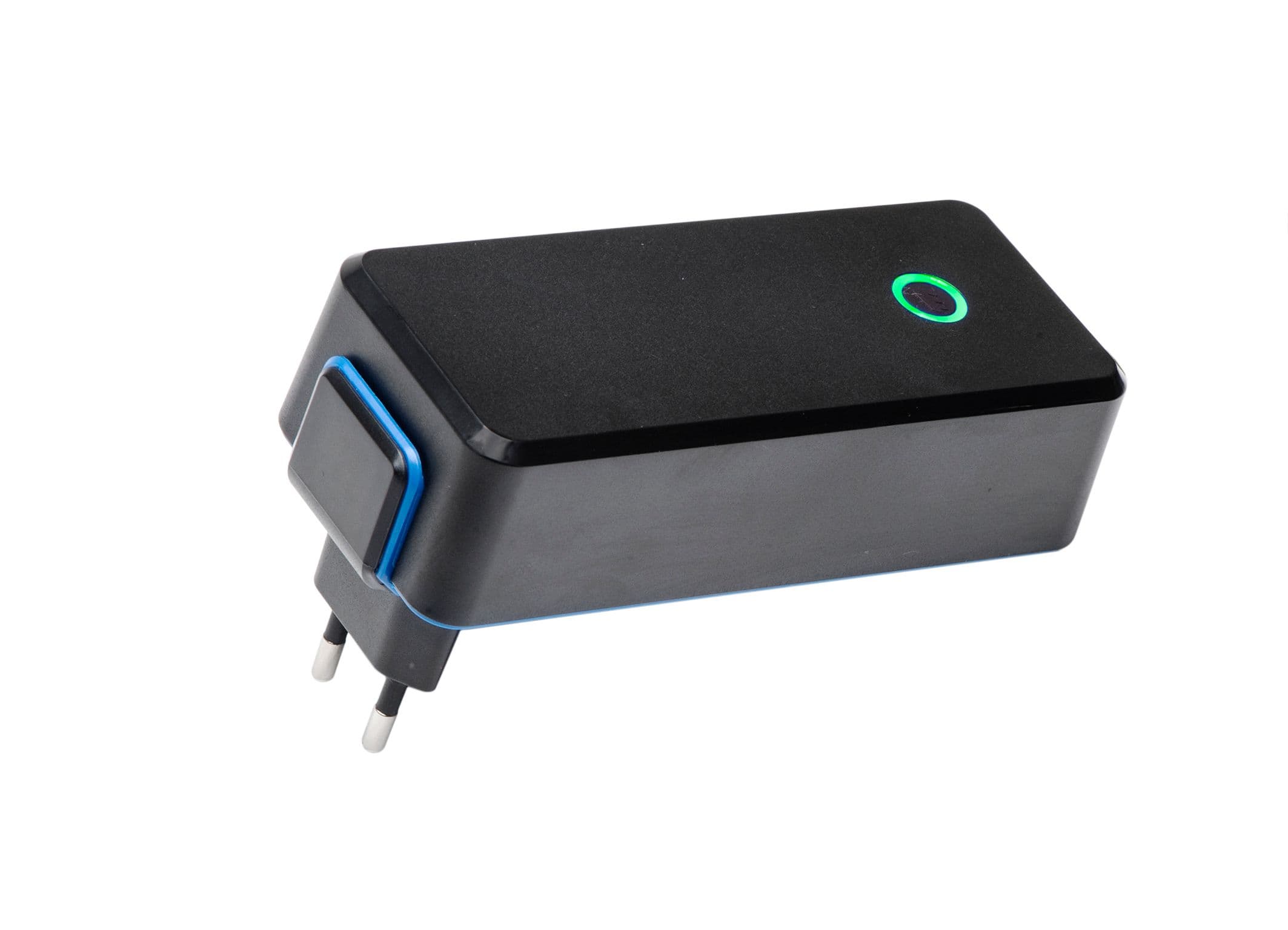

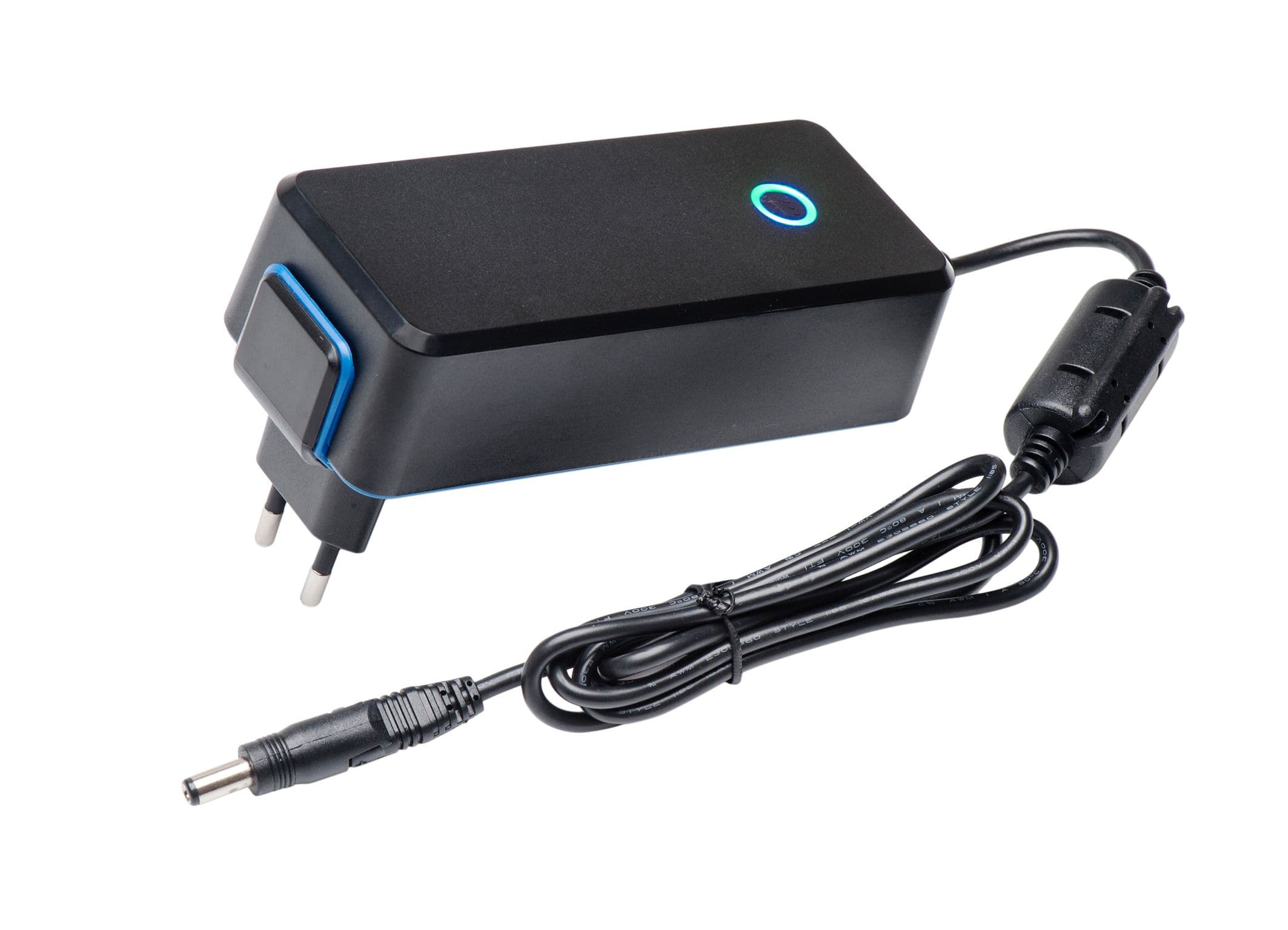

Plug-in charger Li-Ion battery max. 5A
Product Information
3-step charge control with current detection
Universal input voltage
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: Against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
Medically certified
Safety:
• UL approval pending
• Med. EN 60601-1 ed. 3.1 and 3.2
• Home healthcare EN 60601-1-11
• Household, EN 60335-1 & -2-29
• A/V and Comm. equipment, EN 62368-1
EMC:
• EN 60601-1-2 ed. 4.1
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Plug-in/Desktop unit

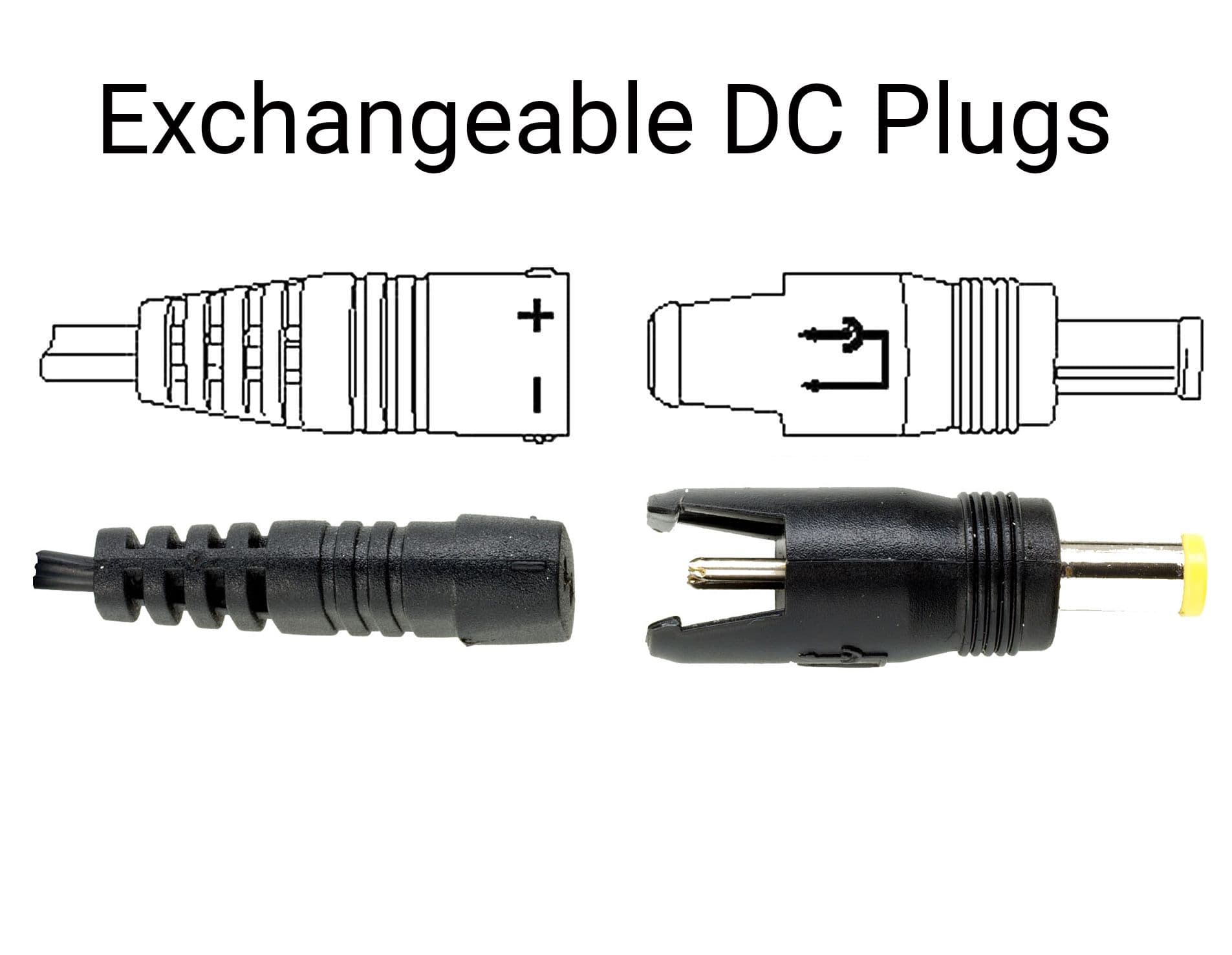

- Exchangeable AC and DC plugs available
- Order plugs & mains cord separately
- Standard DC output cord (for exch. plugs): 0,75m, Coax Inner=16AWG Outer=18AWG, UL1185
- With NTC input on request
- 2MOOP standard, 2MOPP available
- Animation showing charge error indications:
- https://vimeo.com/679995332
Accessories

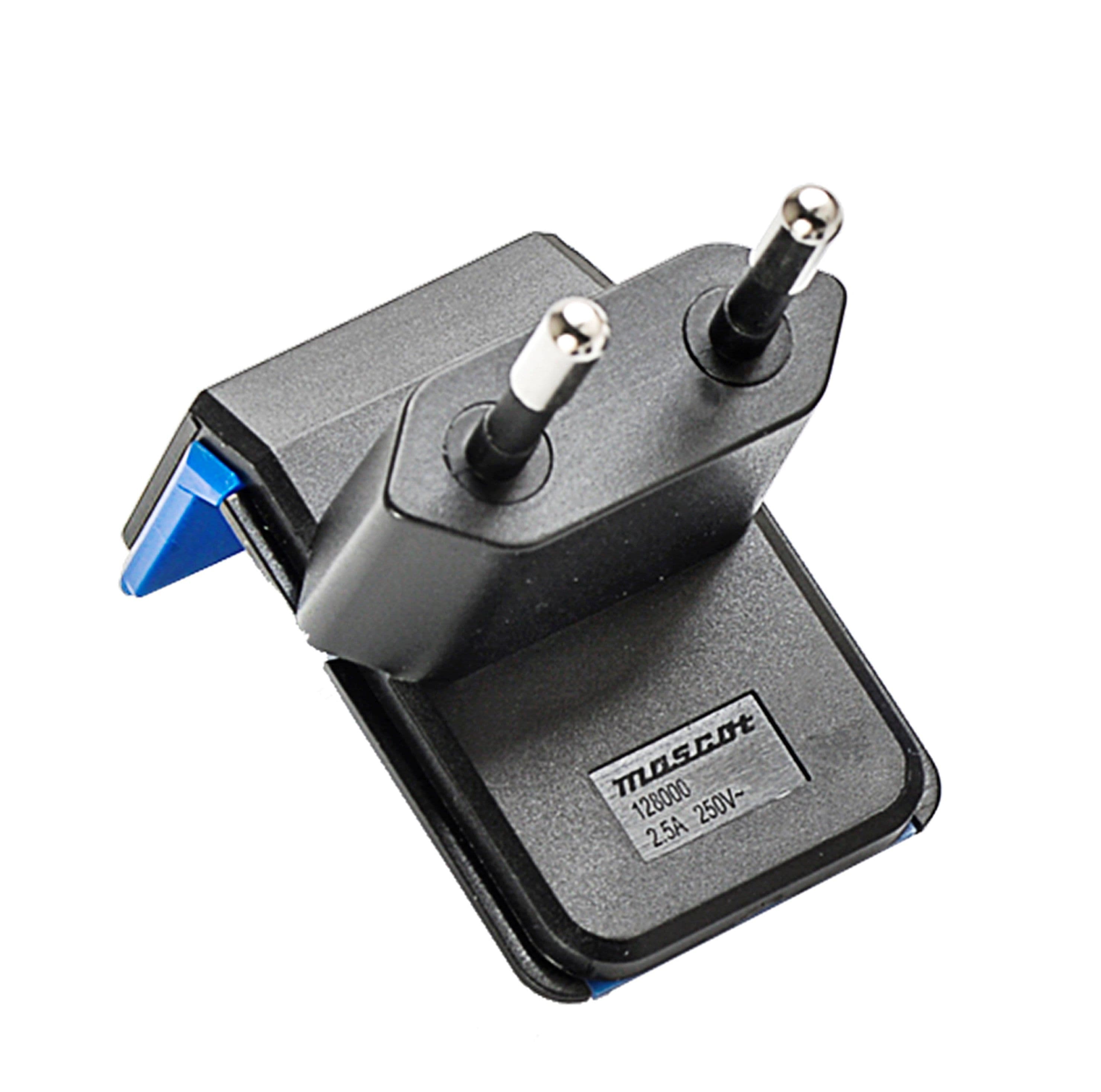

Exch AC Plug Blueline EU
Art. no:
128000

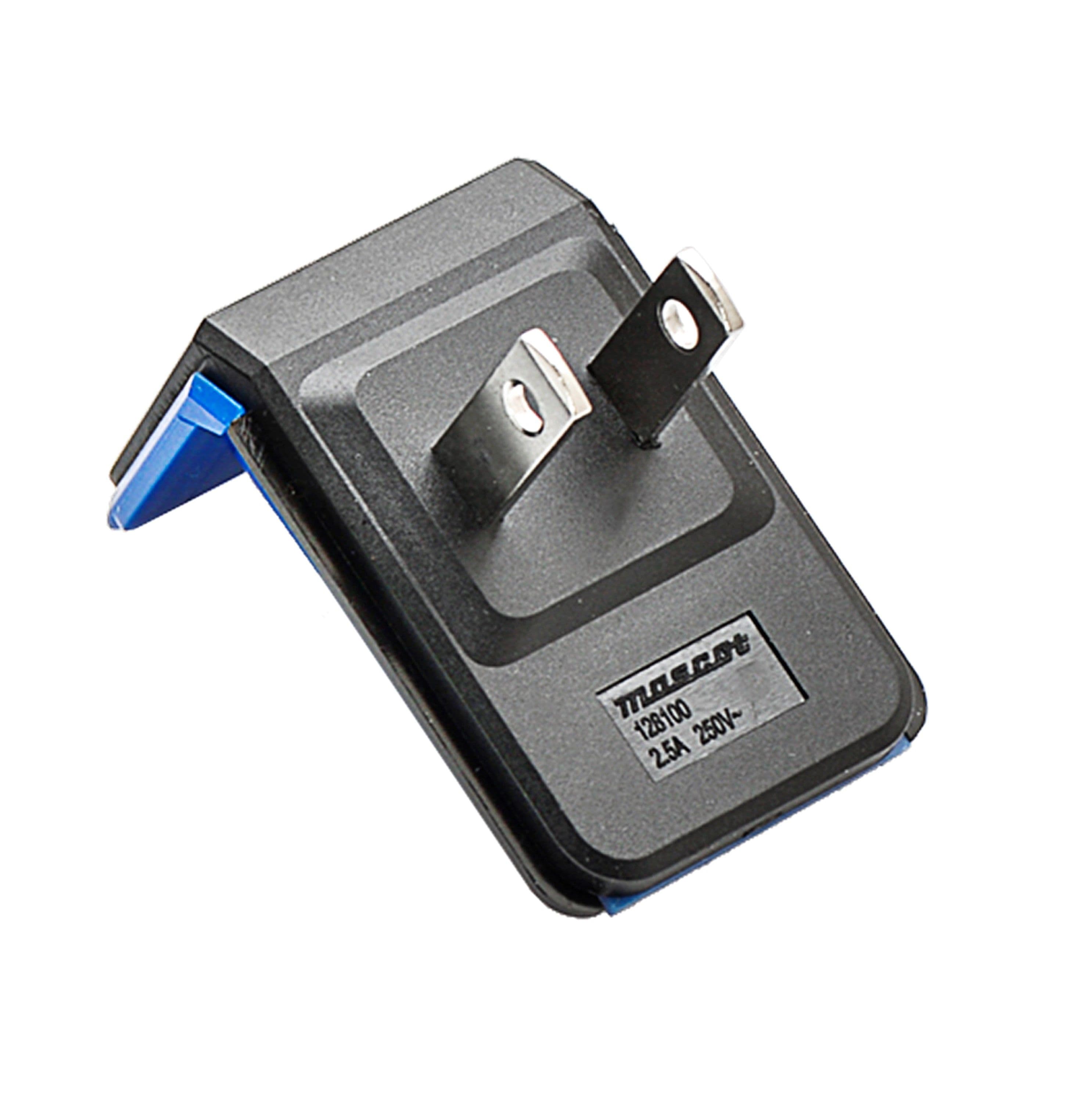

Exch AC Plug Blueline US
Art. no:
128100

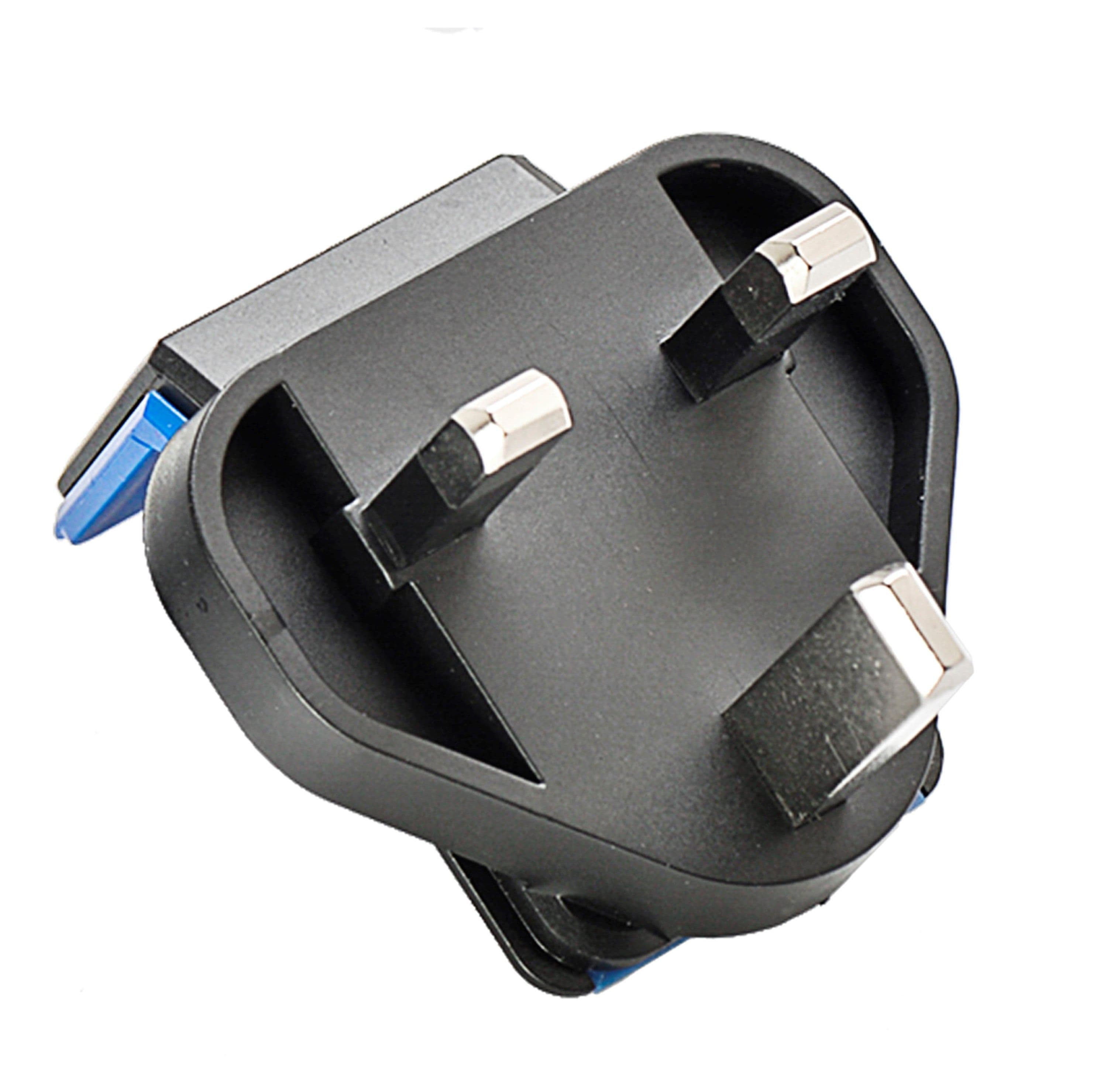

Exch AC Plug Blueline UK
Art. no:
128200

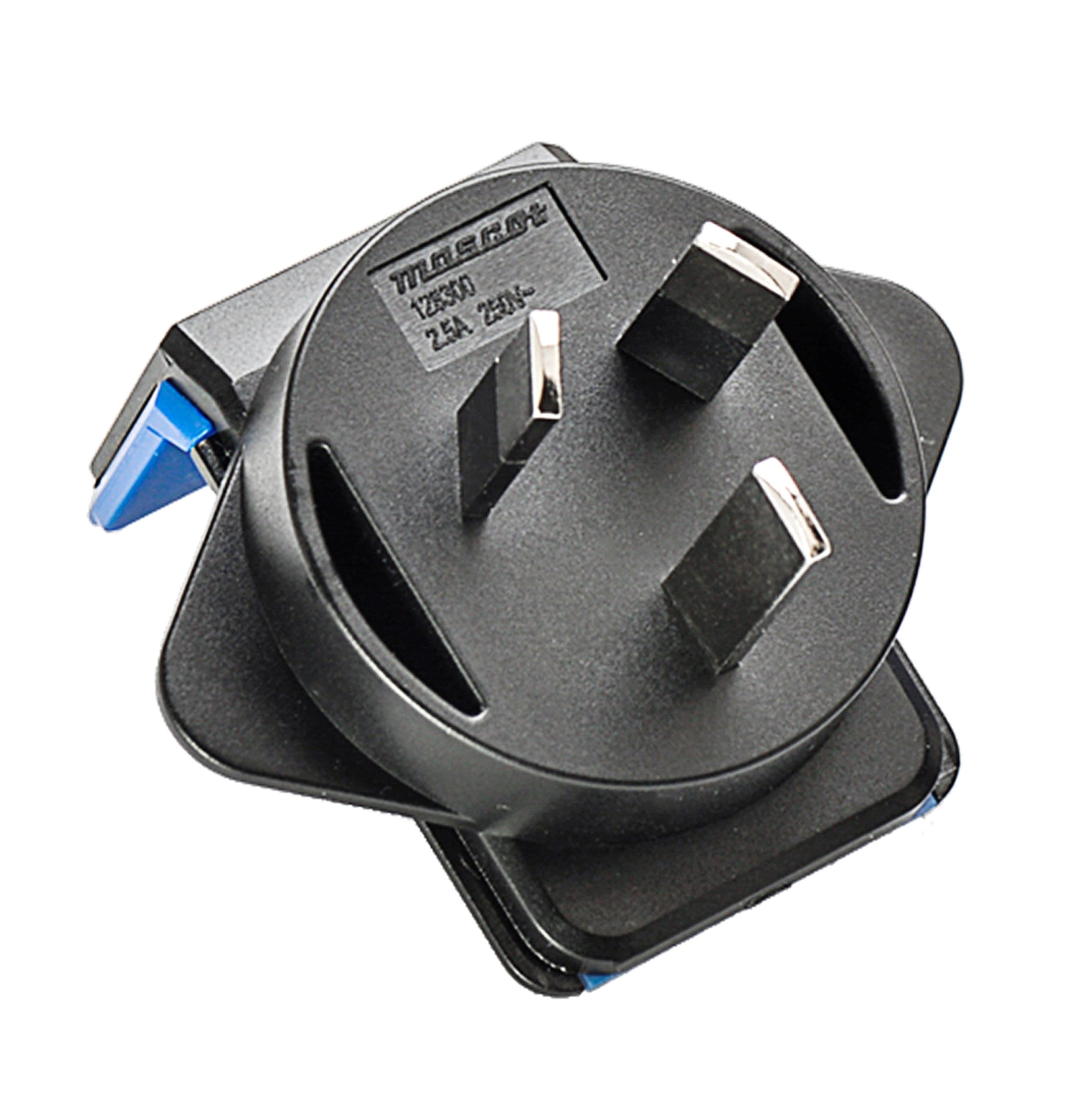

Exch AC Plug Blueline AUS
Art. no:
128300

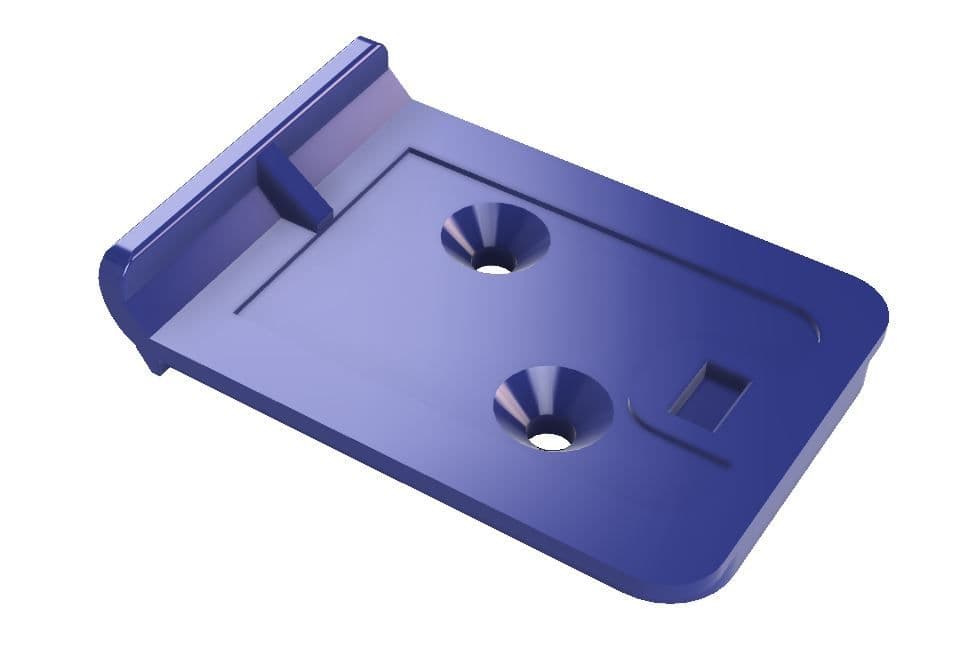

Wall Mount Bracket Exch AC Plug Blueline
Art. no:
127400

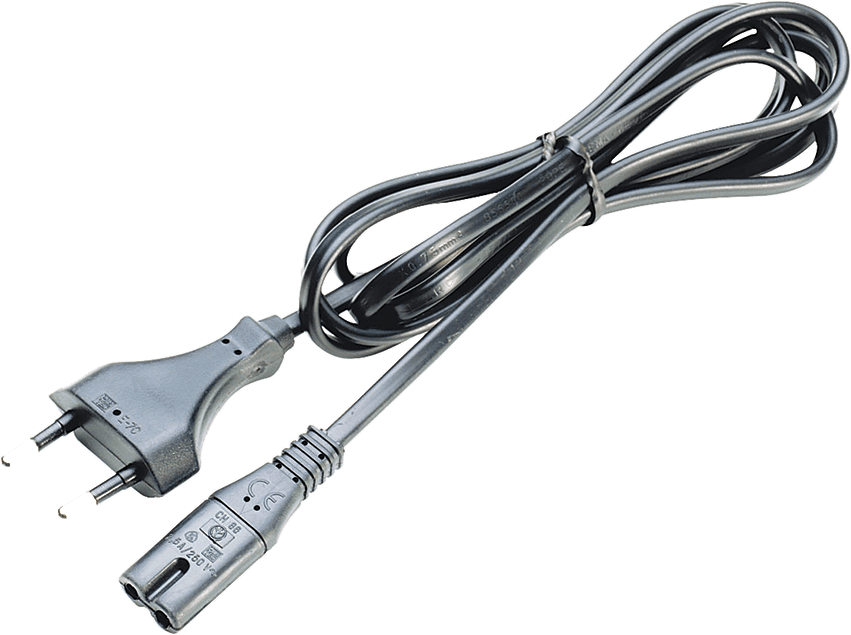

AC Cord 2-pin IEC 60320 EU
Art. no:
131306

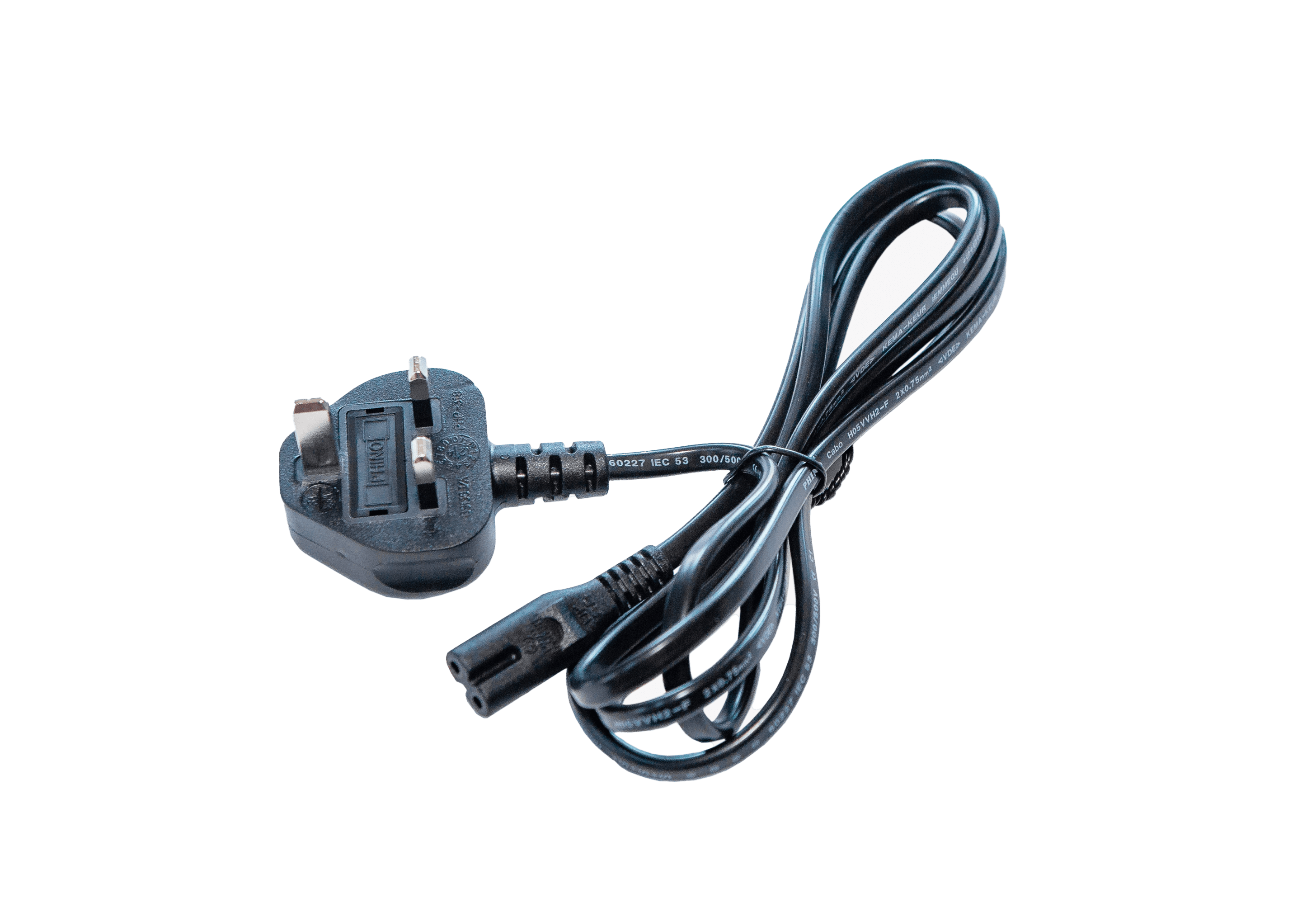

AC Cord 2-pin IEC 60320 UK
Art. no:
131148

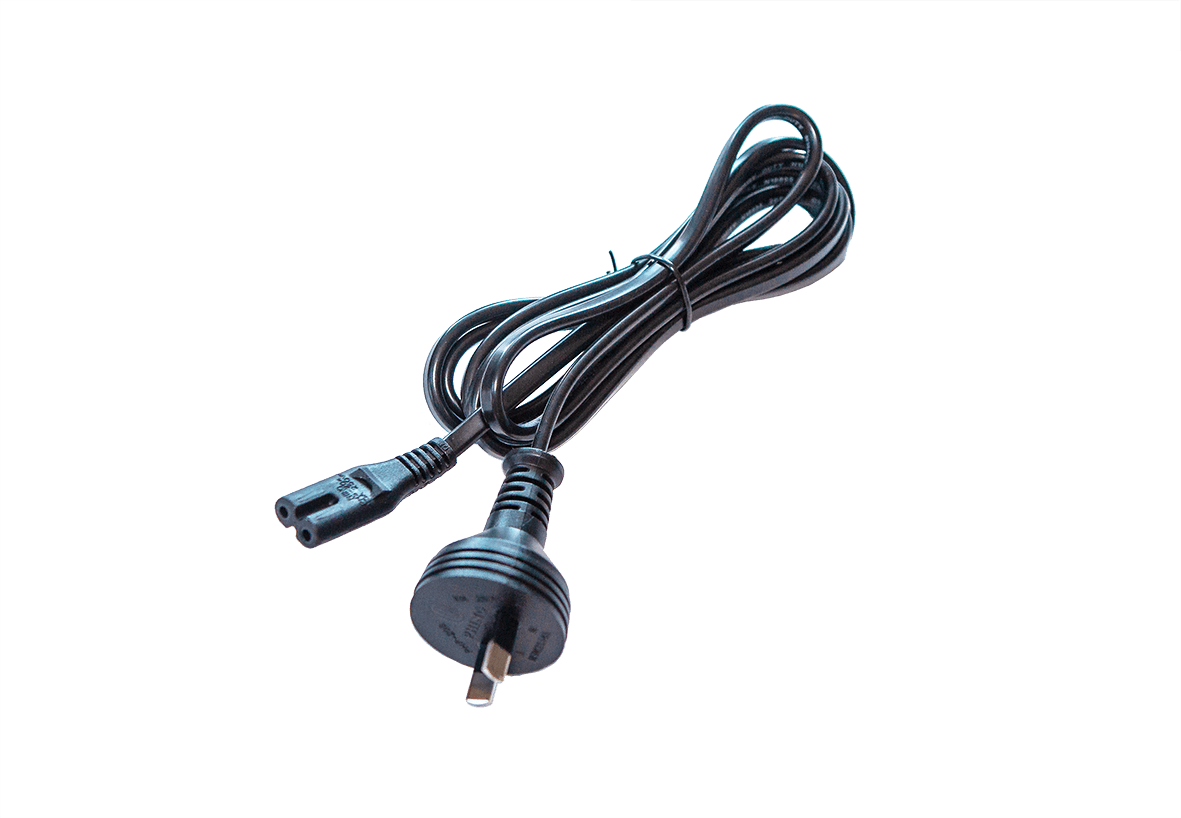

AC Cord 2-pin IEC 60320 AUS
Art. no:
013108

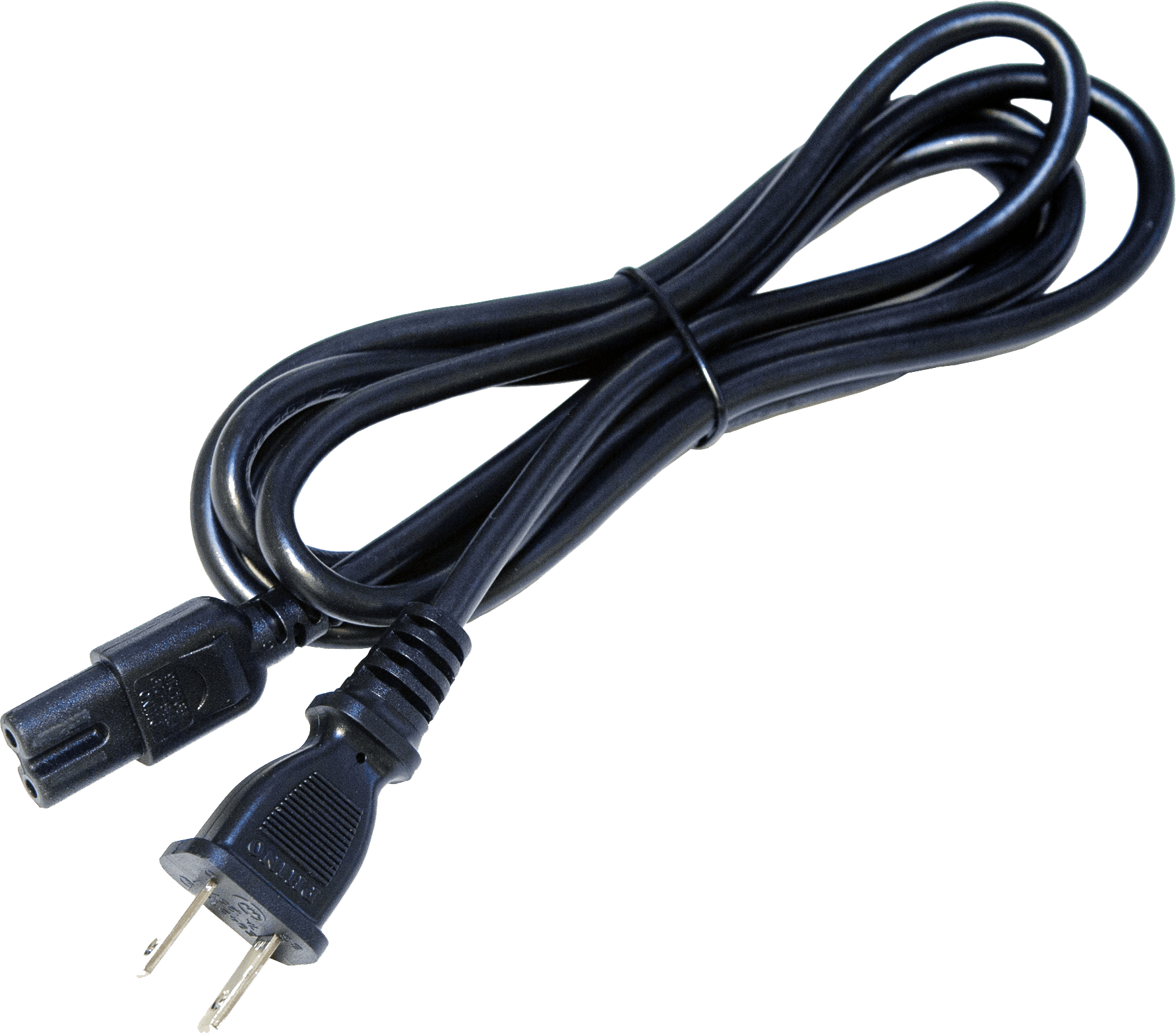

AC Cord 2-pin IEC 60320 US_
Art. no:
131368

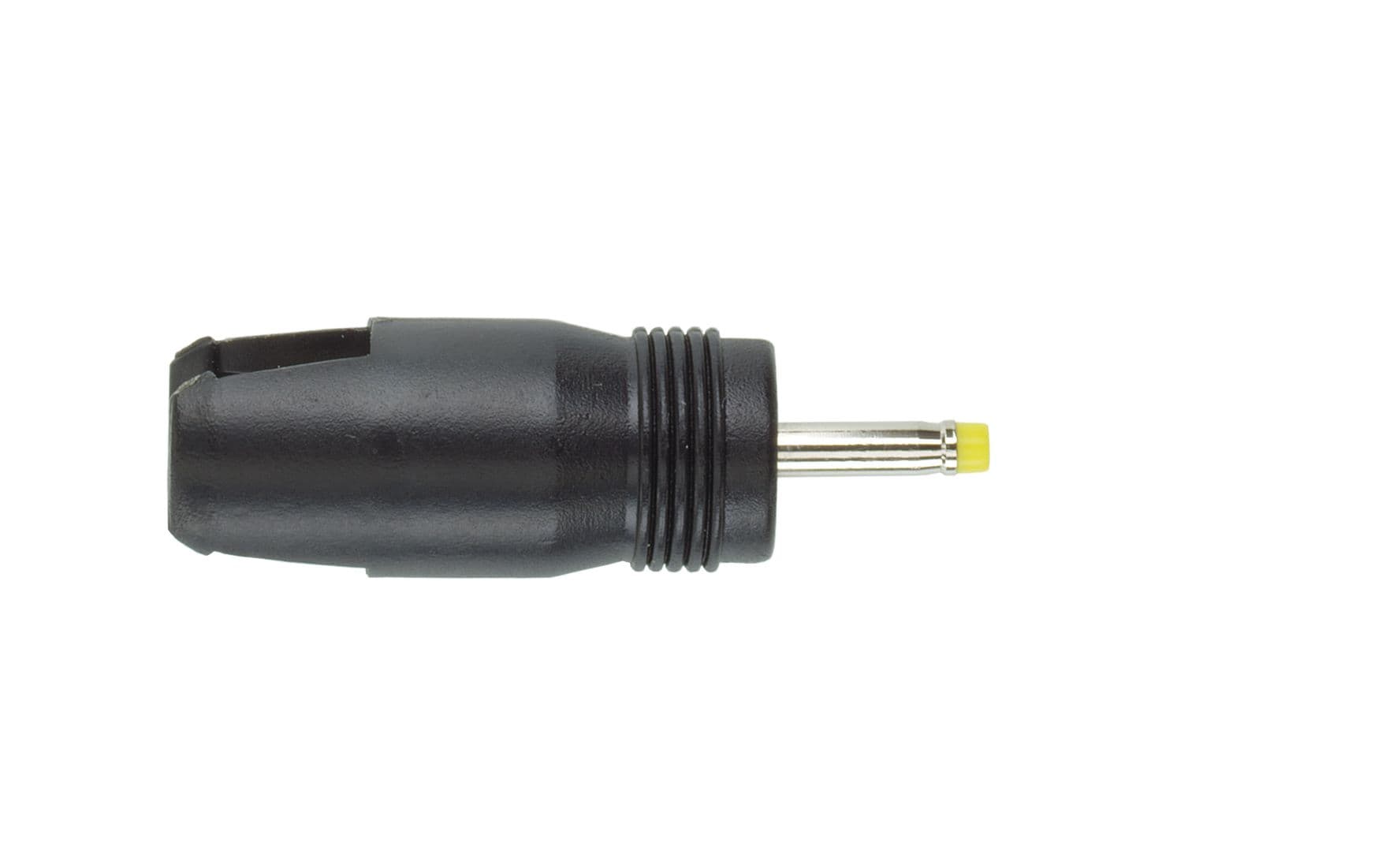

Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126

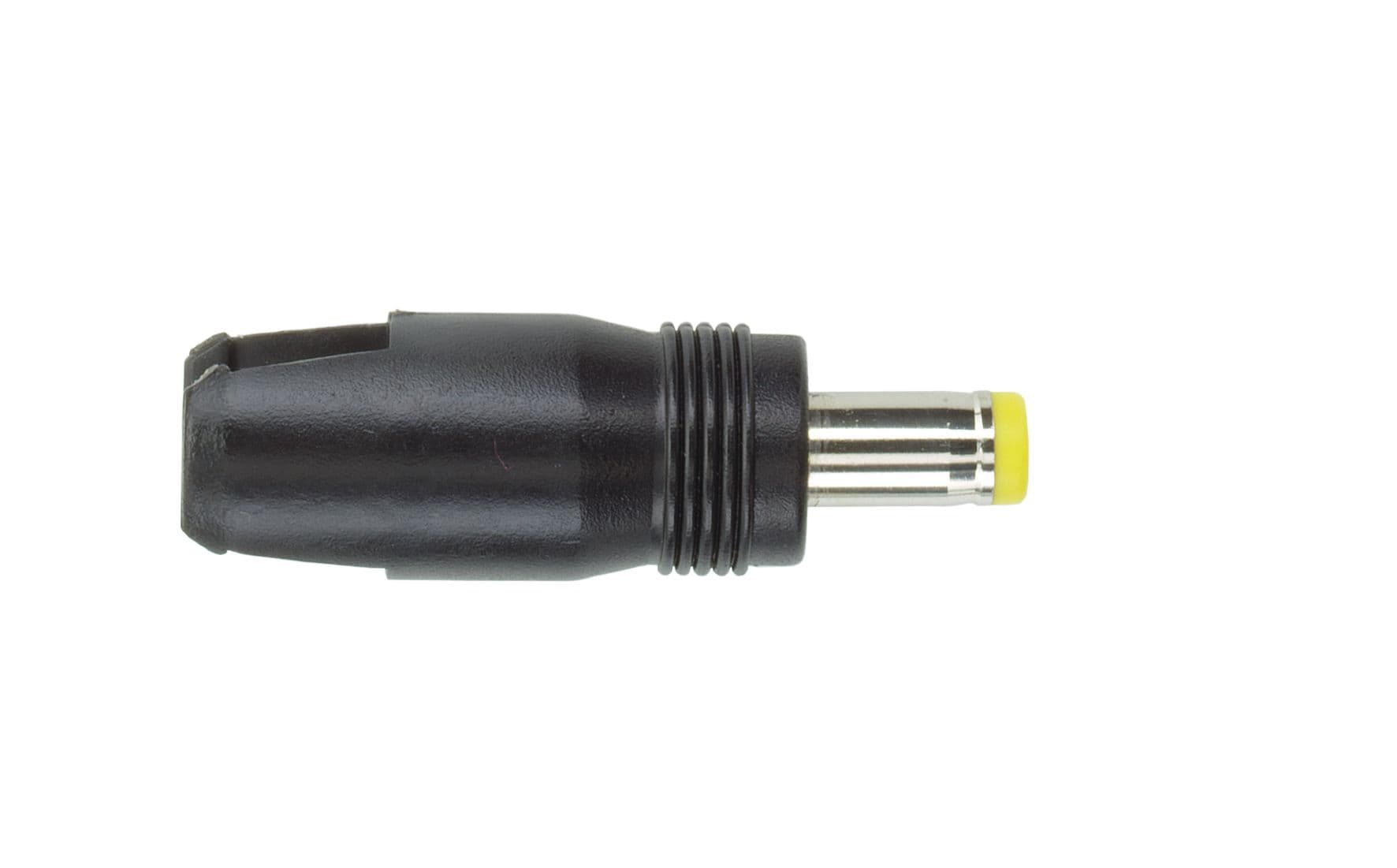

Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127

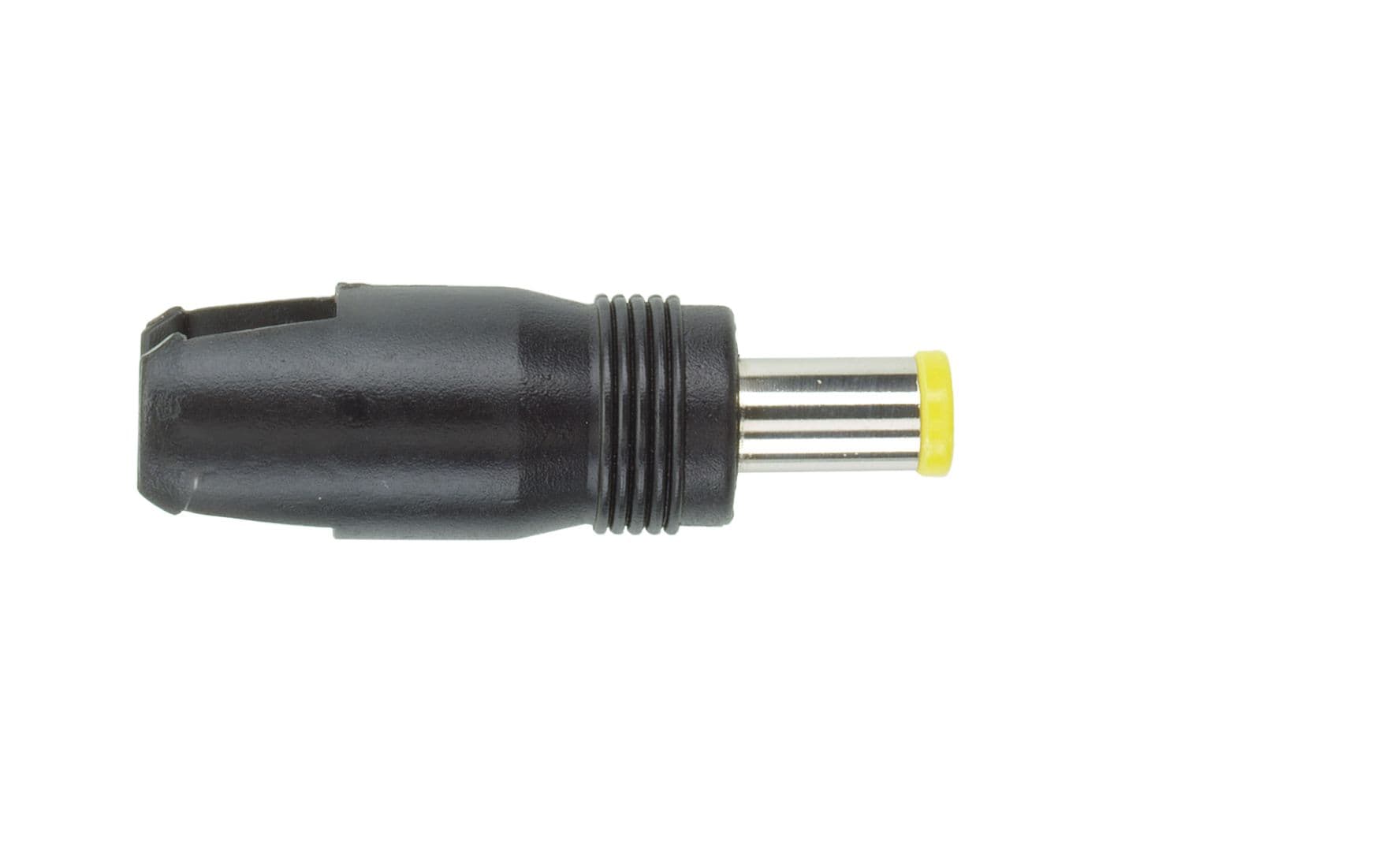

Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128

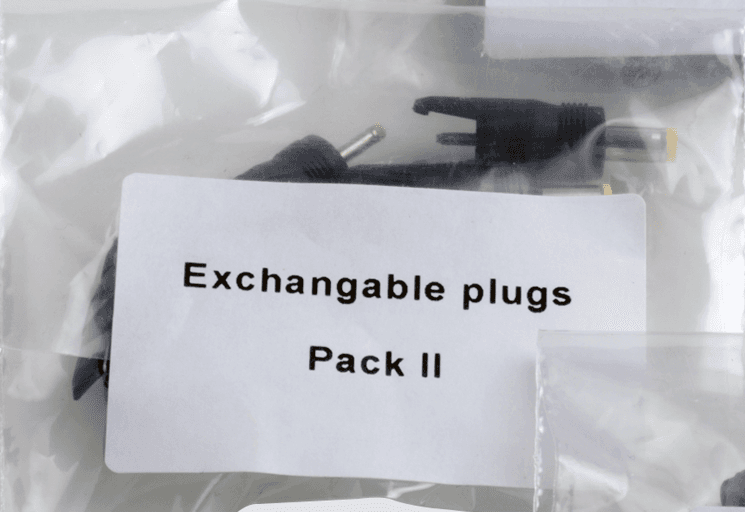

Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201

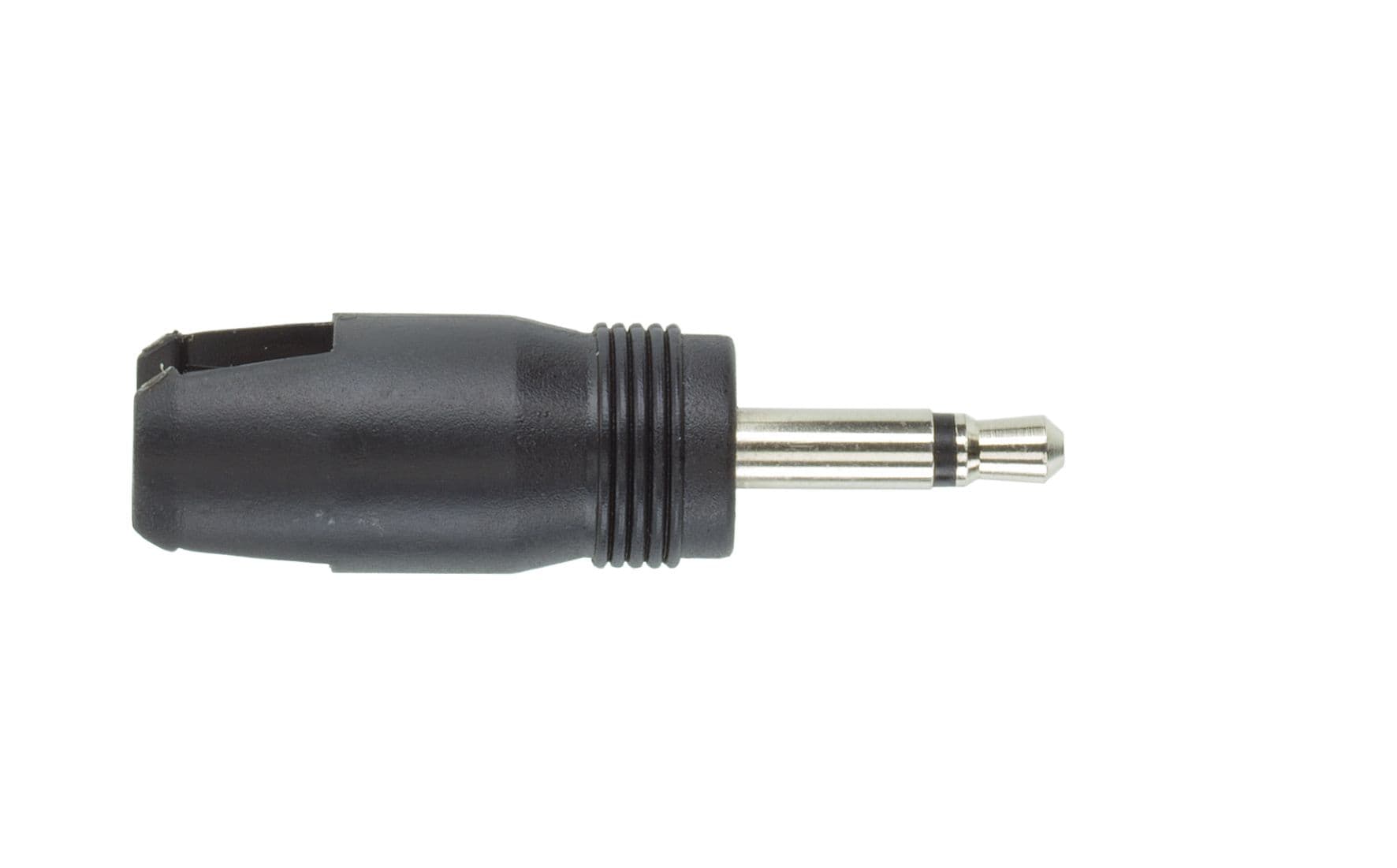

Exch DC Plug 3615 art. 131123
Art. no:
131123

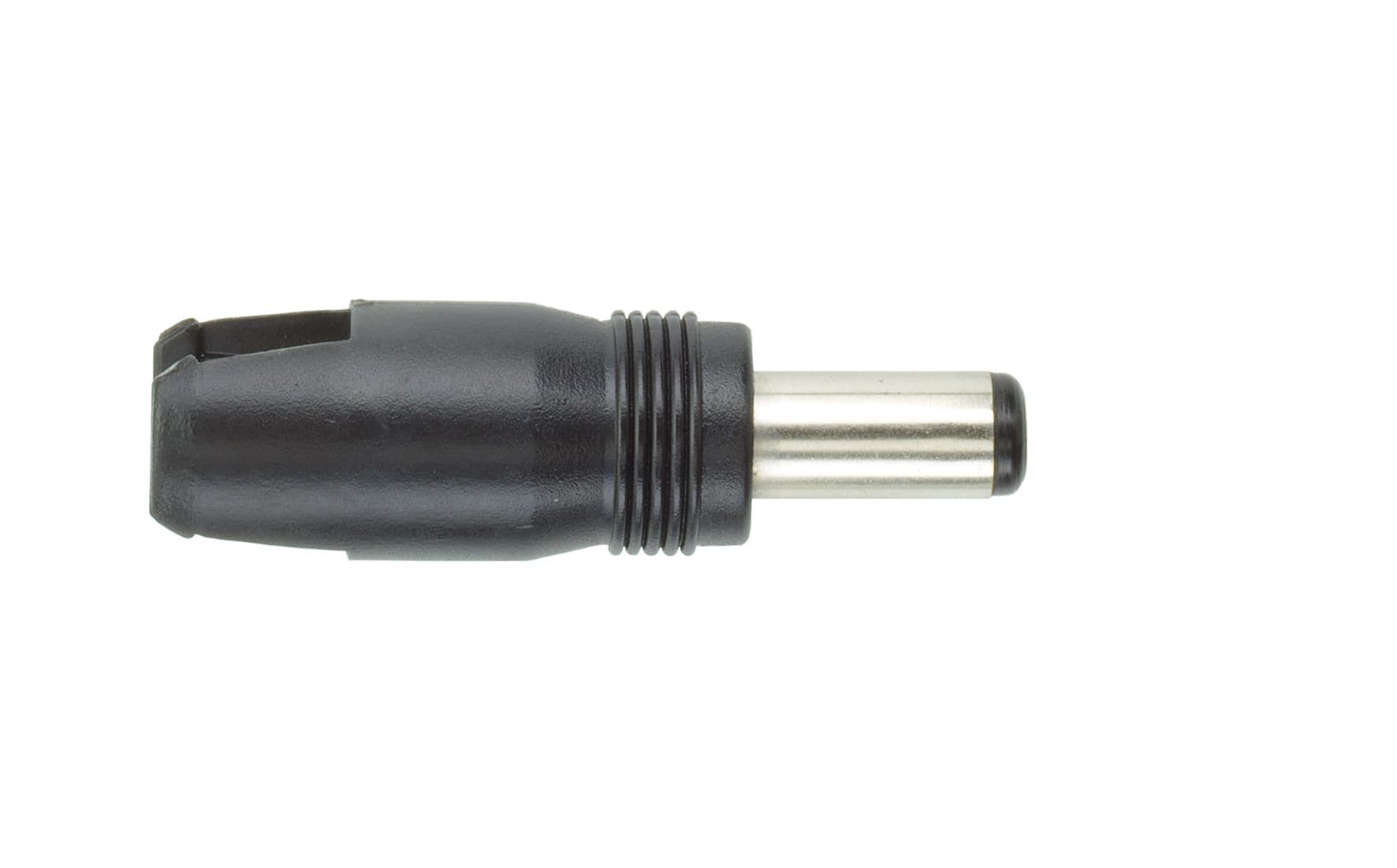

Exch DC Plug 3617 art. 131120
Art. no:
131120

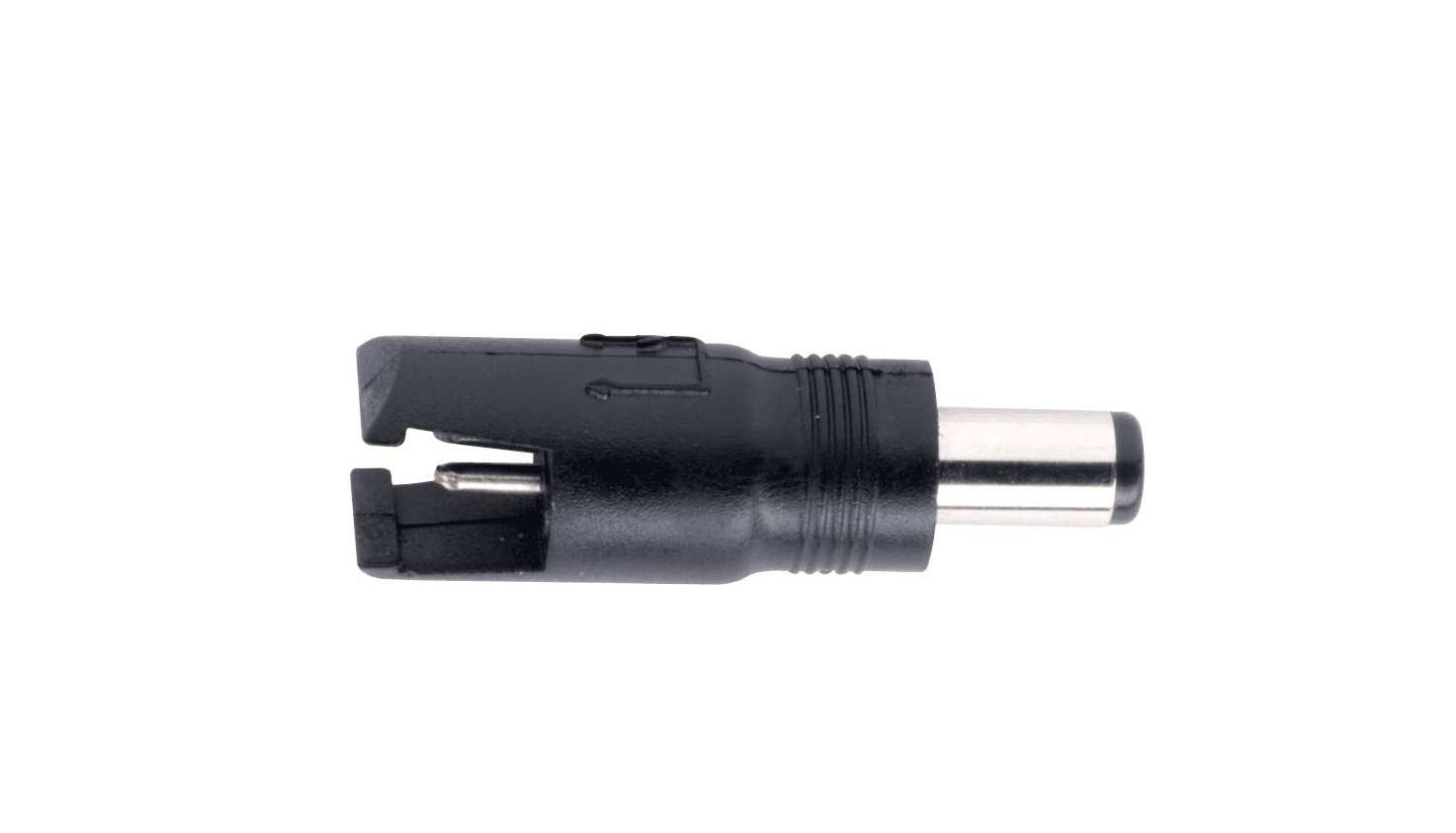

Exch DC Plug 3618 art. 131193
Art. no:
131193

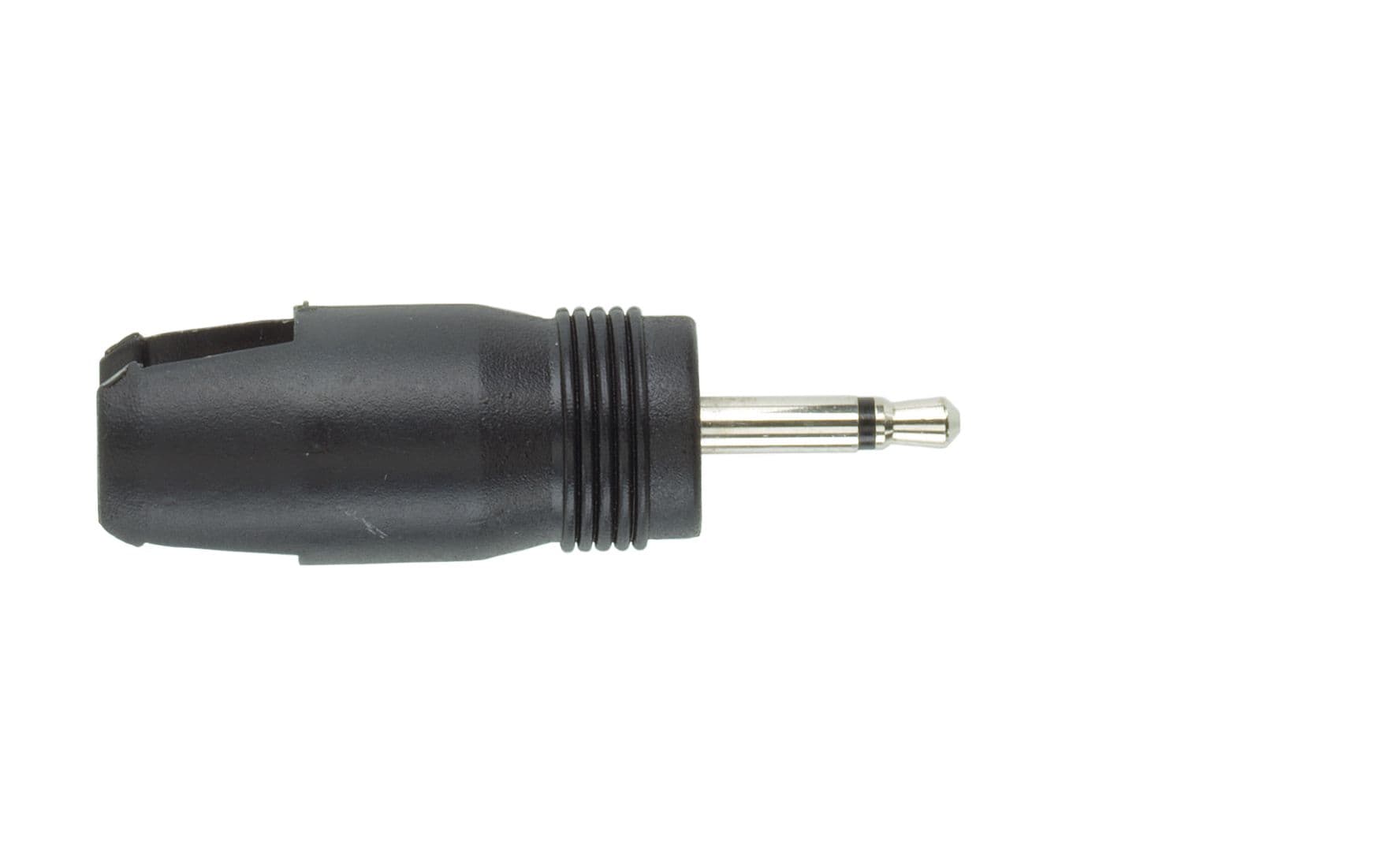

Exch DC Plug 3620 art. 131124
Art. no:
131124

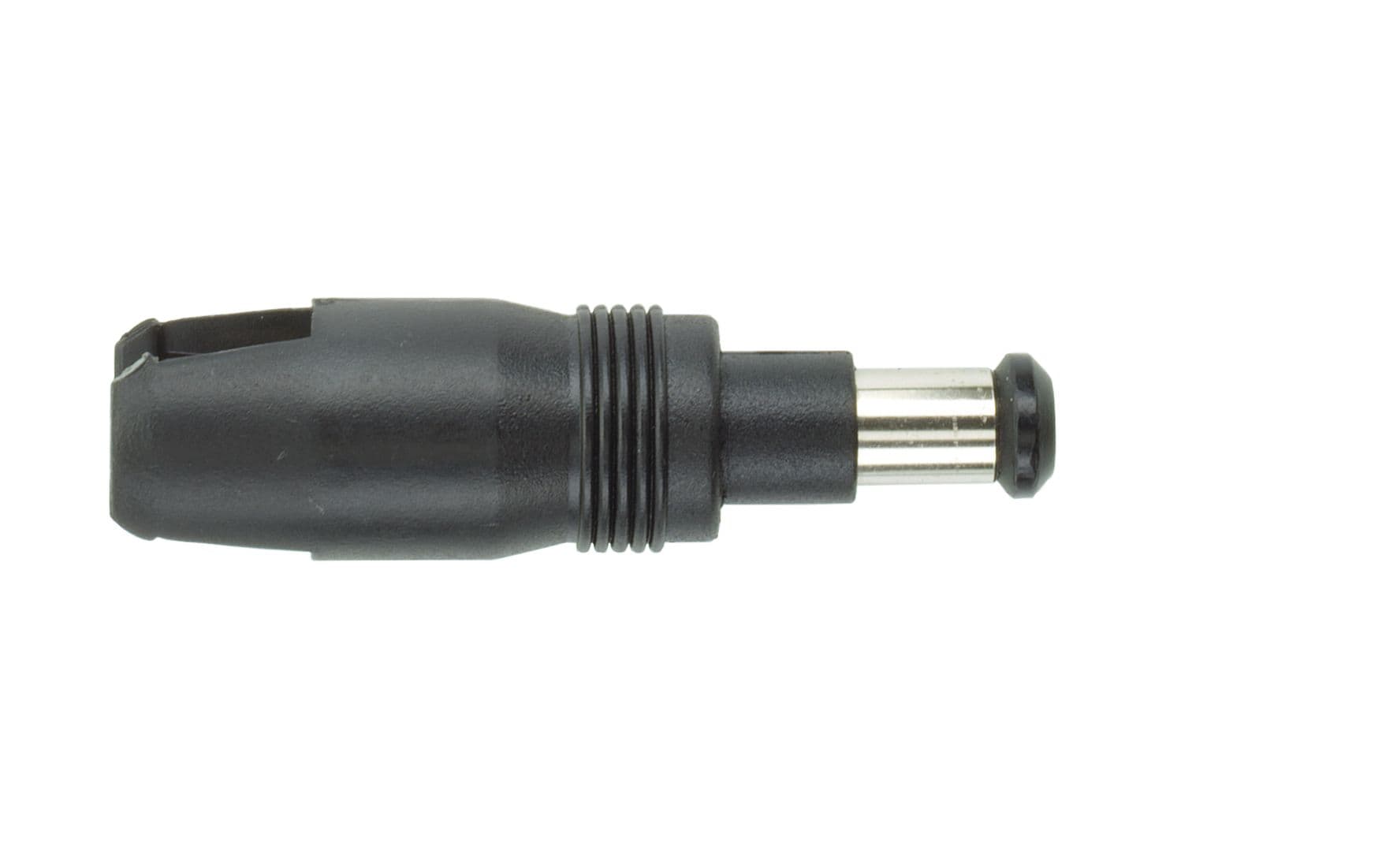

Exch DC Plug 3627 art. 131122
Art. no:
131122

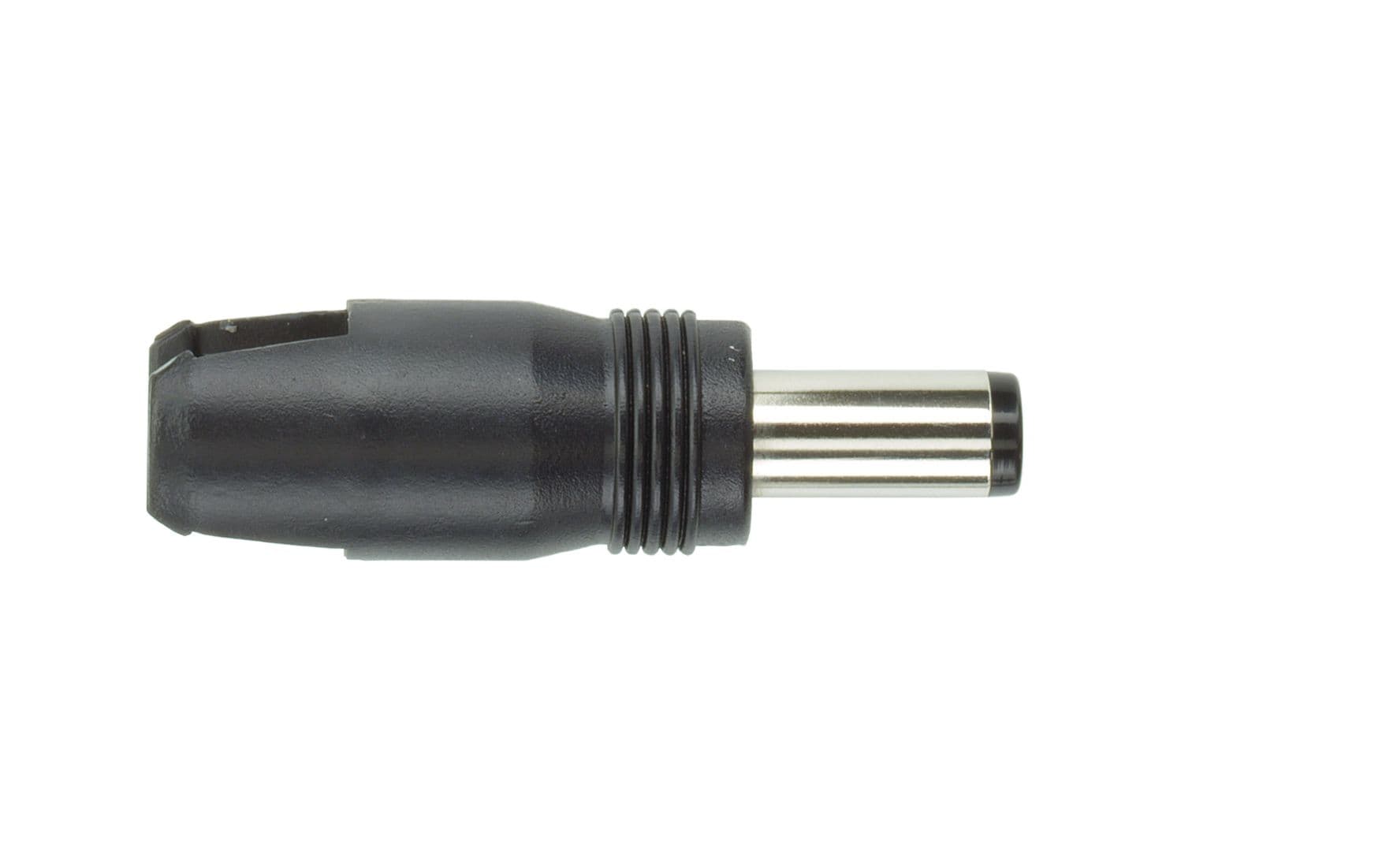

Exch DC Plug 3630 art. 131119
Art. no:
131119

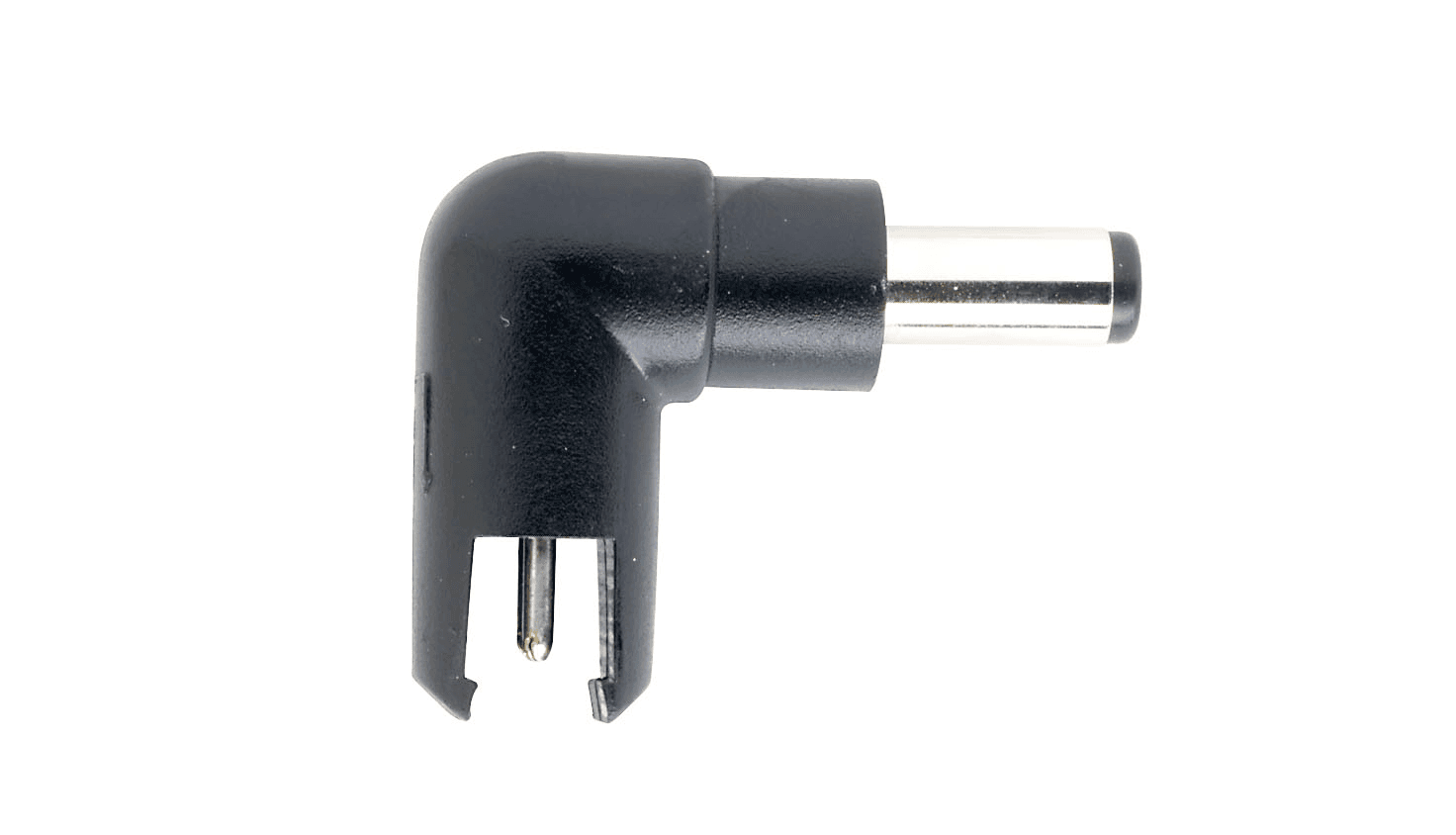

Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121

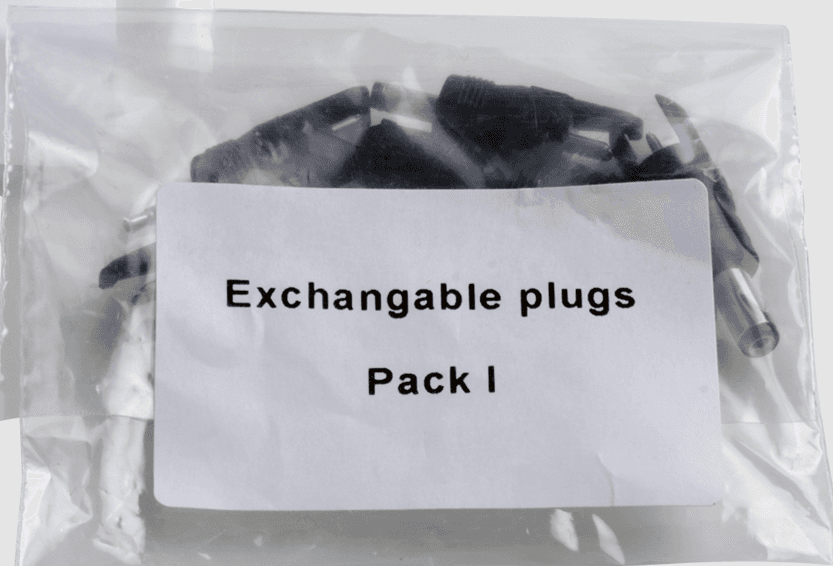

Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201

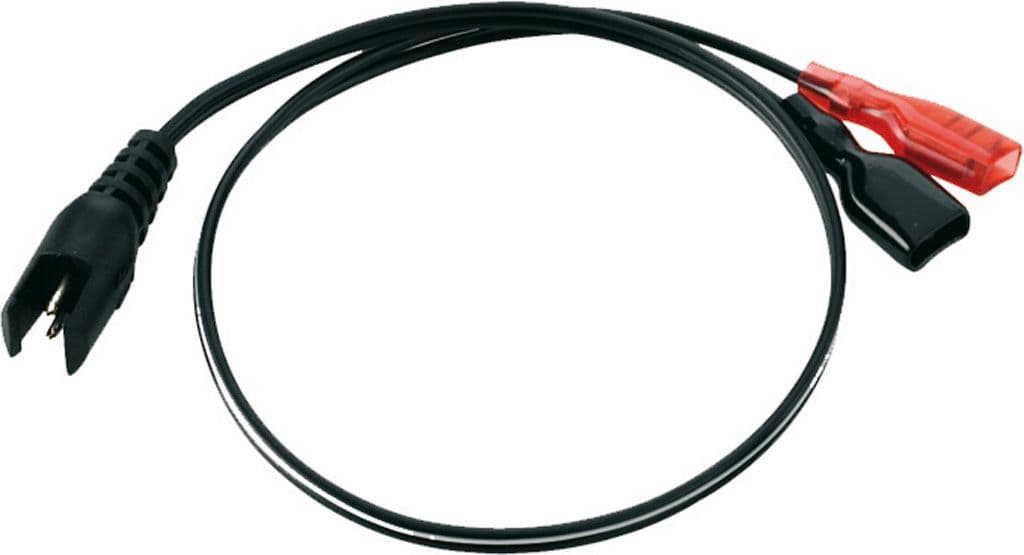

Exch DC Push on terminal 131341
Art. no:
131341
