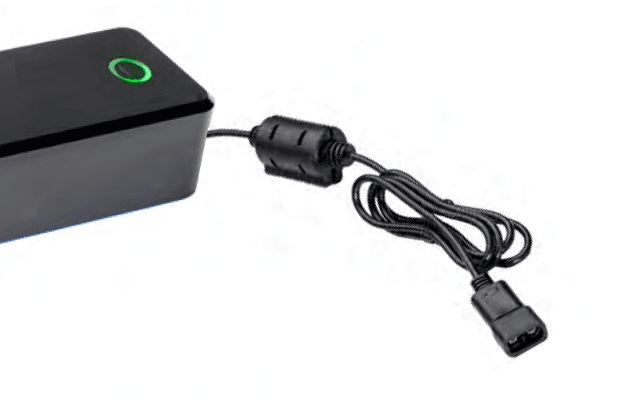

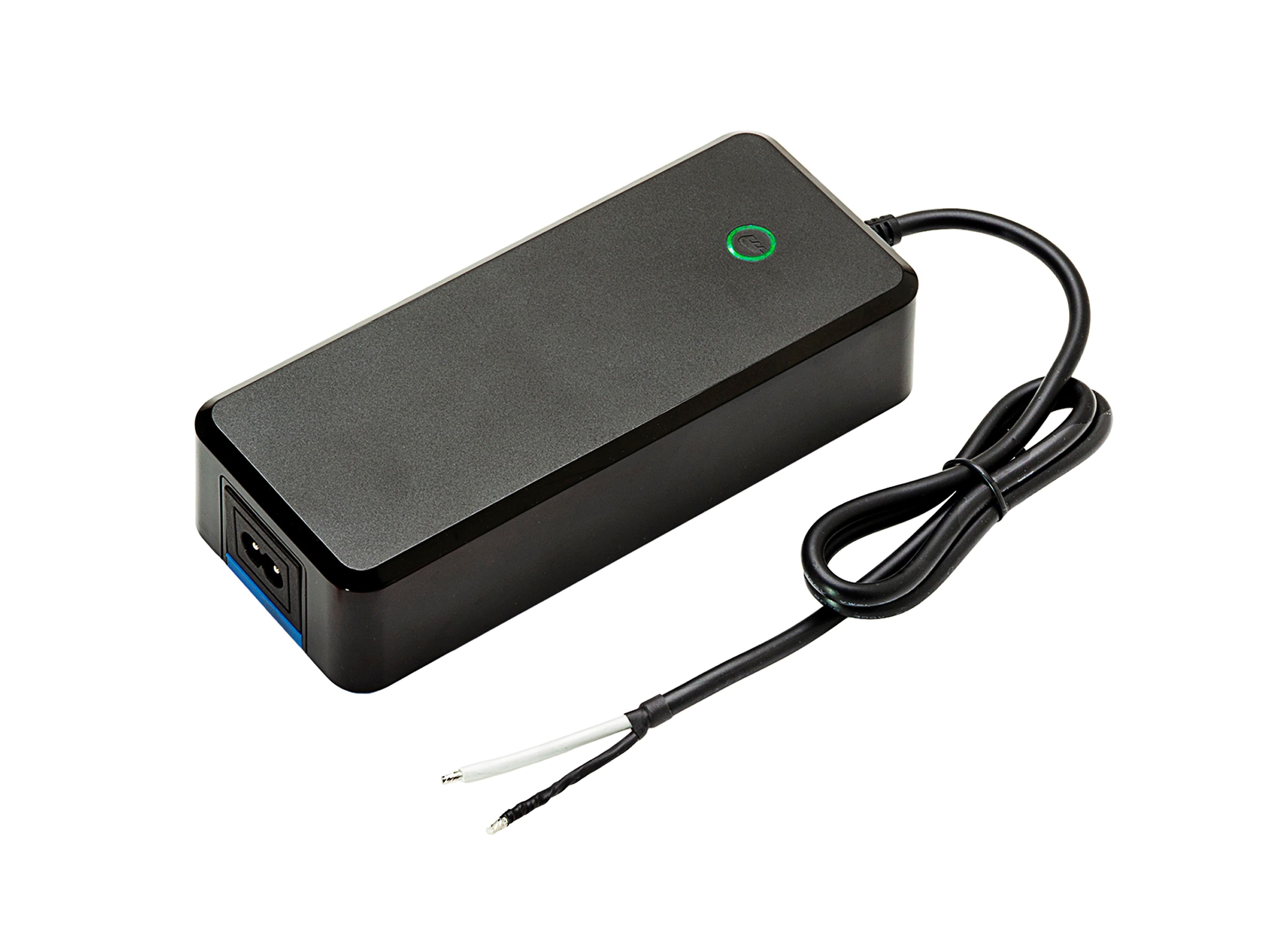

4340 LA
Desktop charger Lead Acid batt. max. 8 A
Product Information
3-step charge control with current detection and timer
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
2-pin IEC 60320 C8 or mains cable
Output terminal: Battery clips, DC conn., push-on terminals or open ends
Temp. compensation of charge voltage
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Active power factor correction
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1 and 3.2
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings.
For more info, see: Mascot CBC Module LA
Notes

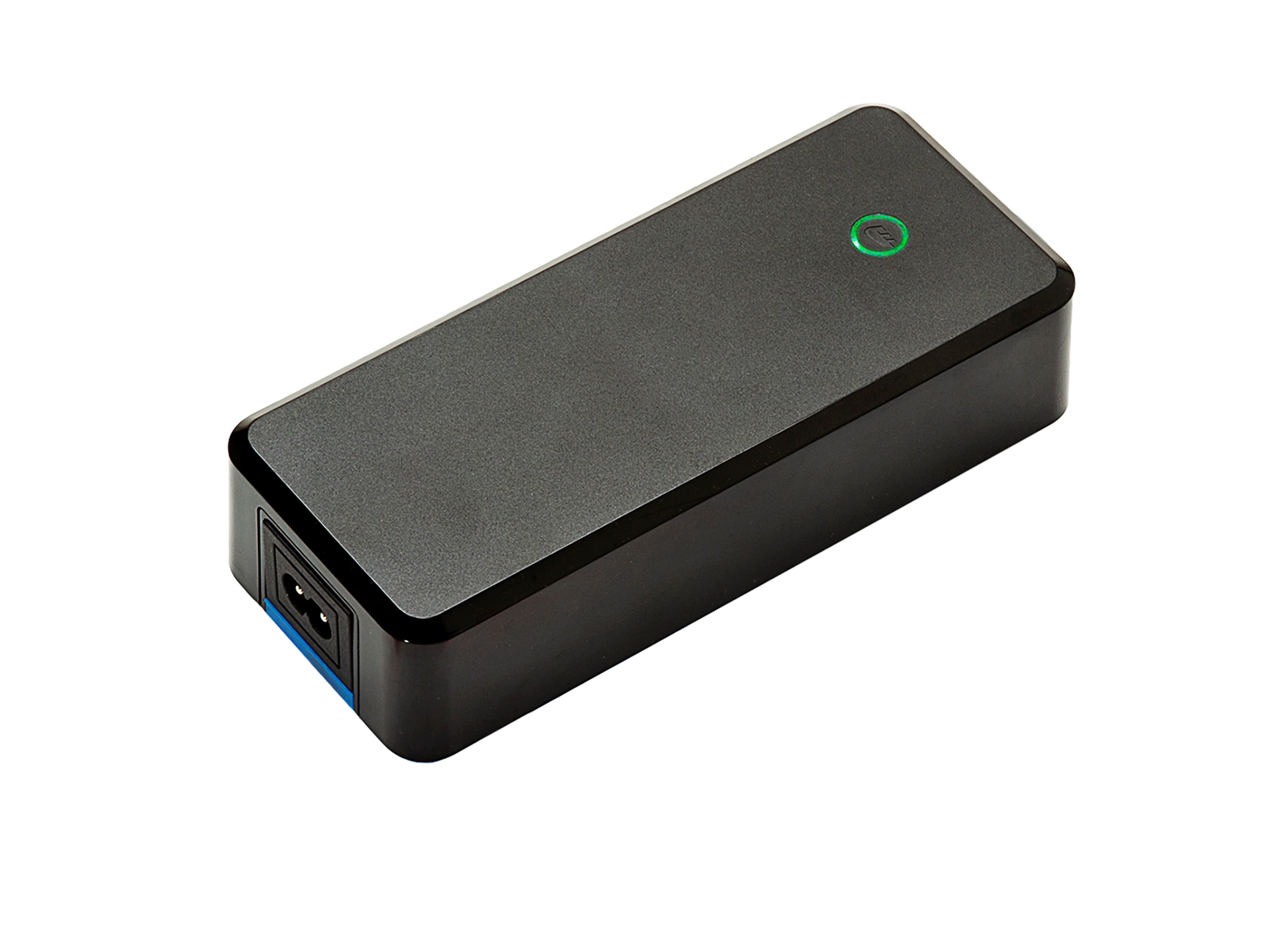

- Desktop unit
- Wall mount bracket available
- 3-pin IEC 60320 C6 on request
- With active power factor correction
- 2MOOP standard, 2MOPP available
- Wall mount bracket available

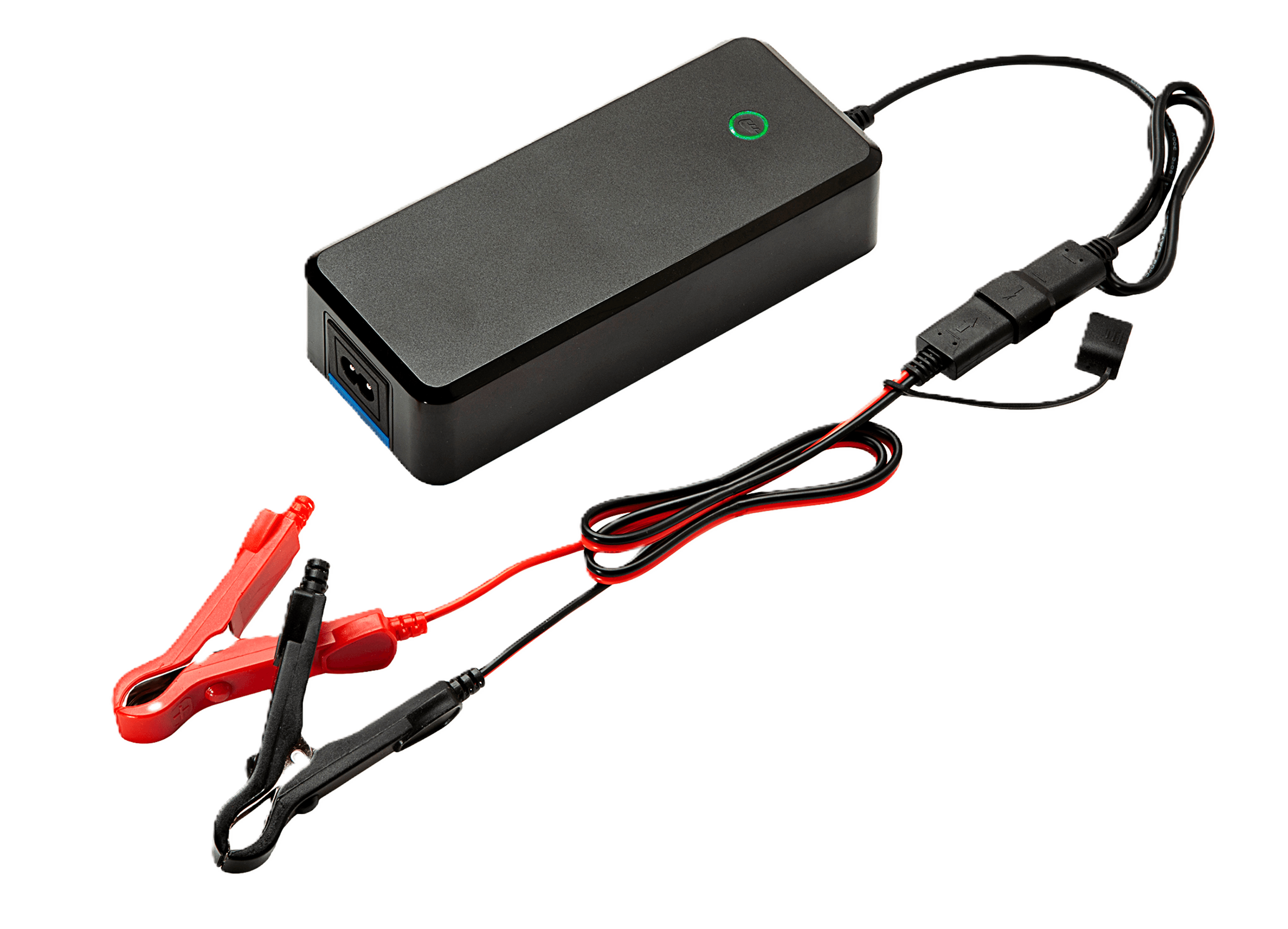

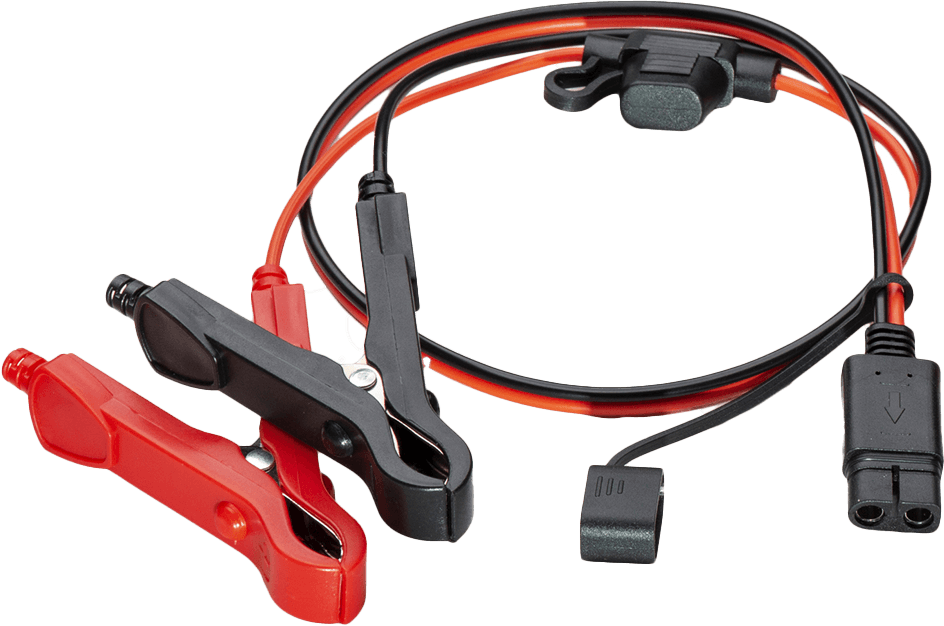

- With battery clips and temp sensor
- DC cordset: Bullet Male Conn,1.05m Coax, 16AWG, UL1185 w. SR
- Animation showing charge error indications:
- https://vimeo.com/679995332

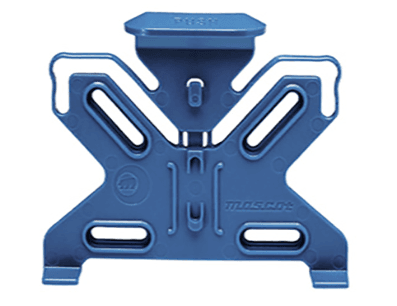

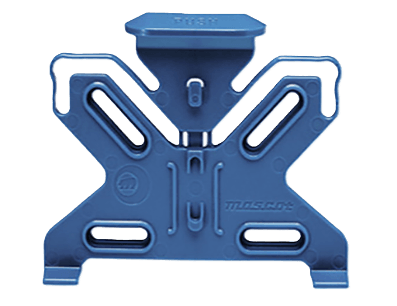

Wall Mount Bracket 172002

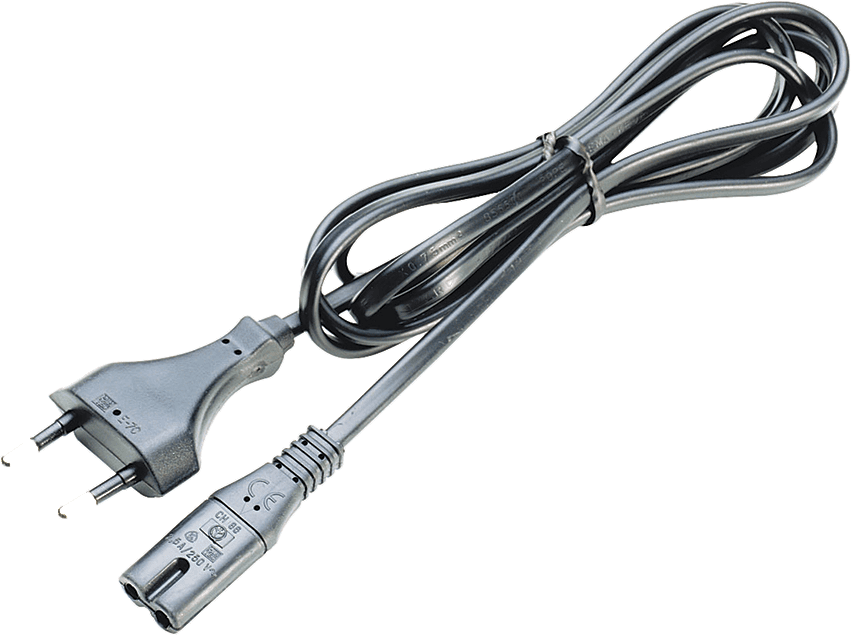

AC Cord 2-pin IEC 60320 EU

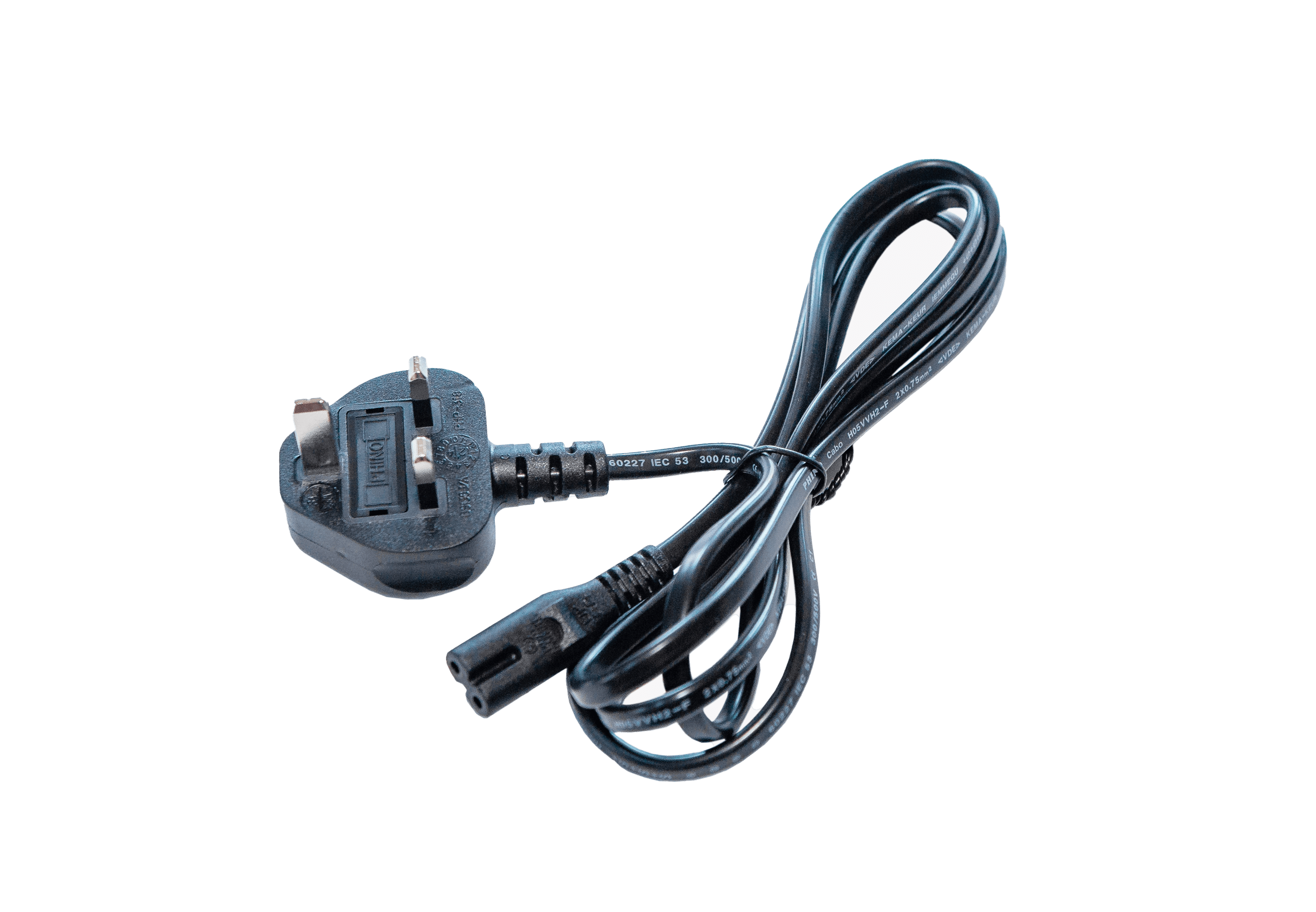

AC Cord 2-pin IEC 60320 UK

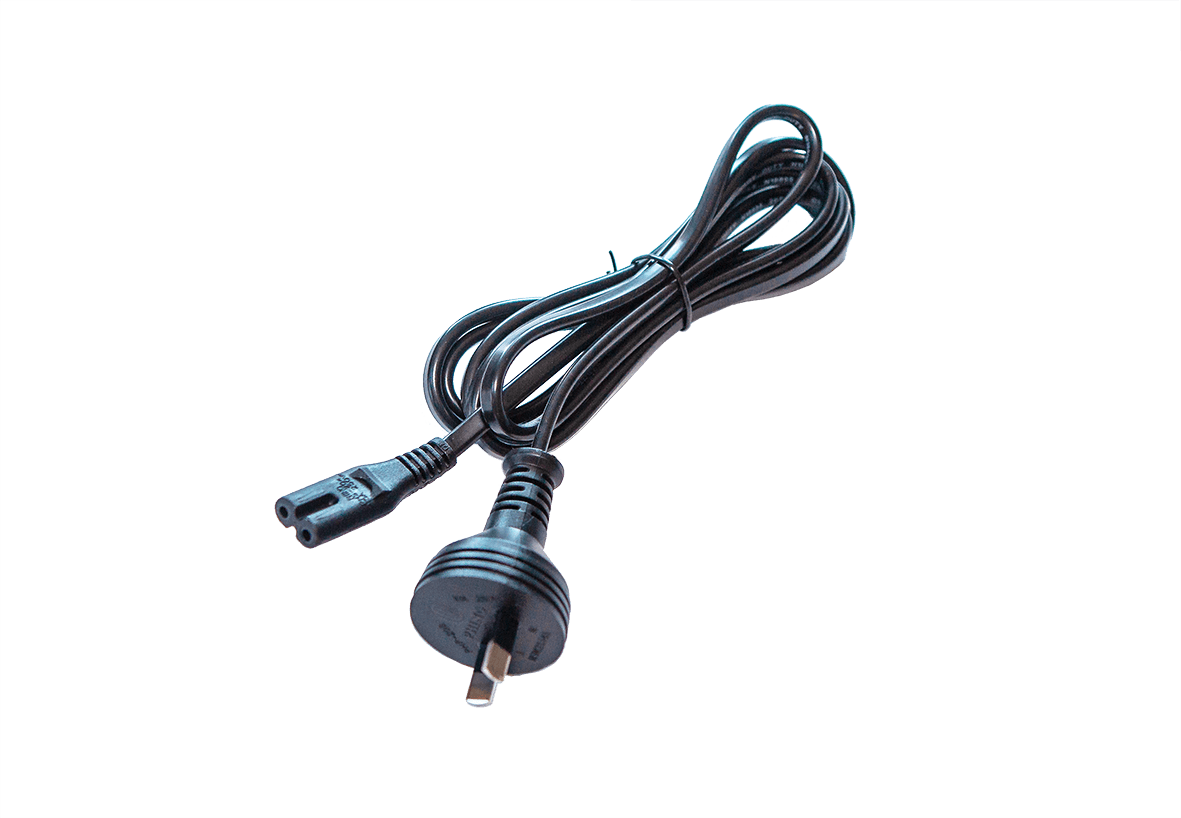

AC Cord 2-pin IEC 60320 AUS

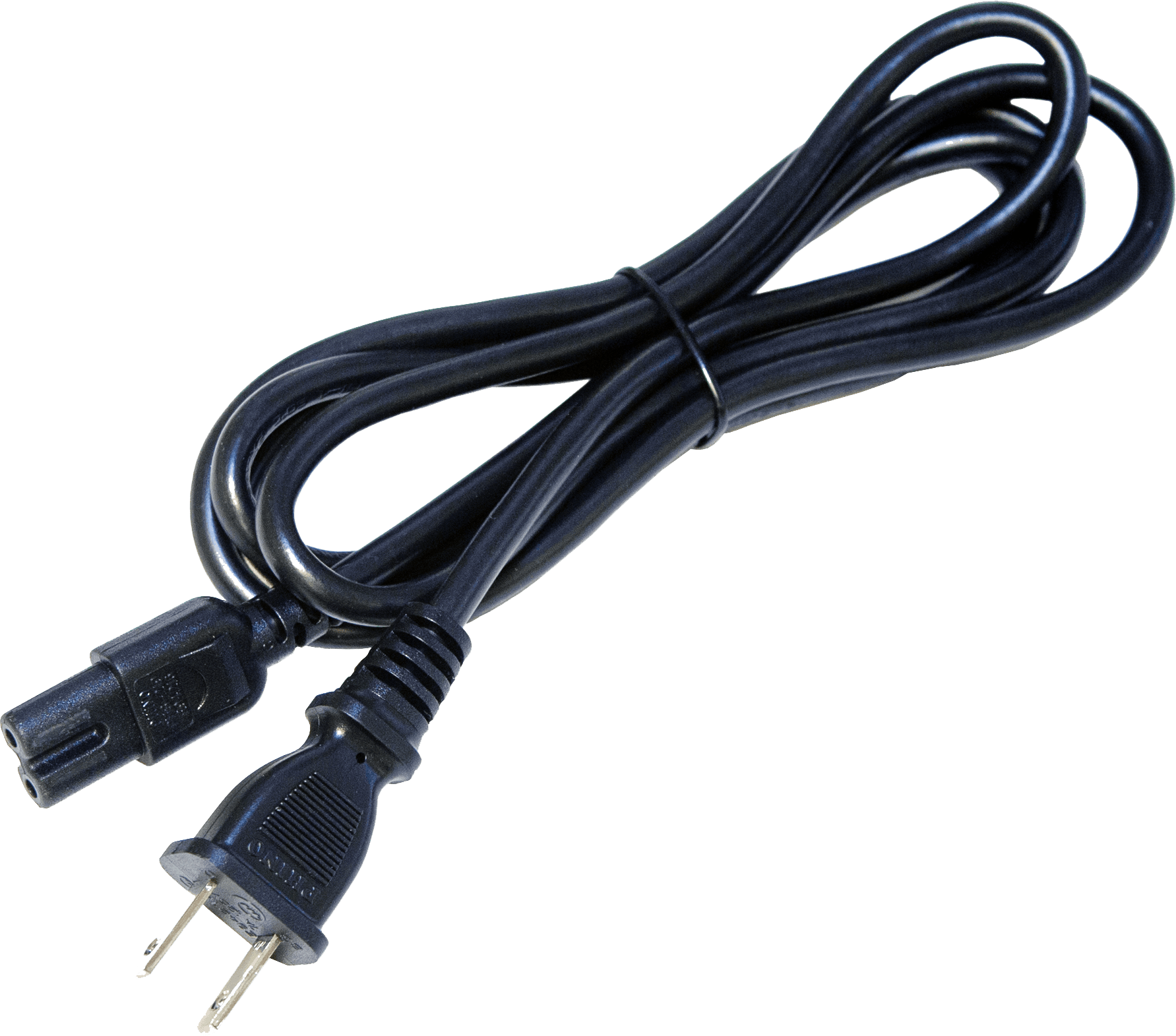

AC Cord 2-pin IEC 60320 US_

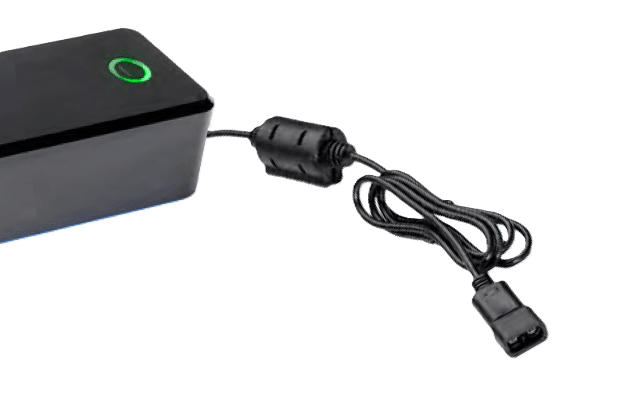

Exch DC Cable Conn Cord from charger 131685

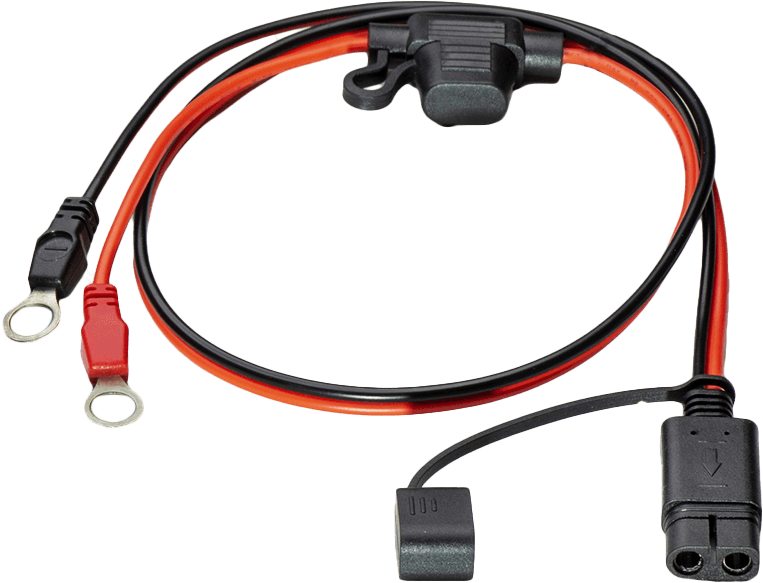

Exch DC Cable Conn Cord to battery 131686
