4340 LI

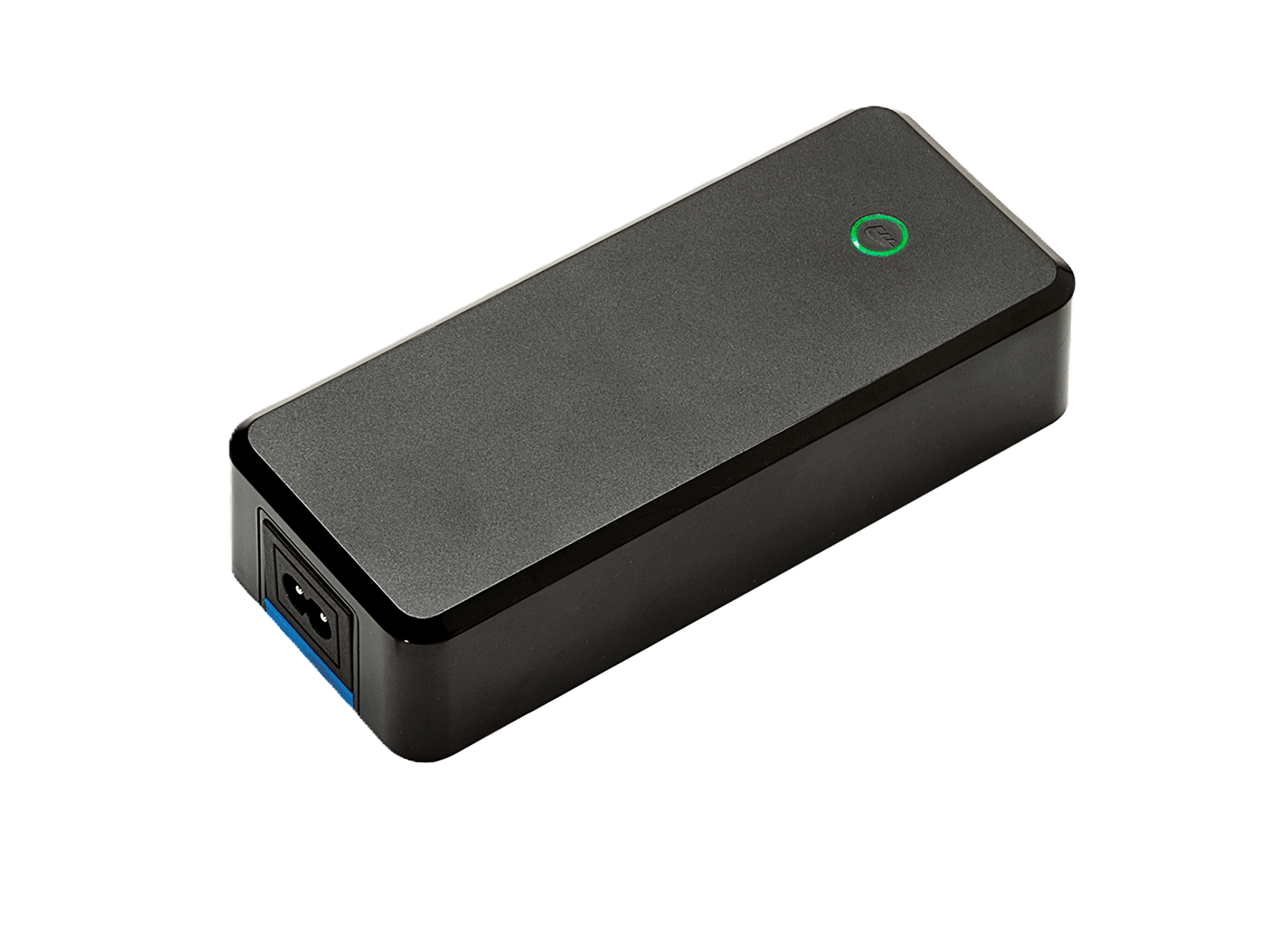

Desktop charger Li-Ion batteries, max. 8 A


Product Information

3-step charge control with current detection
Universal input voltage 90-264 VAC
2-pin IEC 60320 C8 or mains cable

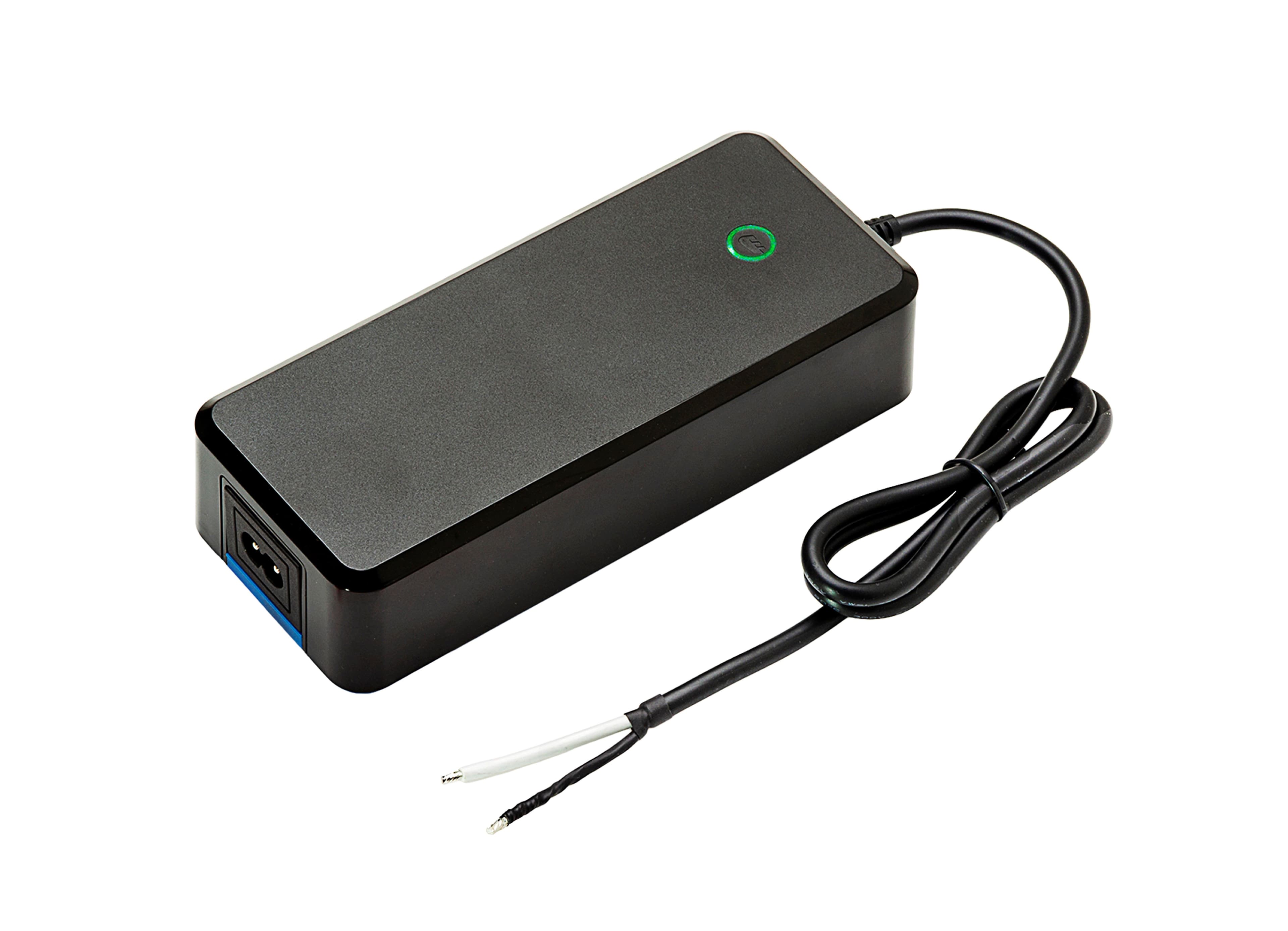

Output terminal: cord w. open ends
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out


Approvals

Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1 and 3.2
• Home healthcare EN 60601-1-11
EMC:
• EN 60601-1-2 ed. 4


Custom specifications on request

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Available versions
* On request
  • 1-cell Li-Ion *
  • 2-cell Li-Ion
  • 3-cell Li-Ion
  • 4-cell Li-Ion
  • 5-cell Li-Ion
  • 6-cell Li-Ion
  • 7-cell Li-Ion
  • 8-cell Li-Ion
  • 9-cell Li-Ion
  • 10-cell Li-Ion
  • 11-cell Li-Ion
  • 12-cell Li-Ion
  • 13-cell Li-Ion
  • 14-cell Li-Ion
Request Custom
Notes

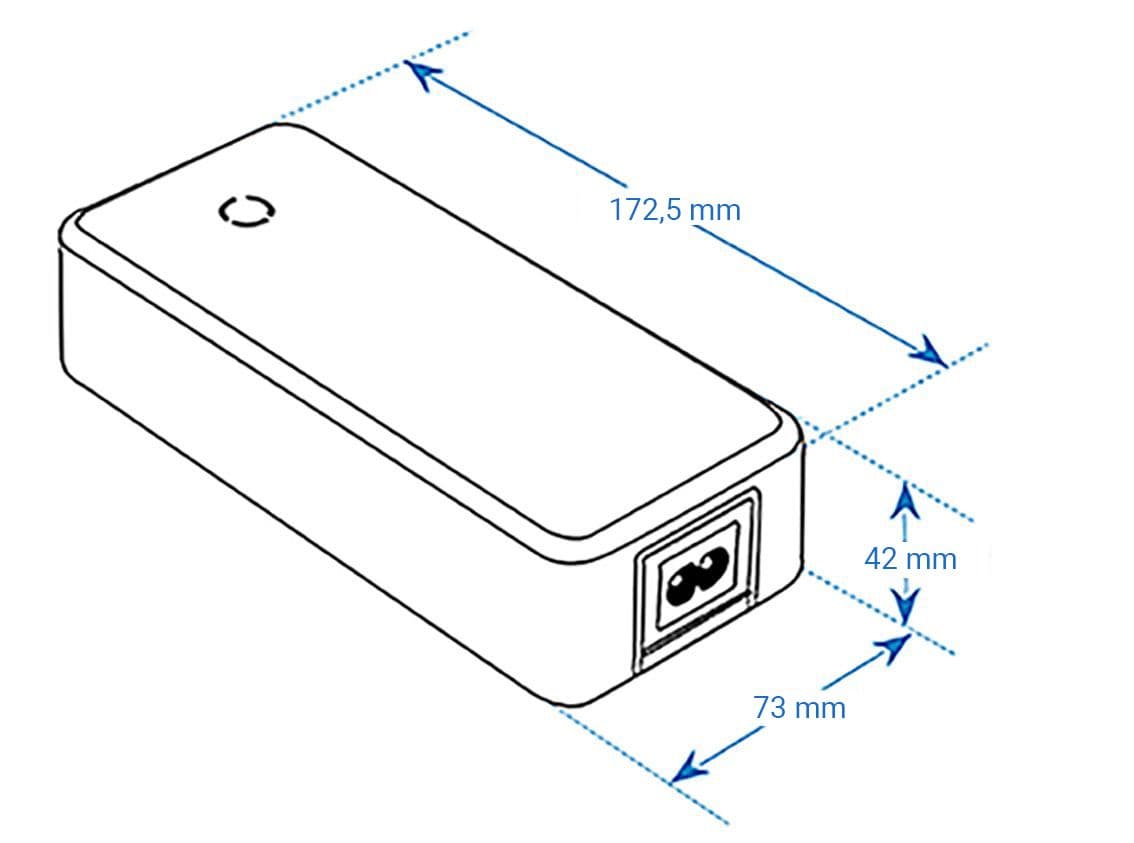

  • Desktop unit
  • Wall mount bracket available
  • 3-pin IEC 60320 C6 on request
  • With NTC input on request
  • 2MOOP standard, 2MOPP available
  • Standard DC cordset: open ends, 0.75m Coax 14AWG, Black PVC, UL1185
  • Animation showing charge error indications:
  • https://vimeo.com/679995332
