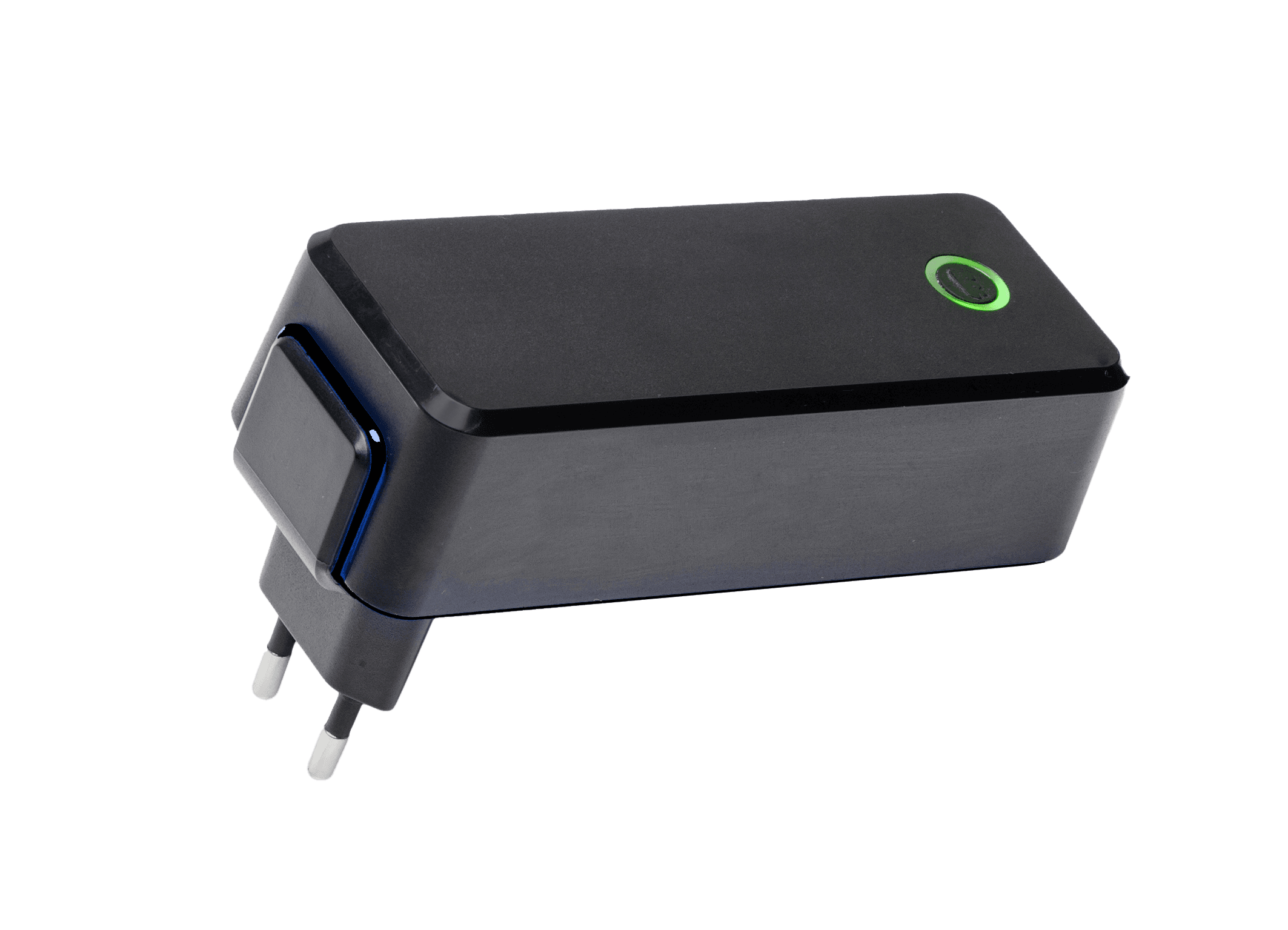

4440 LiFe
Plug-in charger LiFePO4 batteries max. 2A
Product Information
3-step charge control with current detection
Universal input voltage 90-264 VAC
Configurable (CBC toolkit)
Wake up and low current start-up of deeply discharged batteries
Safety indication and protection: Against reverse polarity, short circuit, charging battery packs with the wrong number of cells and safety timer run-out
Approvals
• CE marked
• EN IEC 63268-1
Custom specifications on request
Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings.
For more info, see: Mascot CBC Module LiFe
Notes
- Plug-in/Desktop unit

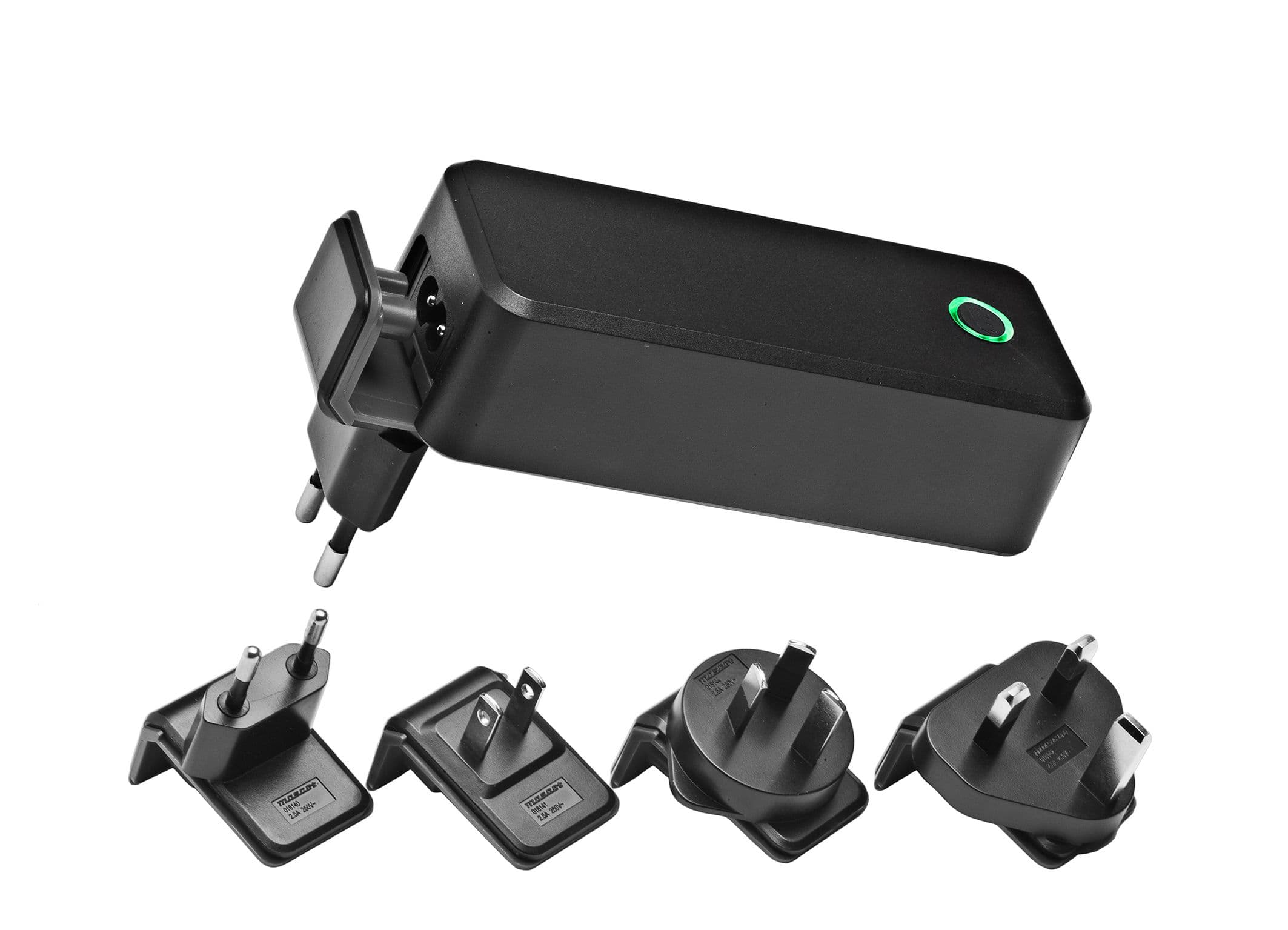

- Exchangeable AC and DC plugs available
- Order plugs & mains cord separately

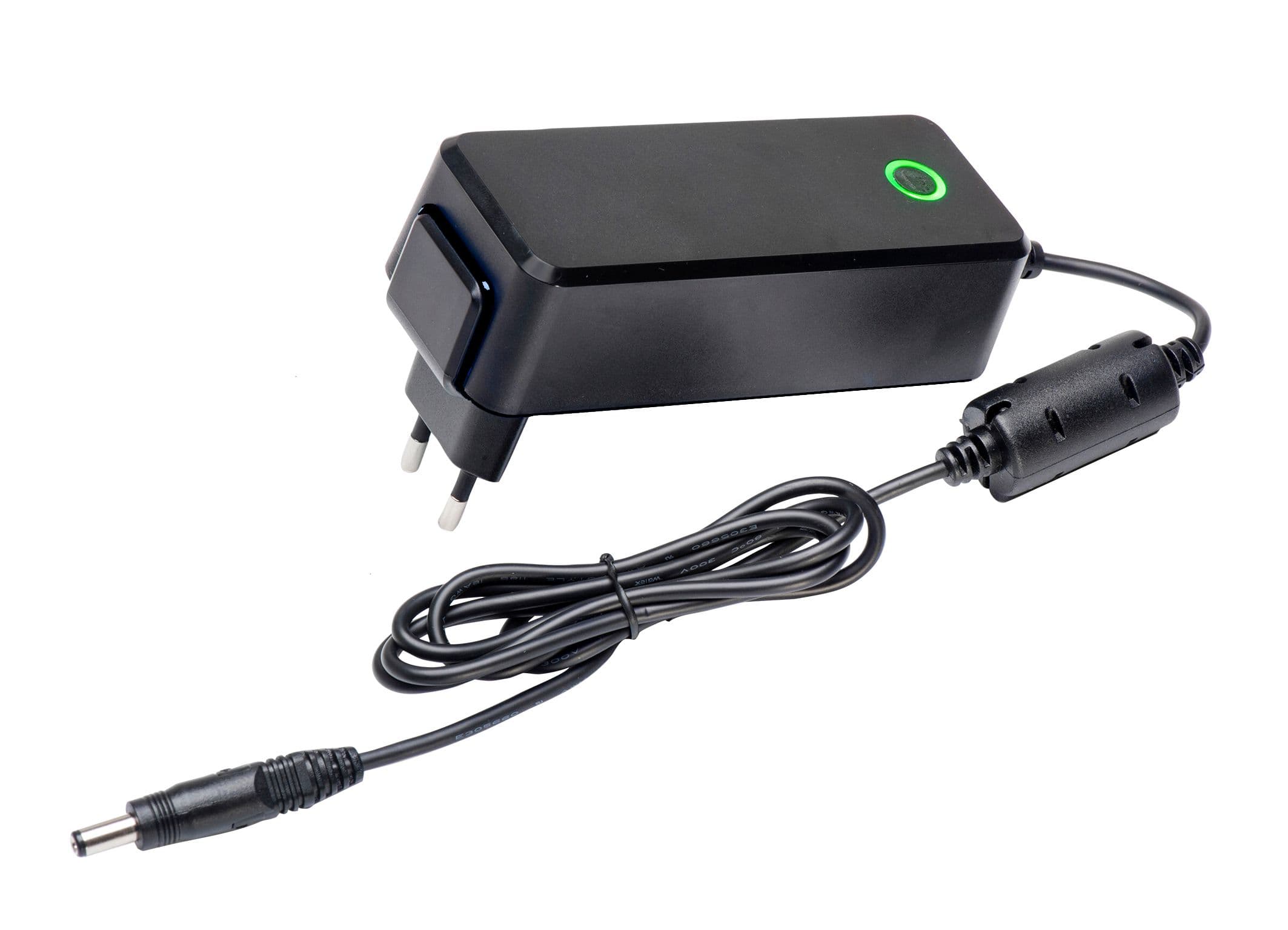

- Standard DC output cord (for exch. plugs): 0,75m, EMI Core, Coax Inner=16AWG Outer=18AWG, UL1185
- With NTC input on request
- Animation showing charge error indications:
- https://vimeo.com/679995332
Accessories
Exch AC Plug Blueline EU
Art. no:
128000
Exch AC Plug Blueline US
Art. no:
128100
Exch AC Plug Blueline UK
Art. no:
128200
Exch AC Plug Blueline AUS
Art. no:
128300
Wall Mount Bracket Exch AC Plug Blueline
Art. no:
127400
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
