4440 NiMH

Plug-in charger NiMH batt. max. 2,5A


Product Information

Universal input voltage
Configurable (CBC toolkit)
Optimized battery performance and lifetime by:
- Robust -dV sensitivity detection- Low cell temperature at end of fast charge- Top-off charge makes sure all cells are fully charged and balanced- Safety indication and protection: against reverse polarity, short circuit, charging battery packs with the wrong number of cells


Approvals

• CE marked
• EN IEC 63268-1


Custom specifications on request

Charging parameters, connectors, cords, logo print, housing/open frame/IP rating and certificates.

For more info, see: custom design page

Configurable battery charger (CBC)
The CBC module offers a range of custom charge parameter settings, including: dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold, temperature gradient adjustment.
The CBC is also configurable in field.

For more info, see: 4099 CBC module NiMH

Available versions
* On request
  • 2-cell *
  • 3-6 cell
  • 4-8 cell
  • 5-10 cell
  • 6-12 cell
  • 10-20 cell
Request Custom
Notes

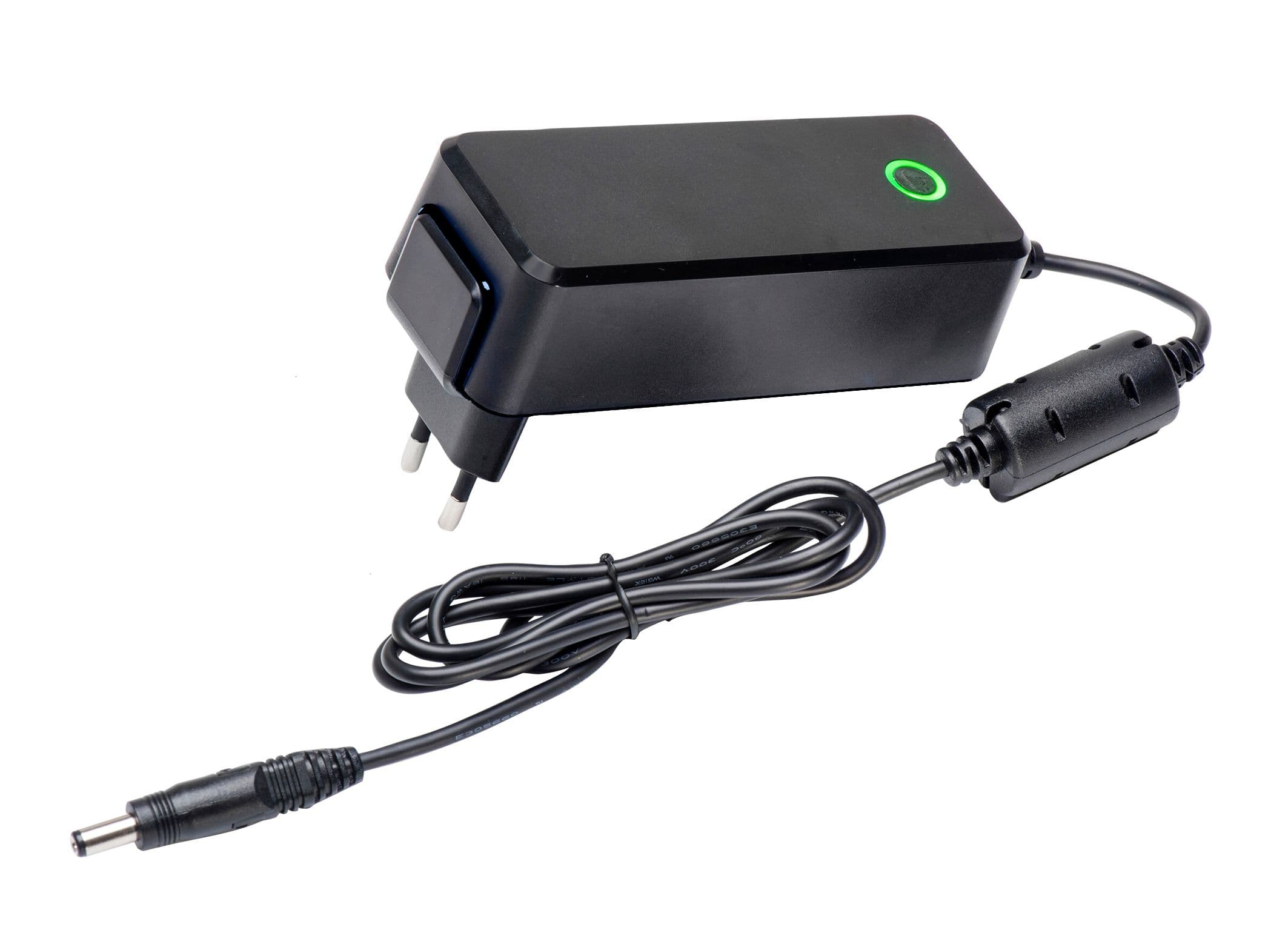

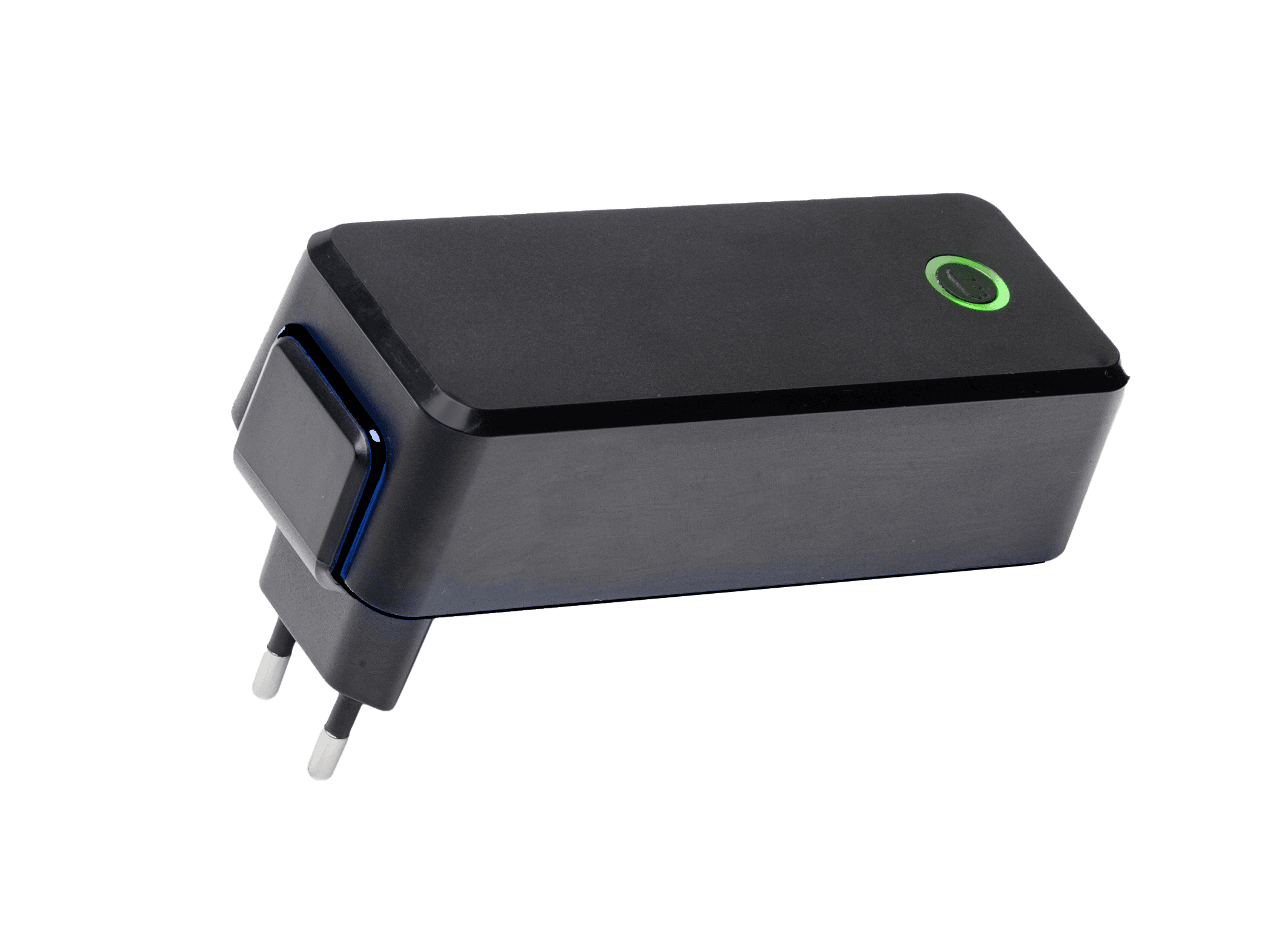

  • Plug-in/desktop unit

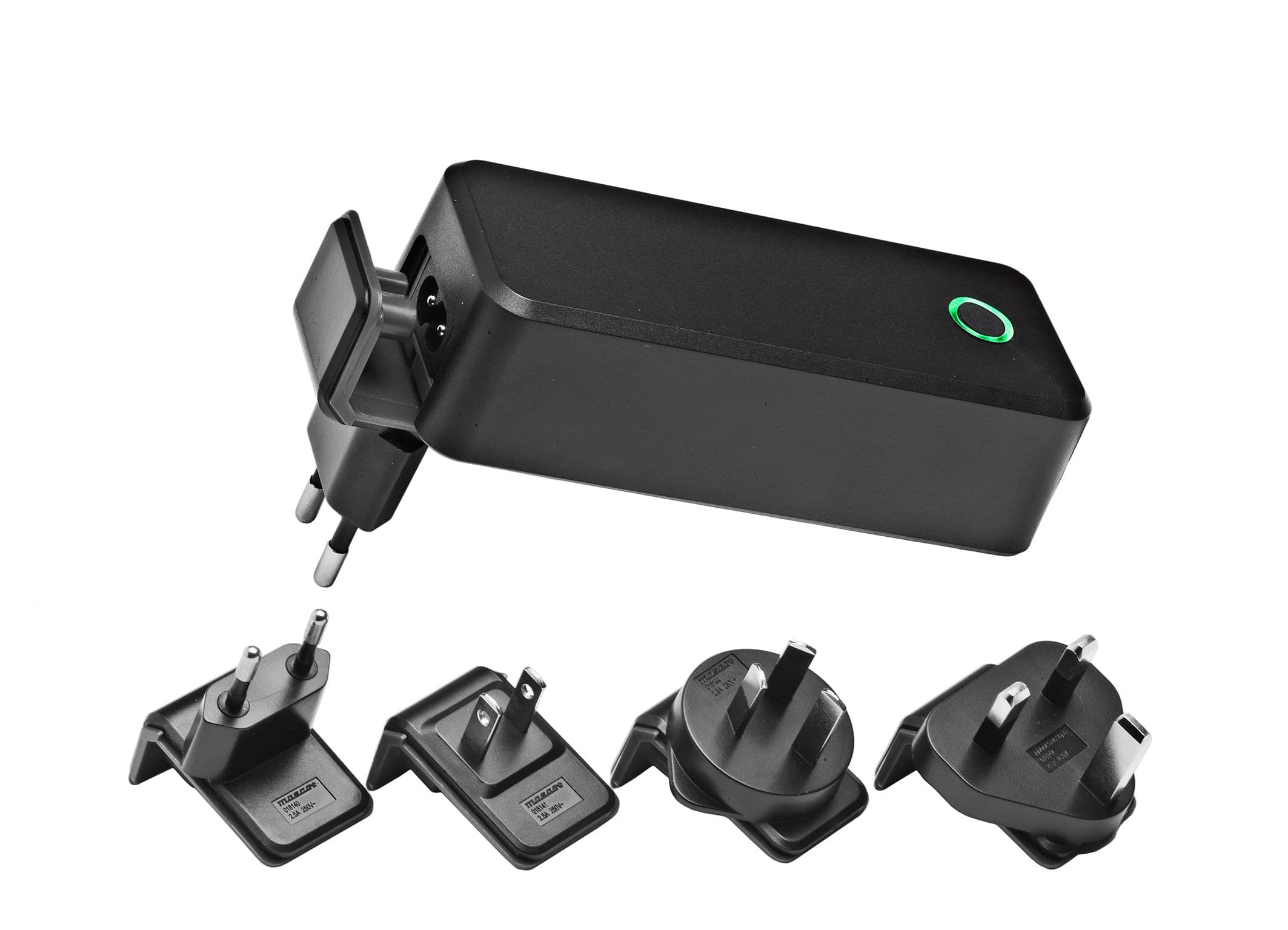

  • Exchangeable AC and DC plugs available
  • Standard DC output cord (for exch. plugs): 0,75m, EMI Core, Coax Inner=16AWG Outer=18AWG, UL1185
  • Mounting bracket available
  • Order plugs and mains cord separately
  • Animation showing charge error indications:
  • https://vimeo.com/679995332
