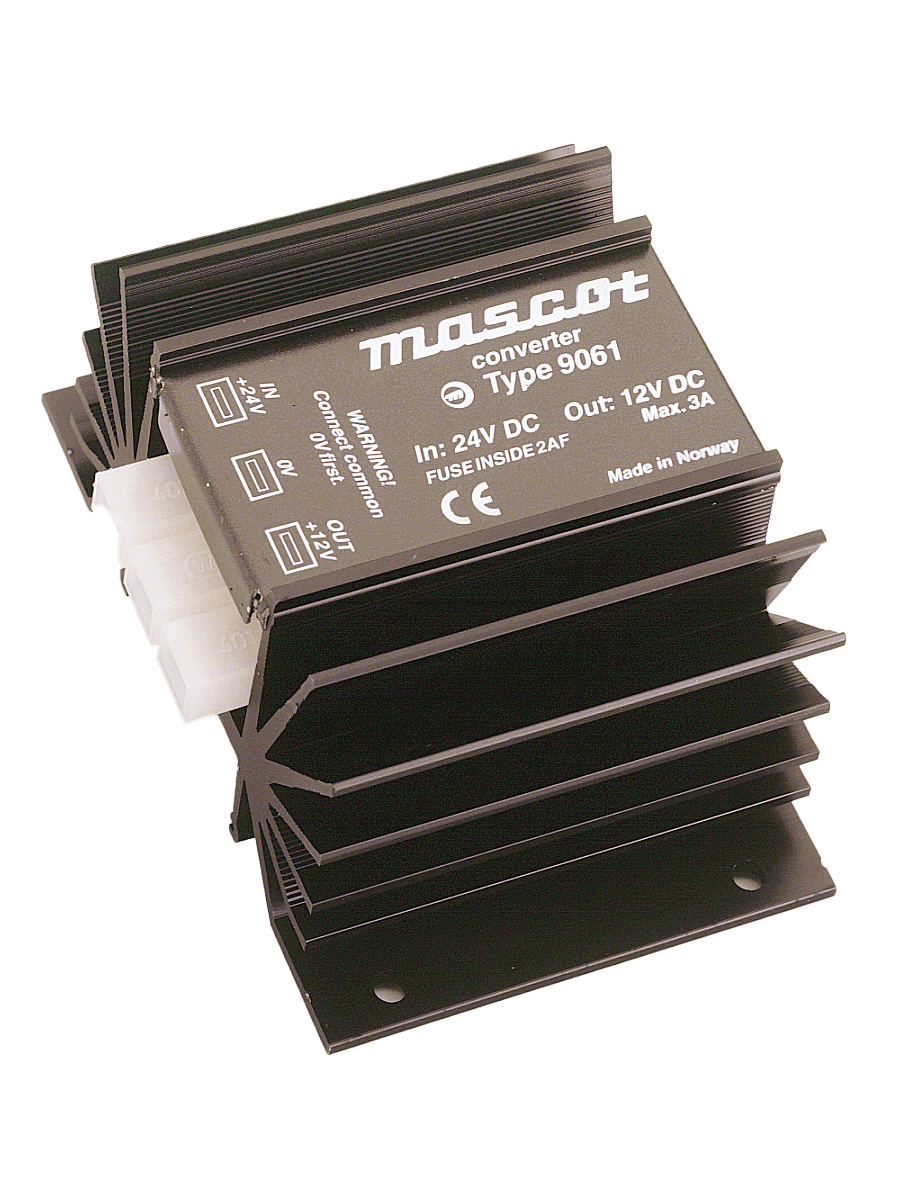

9061
DC/DC converter, desktop linear reg. max. 27 W
Product Information
Protected against reversed polarity (input)
Protected against overvoltage (output)
6,3 mm push-on terminals (input and output)
Common negative connection for input and output
CE and "E"-marked
Custom specifications on request
Some technical specifications may differ for other voltage versions
Available versions
- 12 / 5
- 12 / 6
- 12 / 7,5
- 12 / 9
- 24 / 6
- 24 / 7,5
- 24 / 9
- 24 / 12
- 24 / 12 (backup)
Notes
- Linear regulated
