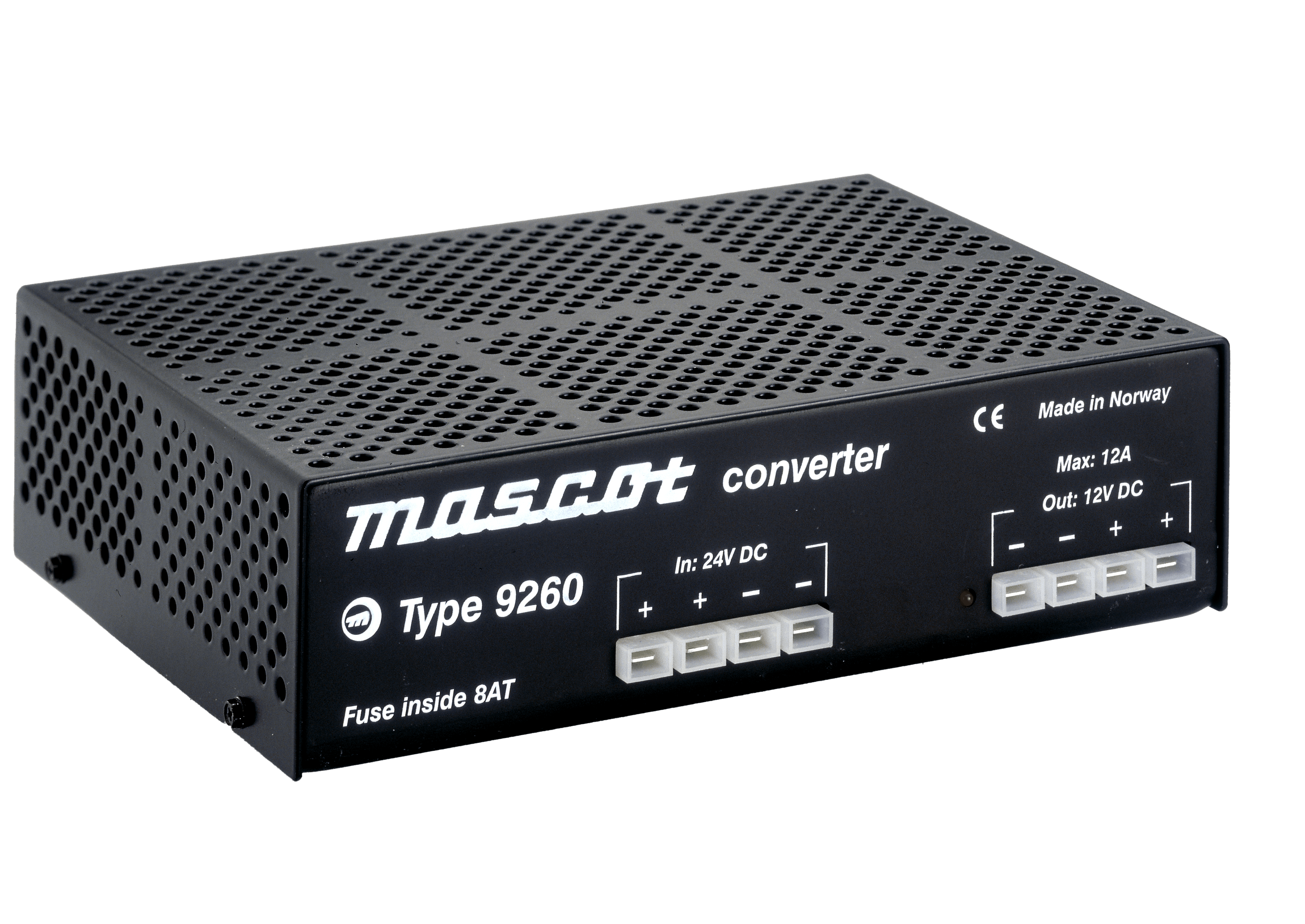

9260
DC/DC converter, switch incl. el sep. reg. max. 158 W
Product Information
Protected against reversed polarity and overvoltage (transorb diode against transients). Switches off automatically at input voltages over or under the specified range
Thermal protection, short circuit proof and overvoltage protection (output)
Input and output are electrically separated from chassis. The input is electrically separated from output
6,3 mm push-on terminals (input and output)

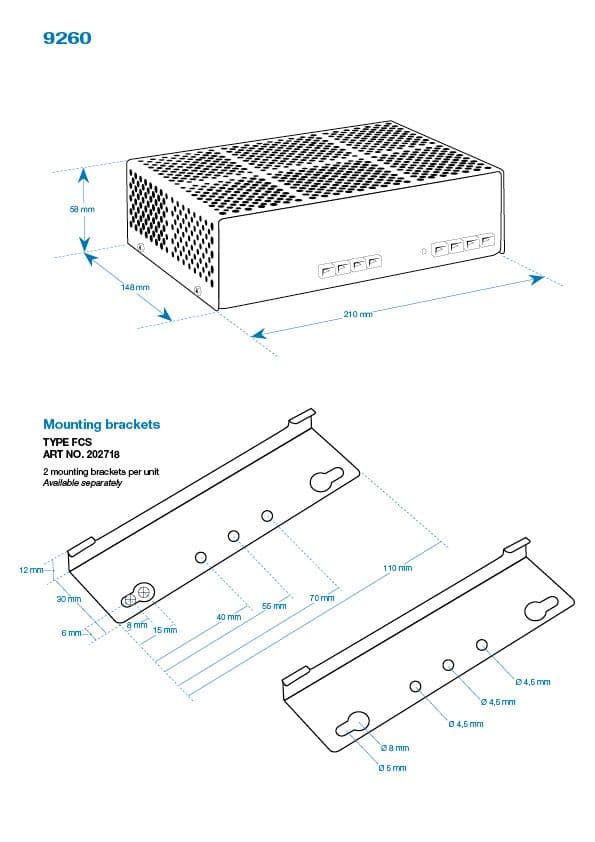

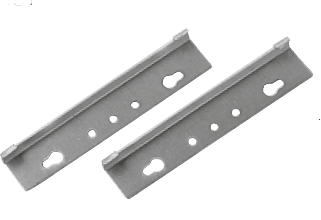

Mounting brackets available
CE and "E"-marked
Approvals
Custom specifications on request
Available versions
* On request- 10-32 / 12 V *
- 24 / 12 V *
- 24 / 24 V *
- 36 / 24 V *
- 48 / 12 V *
- 48 / 24 V *
- 48 / 48 V *
- 80 / 24 V *
Notes
- Switch incl. el sep. reg
