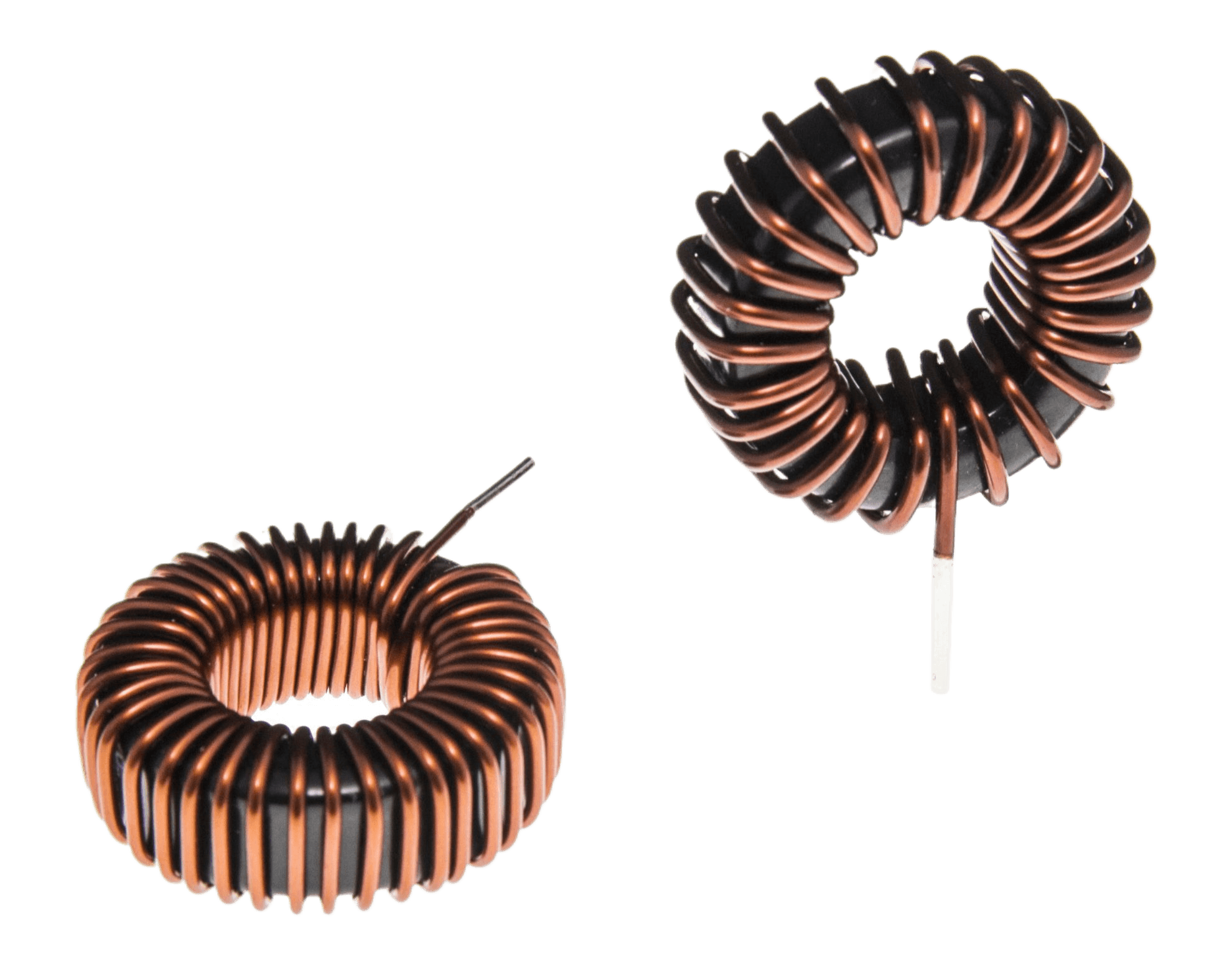

NV130S
Inductance: 10.0uH-2.2mH
Product Information
Core material: sendust
Inductance: 10.0uH-2.2mH
DC resistance（mΩ）: 4.0-1200.0

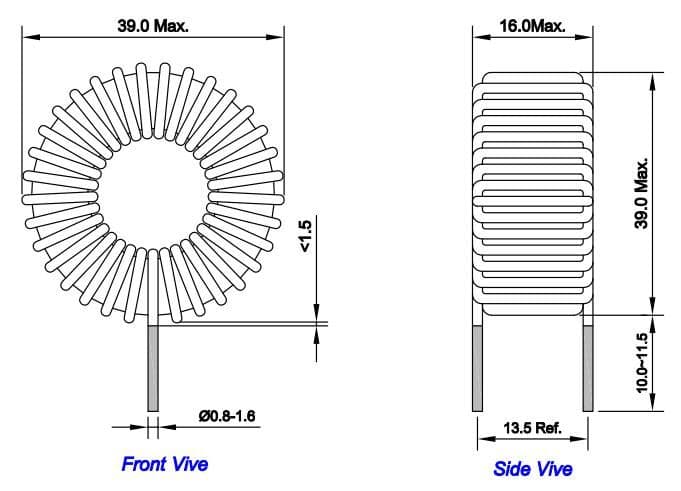

PCB Hole(mm): ø0.7/ø1.0/ø1.2/ø1.5/ø2.0
Operating temp: -65℃ to +125℃
Decrease the noise by using at 10kHz to 10MHz
It is mainly applied in AC inductor,converter,switch power supplies,
EMC filter,wind power,householding appliances

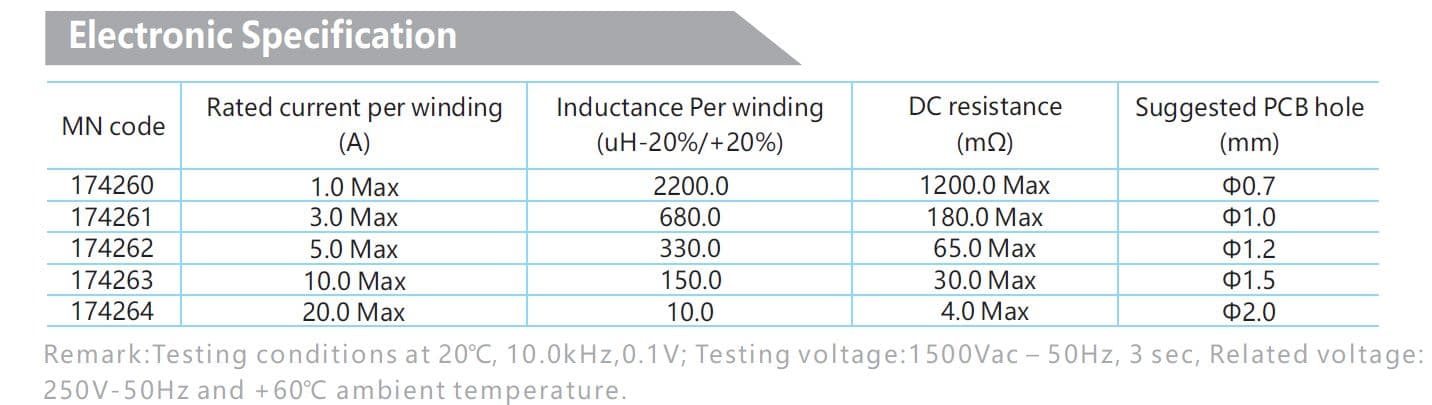

Available versions
* On request- 150.0uH/10.0A *
- 330.0uH/5.0A *
- 680.0uH/3.0A *
- 2200.0uH/1.0A *
Downloads
Tech Spec
Notes
- Core material: sendust
- Inductance: 10.0uH-2.2mH
- DC resistance（mΩ）: 4.0-1200.0
- PCB Hole(mm): ø0.7/ø1.0/ø1.2/ø1.5/ø2.0
- Operating temp: -65℃ to +125℃
