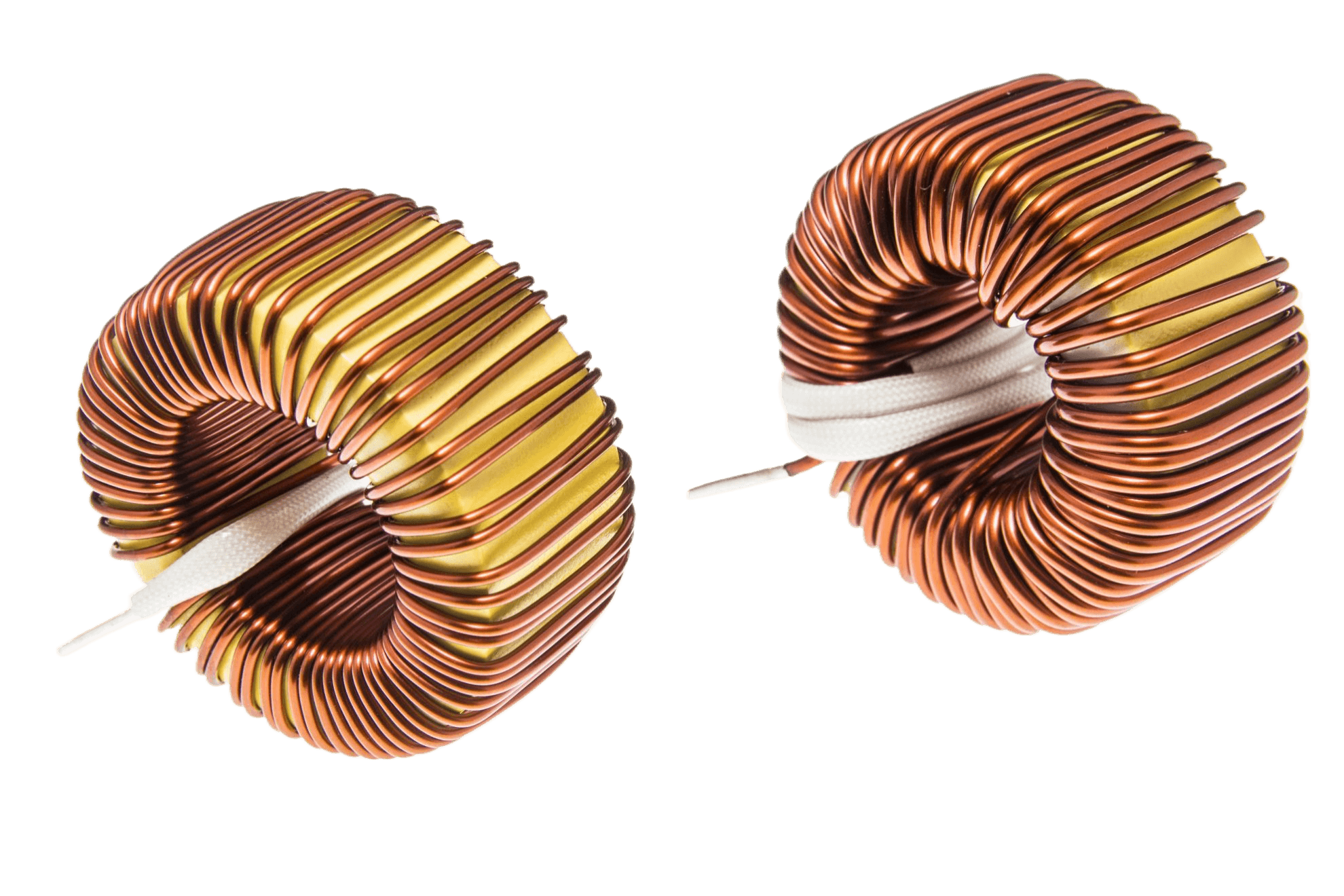

NV200I
Inductance: 100.0uH-680.0uH
Product Information
Core material: iron power
Inductance: 100.0uH-680.0uH
DC resistance（mΩ）: 5.5-60.0
PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8
Operating temp: -65℃ to +125℃
Decrease the noise by using at 10kHz to 200MHz
It is mainly applied in AC inductor, converter, switch power supplies,
EMC filter, wind power, householding appliances

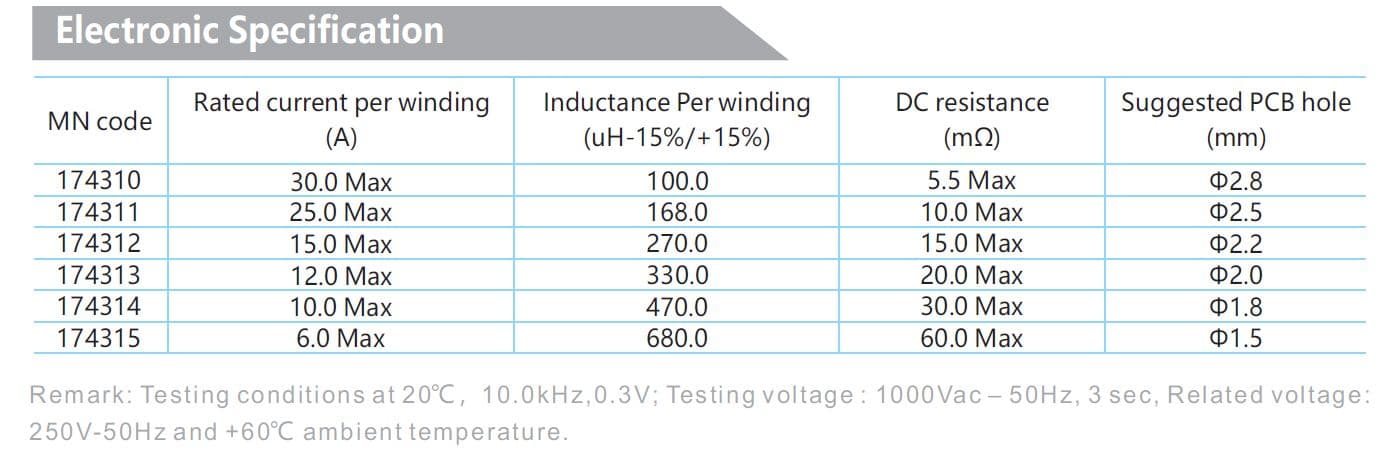

Available versions
* On request- 100.0uH/30.0A *
- 168.0uH/25.0A *
- 270.0uH/15.0A *
- 330.0uH/12.0A *
- 470.0uH/10.0A *
- 680.0uH/6.0A *
Downloads
Tech Spec
Notes
- Core material: iron power
- Inductance: 100.0uH-680.0uH
- DC resistance（mΩ）: 5.5-60.0
- PCB Hole(mm): ø1.5/ø1.8/ø2.0/ø2.2/ø2.5/ø2.8
- Operating temp: -65℃ to +125℃
