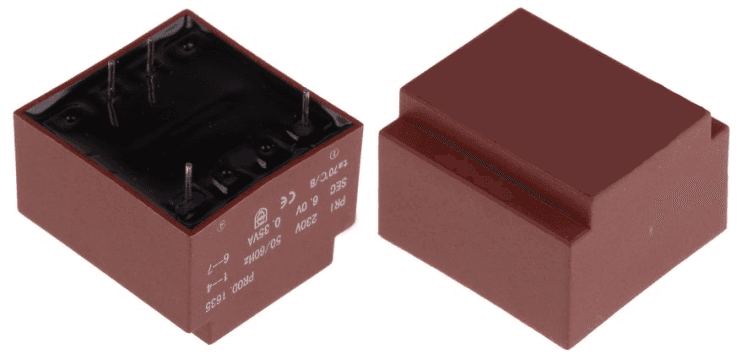

EI4816 PCB Transformer
Power 10W
Product Information
Frequency: 50/60 Hz
Primary : 230 VAC
Secondary: 2x6; 2x9; 2x12; 2x15; 2x18
Isolation: 4 kV RMS
Temp. class: B (130°)

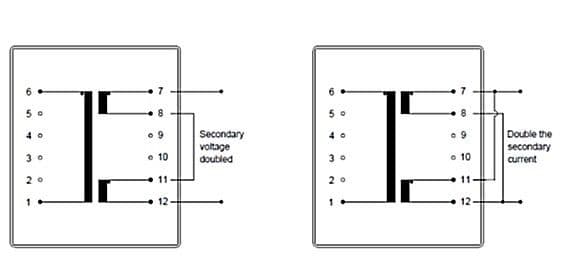

Independent secondary windings suitable for series/parallel connection to give a wide range of output voltage and current options
High efficiency and low temperature rise
Double section bobbin
Low interwinding capacity
Low radiated noice
100% electrical and flash tested accoriding to EN61558-1 , EN61558-2-6
Custom specifications on request
Contact us at once for Custom Inductive components solutions
Available versions
* On request- 7.5VA/2*6V *
- 7.5VA/2*12V *
- 7.5VA/2*15V *
- 10VA/2*9V *
- 10VA/2*12V *
Downloads
Tech Spec
Notes
- Frequency: 50/60 Hz
- Primary : 230 VAC
- Secondary: 2x6; 2x9; 2x12; 2x15; 2x18
- Isolation: 4 kV RMS
- Temp. class: B (130°)
- According to: EN61558-1, EN61558-2-6
