4099 LiFePO4 Config tool

CBC Configurable Battery Charger Toolkit

Product Information

The CBC Toolkit is ideal for optimizing battery performance for a wide range of applications. There are 37 parameter settings and 9 additional enable/disable functions available.

The CBC module offers a range of custom charge parameter settings, including: dV, dT/dt, 0 dV, Timer, Safety timer, dV threshold, temperature gradient adjustment. The CBC is also configurable in field.

Software, instructional videos and other config tool documents are available for downloading - see download section.

Key configuration / charge detection variables:
• - dV levels in mV (minimum detection level approx. 1mV/cell)
• dT/dt detection level °C/minute
• NTC parameters (nominal value and β-value)
• Temperature limits (Hot, cold, charge pause ++)
• Charge currents
• Timers: dV mask timer to prevent premature -dV detection, Soft start timer, Top-off timer, Trickle timer and safety timer

EoC methods and functions (enable/disable):
• -dV
• dT/dt
• No EoC - Constant current Charger
• NTC mandatory. This will stop the charge cycle if NTC is missing or not working properly
• Read and/or write protected configuration

The CBC system is easy to set-up and connect
1. Select Mascot standard to configure

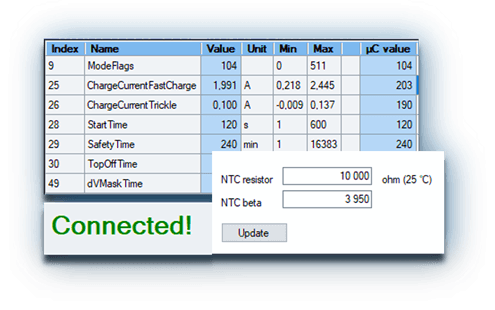

2. Connect the charger and set-up the communication
3. Make the custom configurations
4. Send the new parameter(s) to the charger

Included in the toolbox:

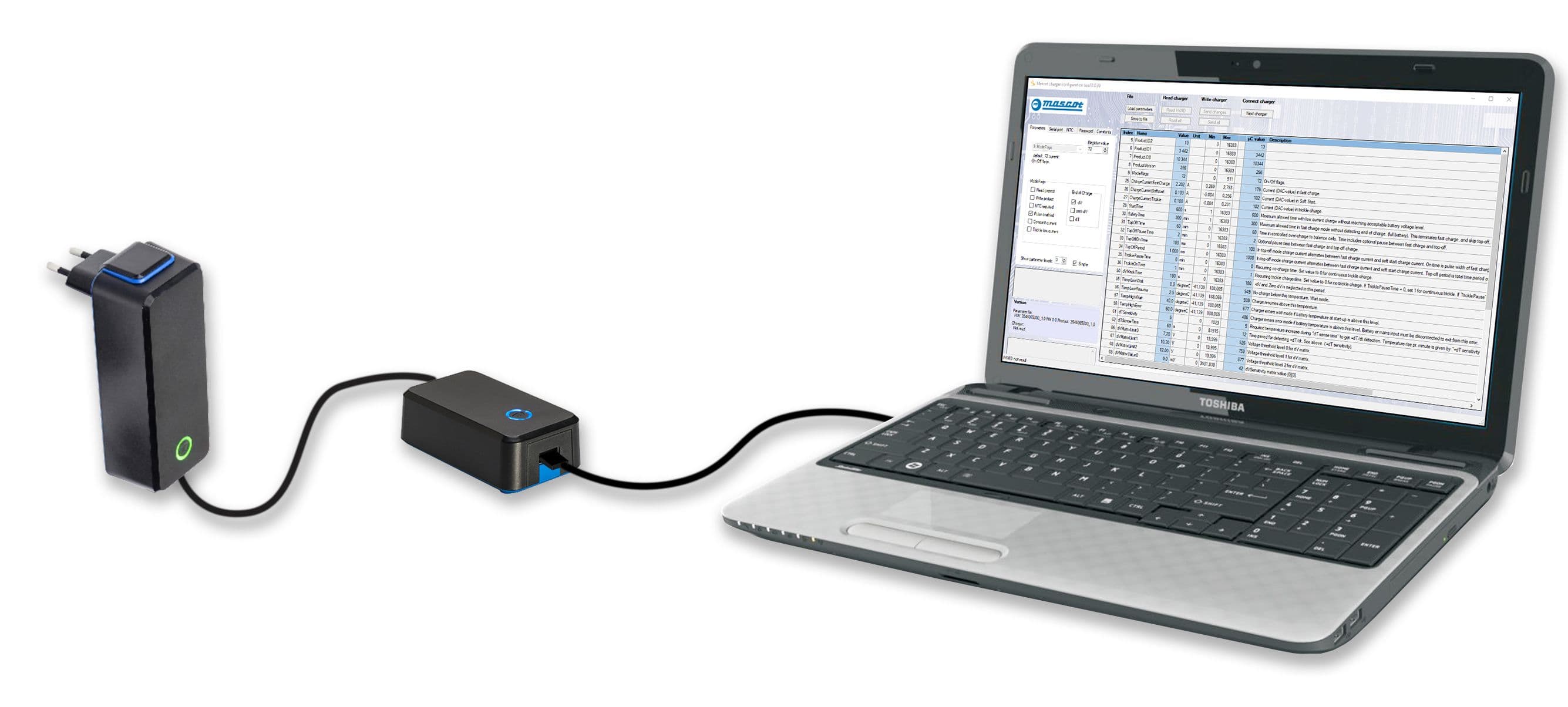

• Mascot CBC module (hardware interface)
• 3546 NiMH CBC Battery Charger
• 3743 NiMH CBC Battery Charger
• USB Cable for connecting to a PC
• Mascot Configuration Software
• Printed user guide and videos with user instructions
