3220

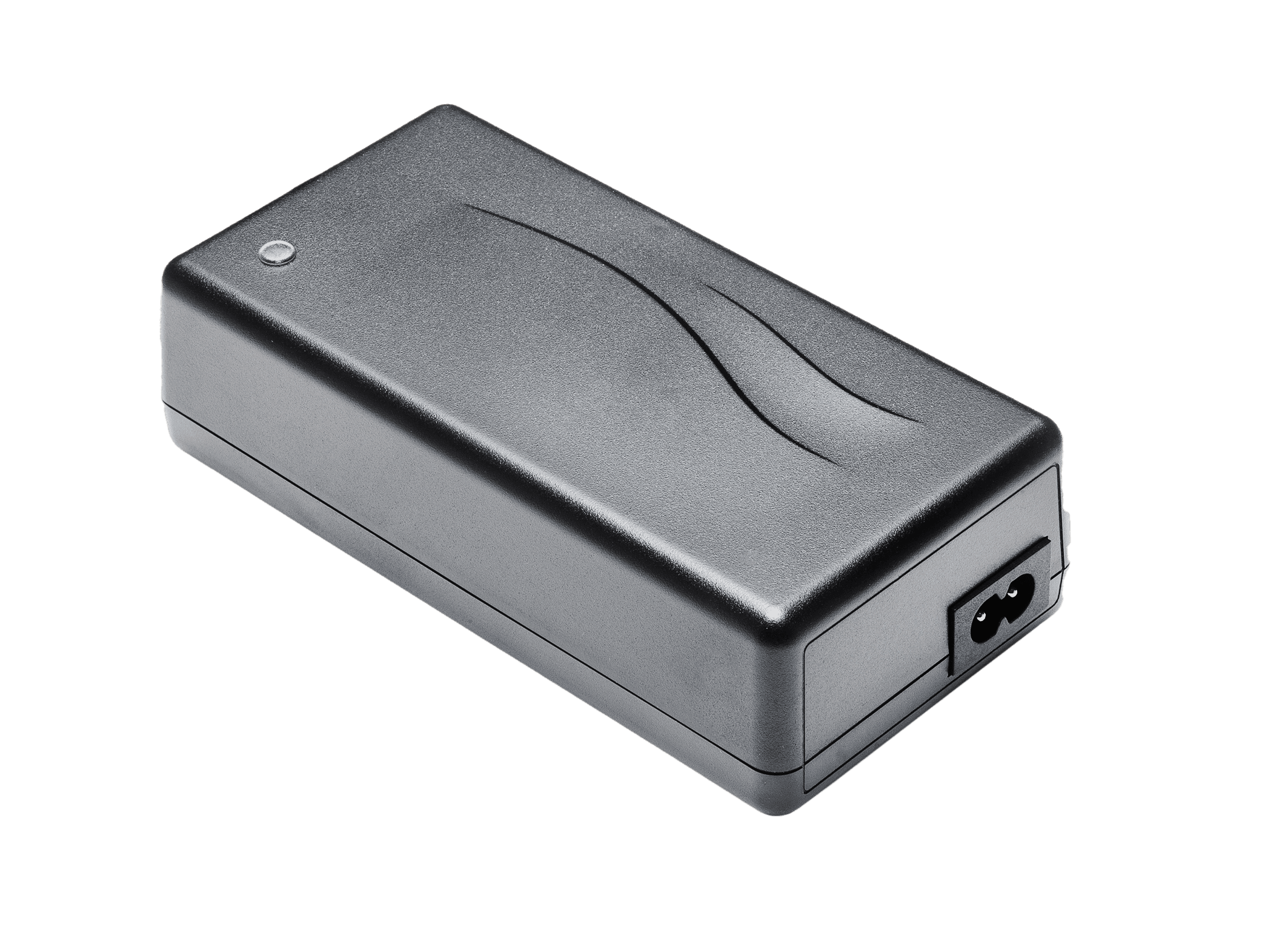

Desktop power supply, max. 106 W
Product Information
Fixed output voltages
2-pin IEC 320 connector, 3-pin or fixed mains cord on request
Waterproof (IP67) version available
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
Custom specifications on request
Custom specifications on request: output voltage, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Desktop
- Autodetect 115/230VAC
- 2-pin IEC 60320
- Exchangeable DC plugs (≥24V)
- Standard DC output cord for exch. plugs (≥24V): 1.2m Coax 18AWG, UL1185
- Standard DC Cordset w. open ends (<24V): 0,75m EMI Core, Coax Inner=16AWG Outer=18AWG, UL1185
- Mounting bracket available
- Order plugs and mains cord separately
Accessories
Wall Mount Bracket Type L 201970
Art. no:
201970
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
