3721
Plug-in/desktop power supply, 90-264 VAC, max. out 42W
Product Information
Universal input voltage (90-264VAC)
Fixed output voltages
Short circuit proof
ECO-design compliance:
CoC Tier 2, DoE level VI, CEC, MEPS
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Custom specifications on request: output voltage, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Plug-in/desktop unit
- 90-264V

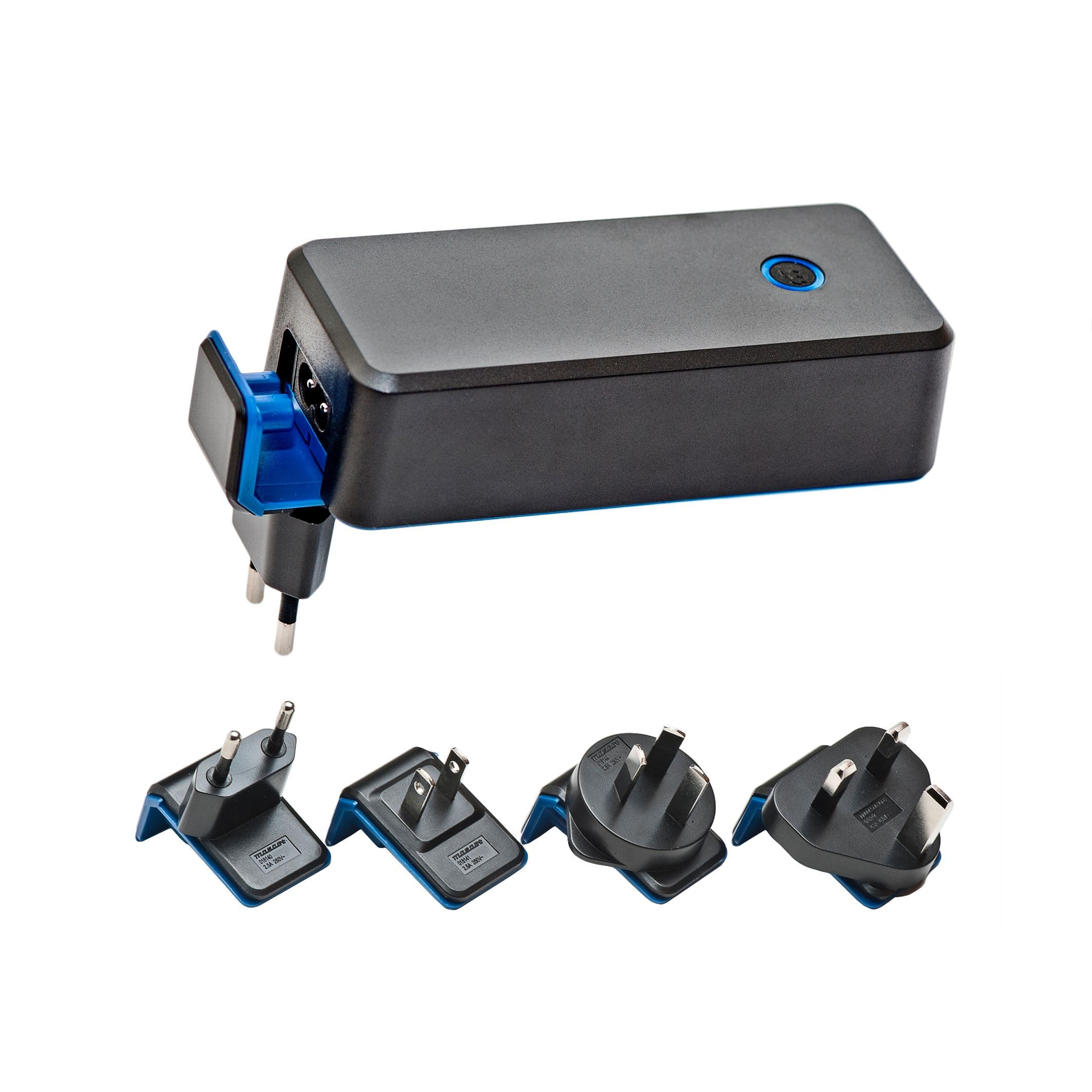

- Exchangeable AC and DC plugs
- Standard DC output cord for exch. plugs (9-24V): 1.2m Coax 18AWG, UL1185
- Standard DC output cord for exch. plugs 6-7,5V): 1,2m, EMI Core, Coax 16AWG, UL1185
- Order plugs and mains cord separately
Accessories
Exch AC Plug Blueline EU
Art. no:
128000
Exch AC Plug Blueline US
Art. no:
128100
Exch AC Plug Blueline UK
Art. no:
128200
Exch AC Plug Blueline AUS
Art. no:
128300
Wall Mount Bracket Exch AC Plug Blueline
Art. no:
127400
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201
Art. no:
131125
Size (mm):
L9.5 ⌀2.35/0.7
Exch DC Plug EIAJ 53202
Art. no:
131126
Size (mm):
L9.5 ⌀4/1.7
Exch DC Plug EIAJ 53203
Art. no:
131127
Size (mm):
L9.5 ⌀4.75/1.7
Exch DC Plug EIAJ 53204
Art. no:
131128
Size (mm):
L9.5 ⌀5.5/3.3
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615
Art. no:
131123
Size (mm):
L14.5 ⌀3.5
Exch DC Plug 3617
Art. no:
131120
Size (mm):
L12 ⌀5.5/2.5
Exch DC Plug 3618
Art. no:
131193
Size (mm):
L9.3 ⌀5.5/2.45
Exch DC Plug 3620
Art. no:
131124
Size (mm):
L11.5 ⌀2.5
Exch DC Plug 3627
Art. no:
131122
Size (mm):
L14 ⌀6.2/1.97
Exch DC Plug 3630
Art. no:
131119
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3630A
Art. no:
131192
Size (mm):
L12 ⌀5.5/2.1
Exch DC Plug 3635
Art. no:
131121
Size (mm):
L9 ⌀3.8/1.3
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
