3825

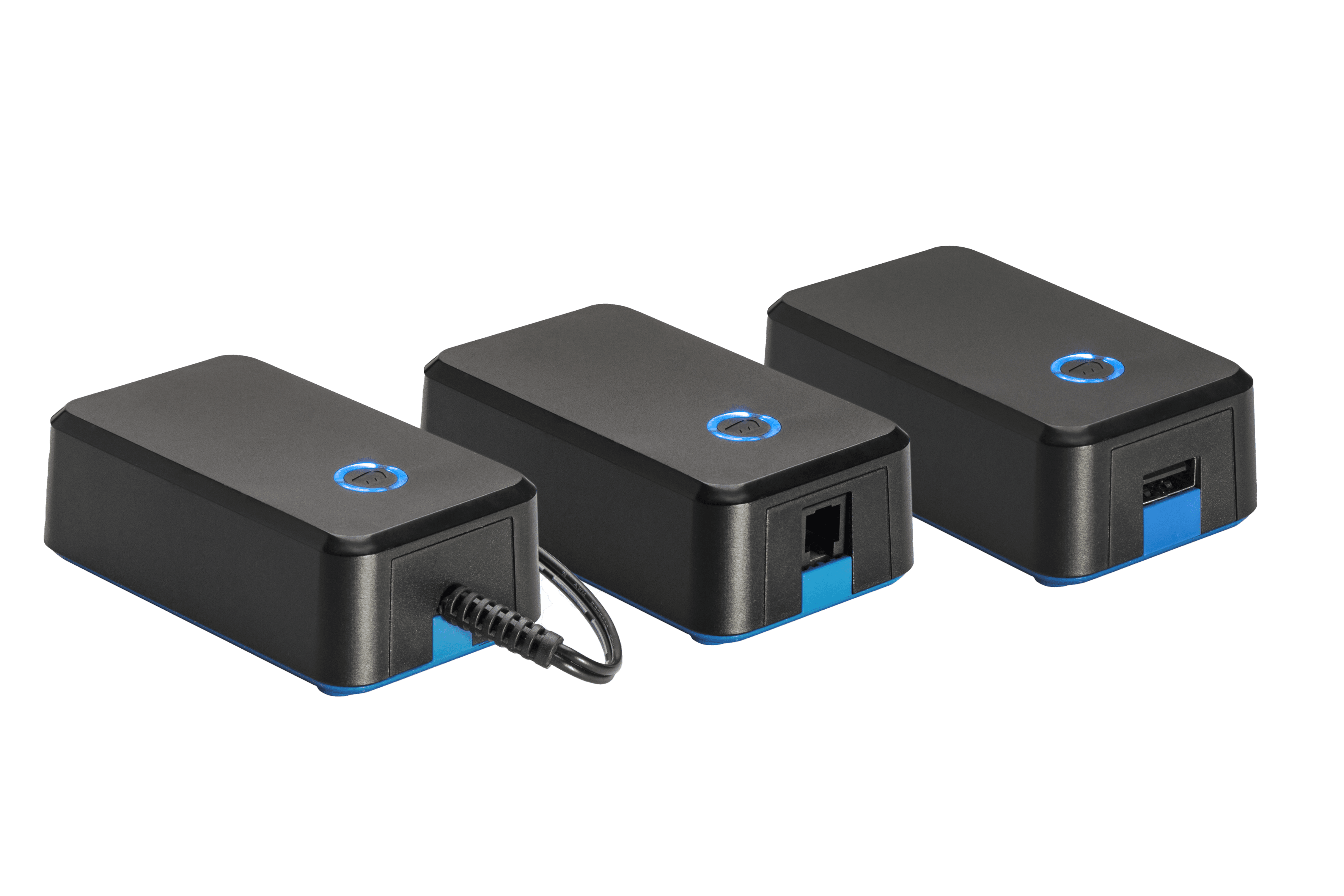

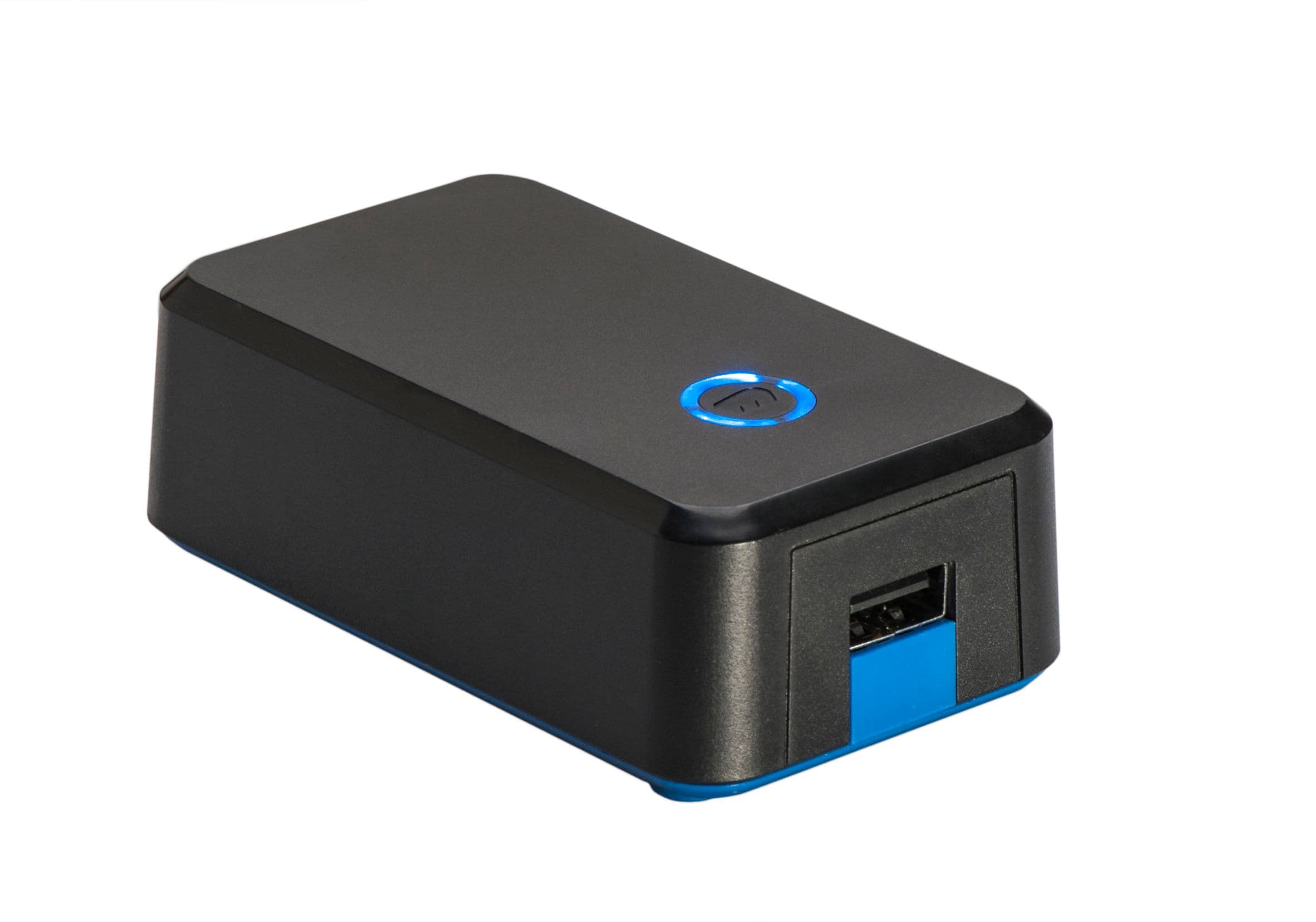

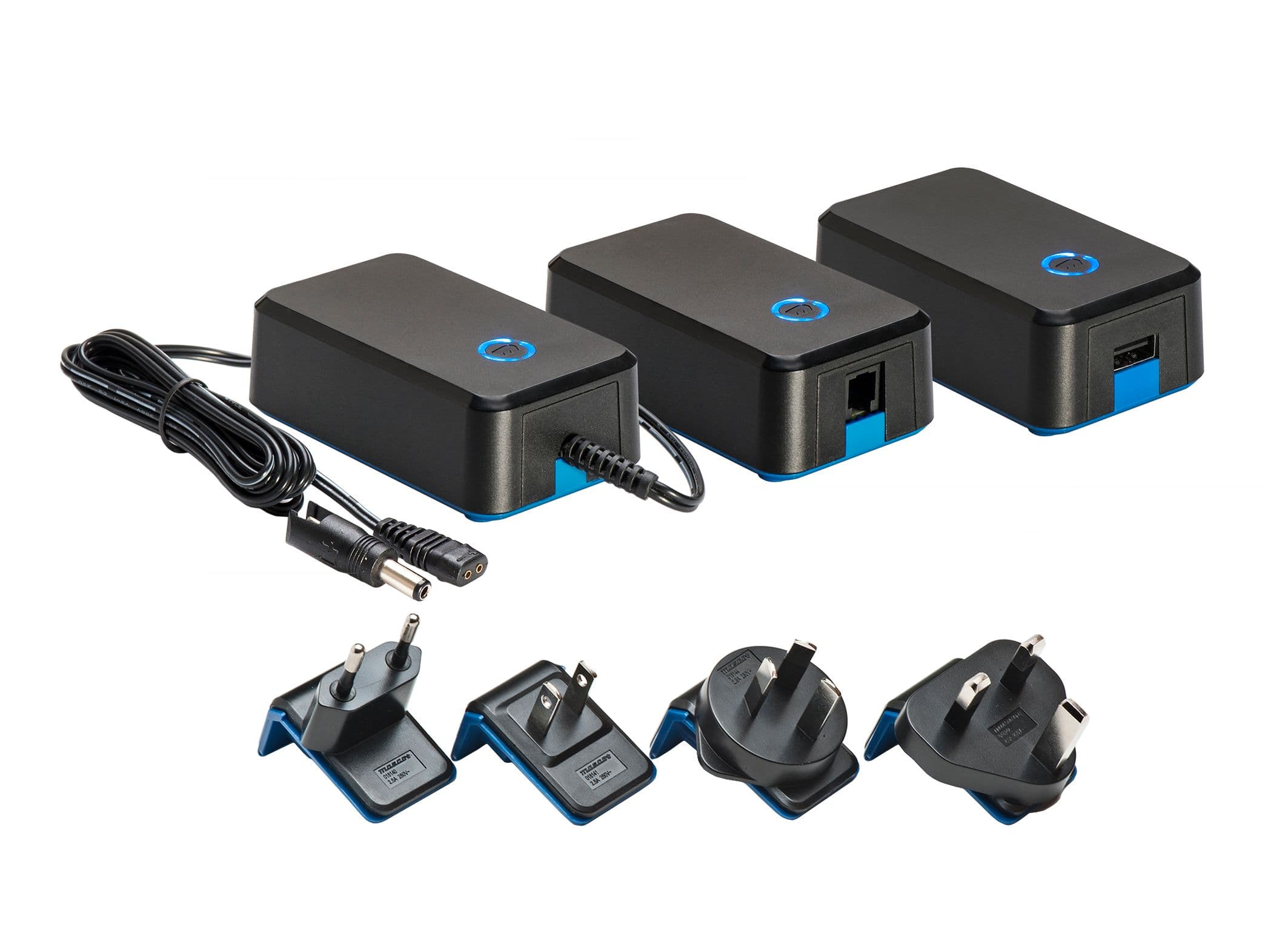

Plug-in/desktop power supply, 90-264 VAC, max. out 7,5W
Product Information
Universal input voltage (90-264VAC)
Fixed output voltages
Fixed output cord, Mod. 4P4C (RJ22) or USB (5V)
2-pin IEC 60320 C8 connector
Short circuit proof
ECO-design compliance:
CoC Tier 2, DoE level VI, CEC, MEPS
Approvals
Medically certified
Safety:
• UL approved
• EN 60601-1 ed. 3.1
EMC:
• EN 60601-1-2 ed. 4
Custom specifications on request
Custom specifications on request: output voltage, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Plug-in/desktop unit
- 90-264V
- Fixed output cord, modular 4P4C (RJ-22) or USB (5V)
- Exchangeable AC and DC plugs available
- Standard DC output cord for exch. plugs (5V): 1.8m, EMI Core twin 20AWG, UL2468
- Standard DC output cord for exch. plugs (9-12V): 1.2m 2x18AWG, UL2468
- Order plugs and mains cord separately
Accessories

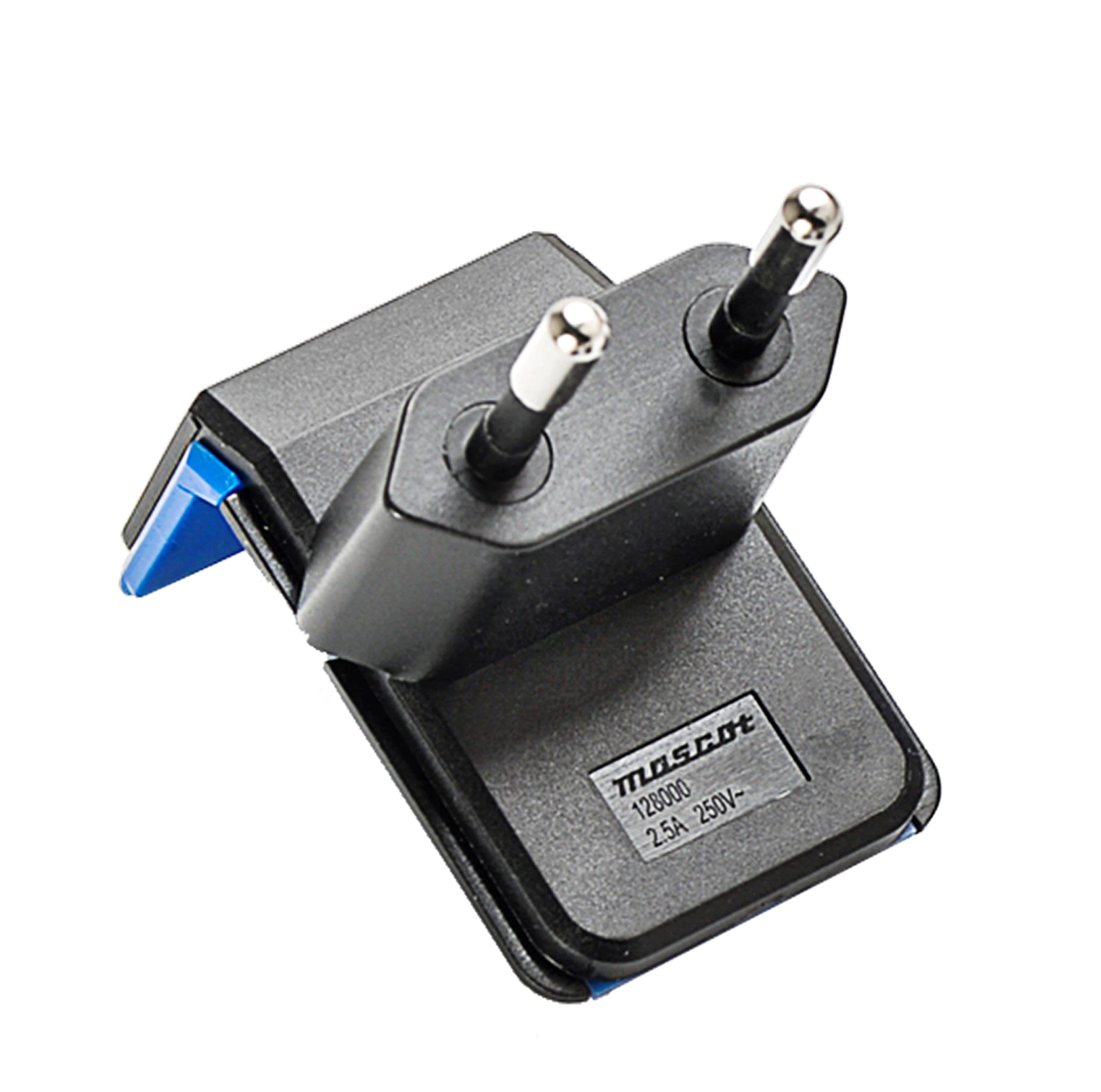

Exch AC Plug Blueline EU
Art. no:
128000

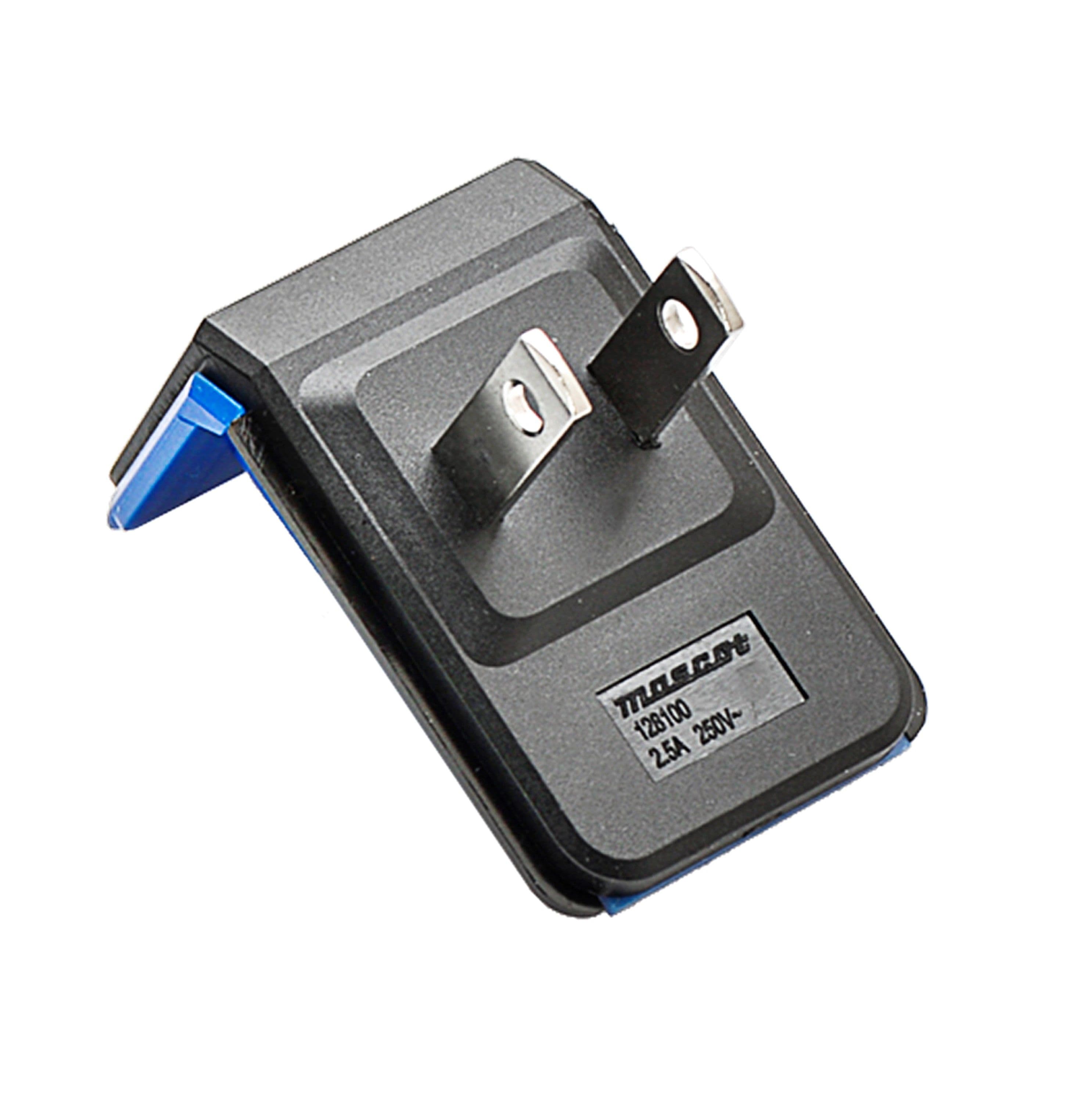

Exch AC Plug Blueline US
Art. no:
128100

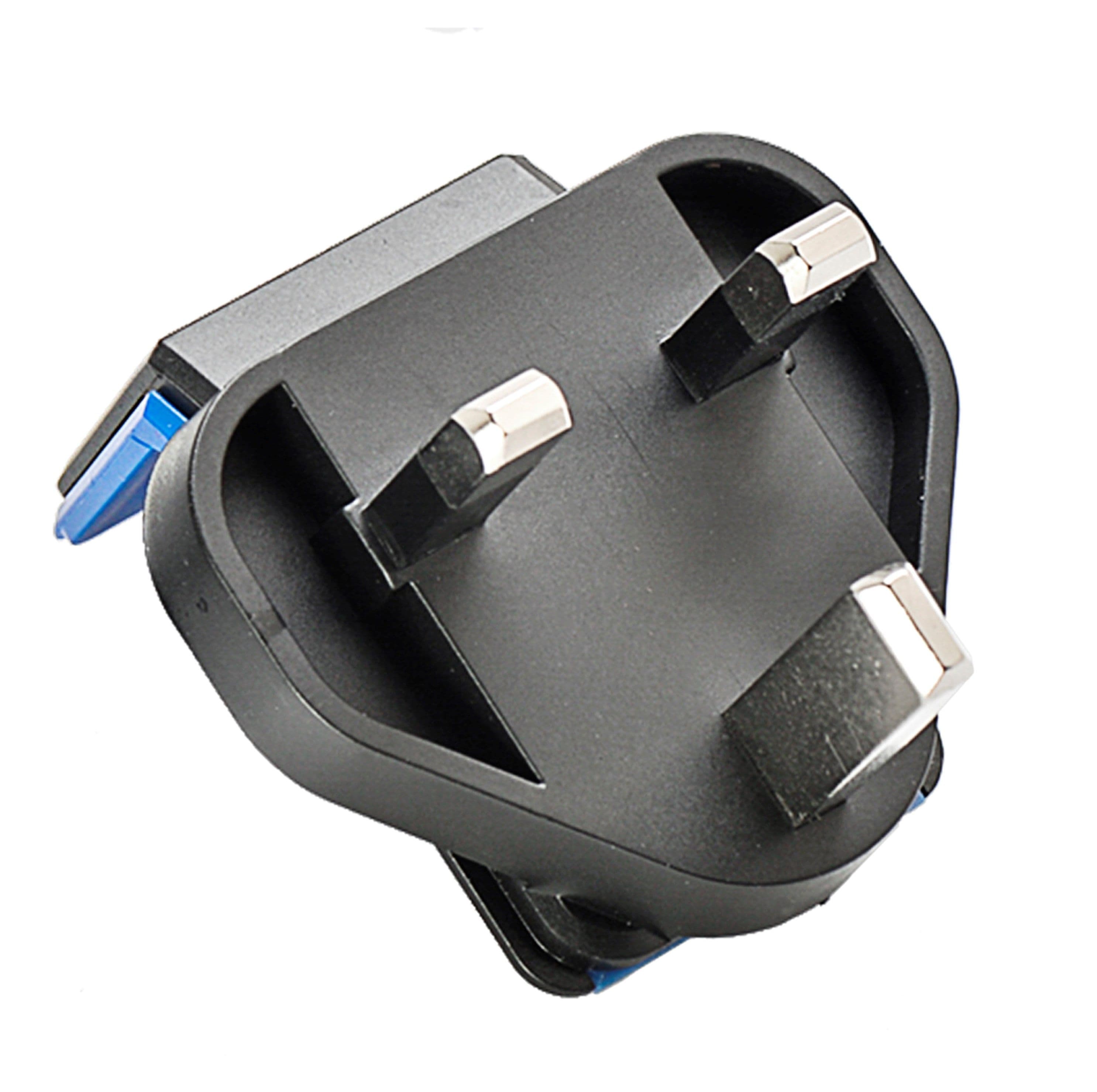

Exch AC Plug Blueline UK
Art. no:
128200

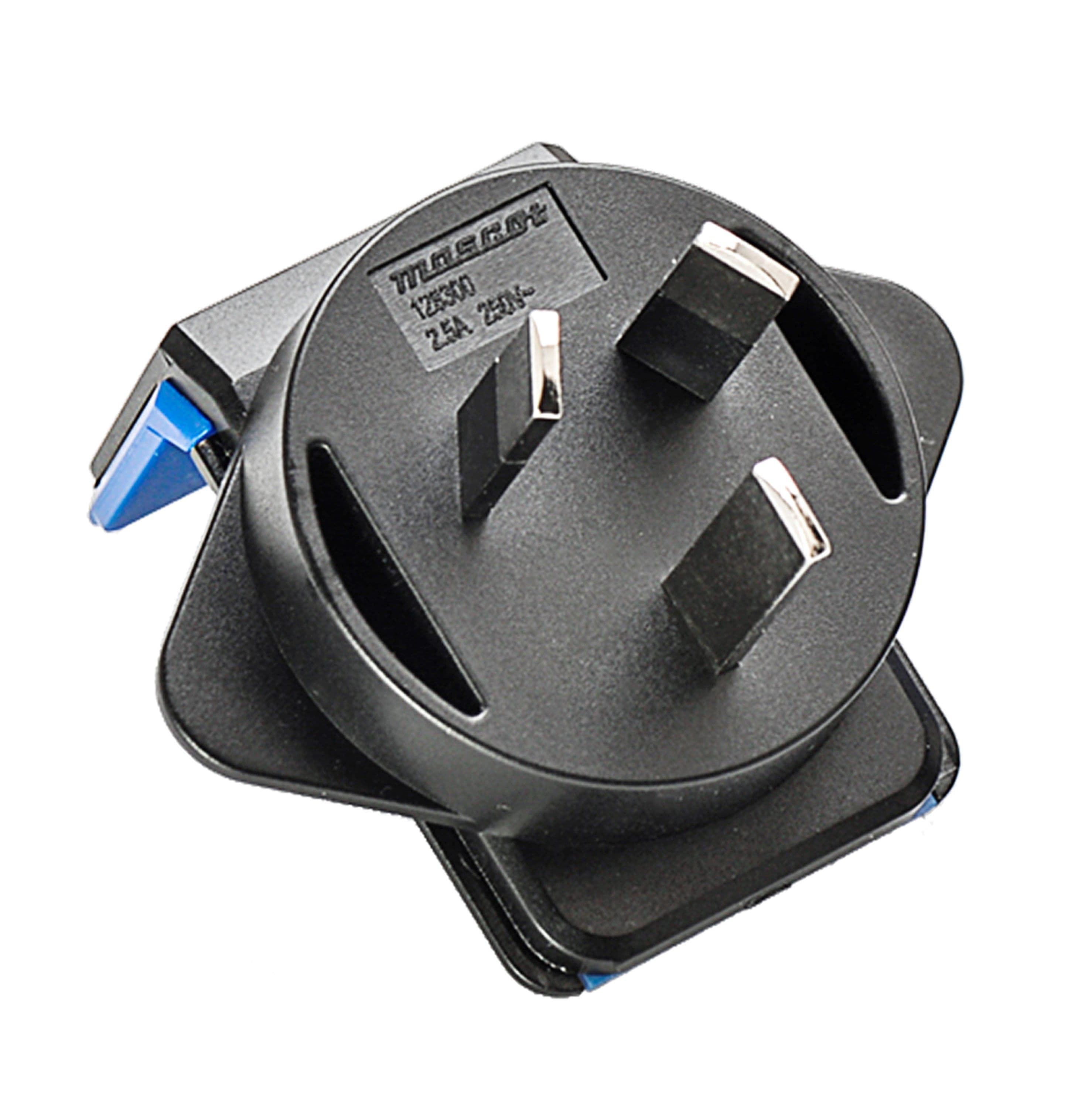

Exch AC Plug Blueline AUS
Art. no:
128300

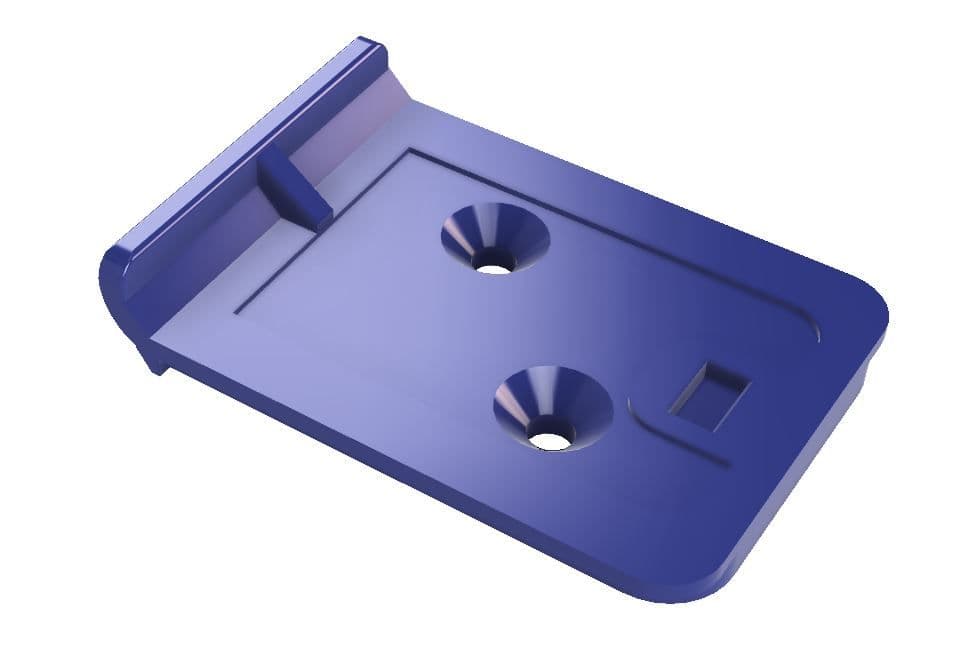

Wall Mount Bracket Exch AC Plug Blueline
Art. no:
127400
AC Cord 2-pin IEC 60320 EU
Art. no:
131306
AC Cord 2-pin IEC 60320 UK
Art. no:
131148
AC Cord 2-pin IEC 60320 AUS
Art. no:
013108
AC Cord 2-pin IEC 60320 US_
Art. no:
131368
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
Exch DC Push on terminal 131341
Art. no:
131341
