3926

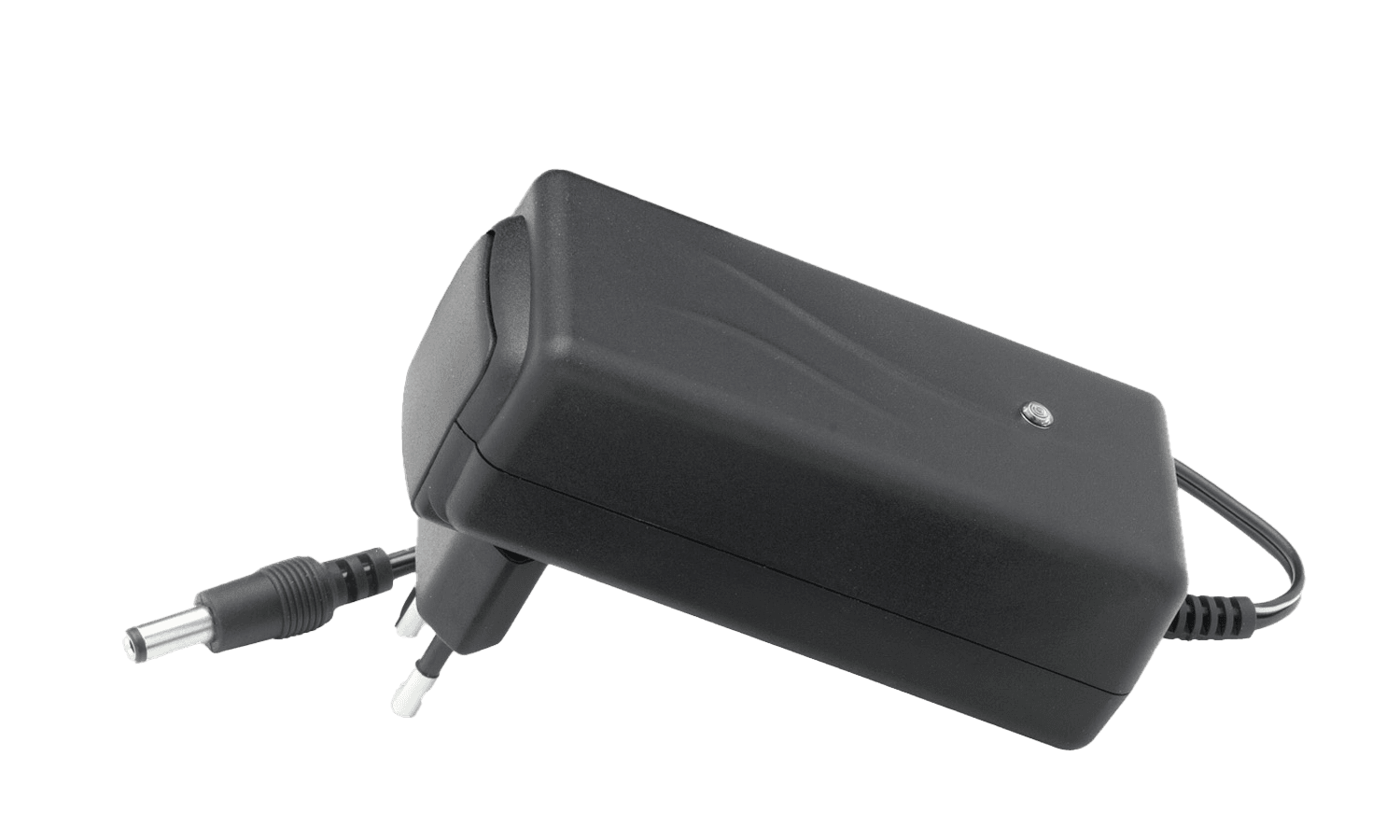

Plug-in/desktop power supply, 90-264 VAC, max. out 28W
Product Information
Universal input voltage (90-264VAC)

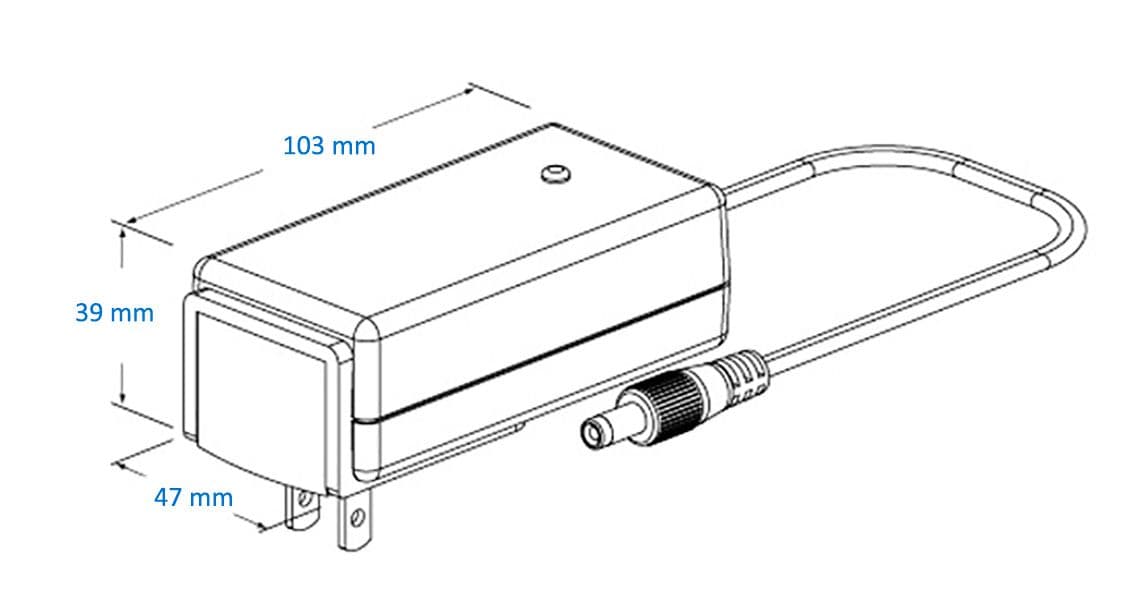

Compact design: 103.5 x 46.8 x 38.7 mm
Fixed output voltages (9V, 12V and 24V)
Short circuit proof
ECO-design compliance:
CoC Tier 2, DoE level VI, CEC, MEPS
Custom specifications on request
Custom specifications on request: output voltage, connectors, cords, logo print, housing/open frame/IP rating and certificates.
For more info, see: custom design page
Notes
- Plug-in/desktop unit
- 90-264V

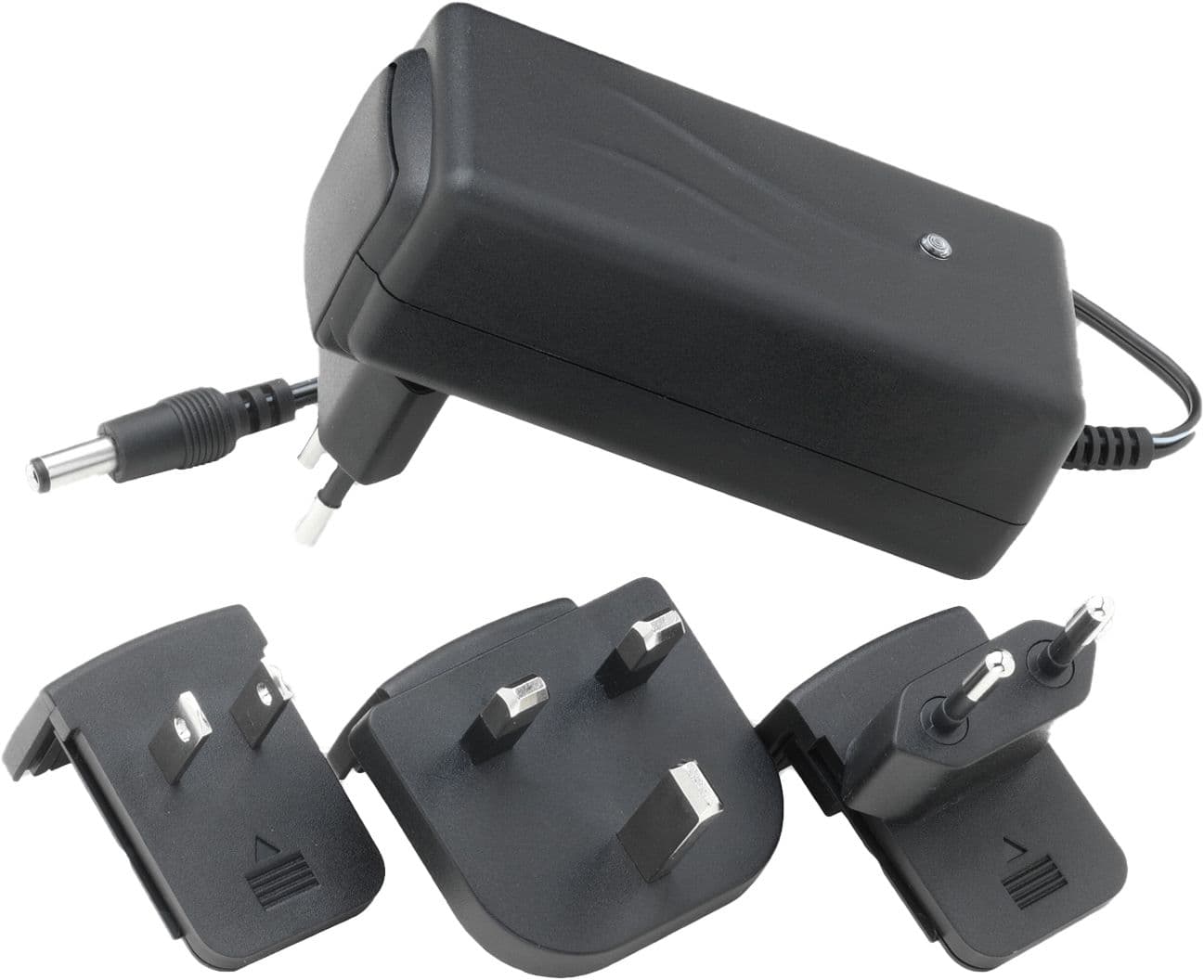

- Exchangeable AC and DC plugs
- Standard DC output cord (for exch. plugs): L: 1.2m, 20AWG, UL2468
- Order plugs and mains cord separately

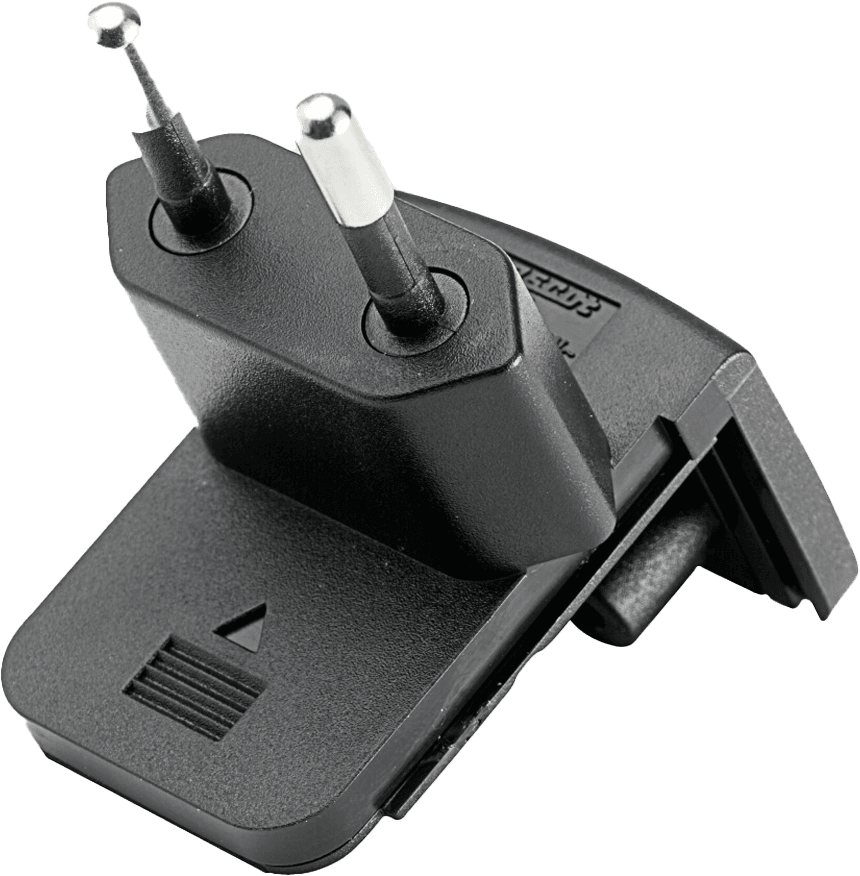

Exch AC Plug EU 018110
Art. no:
018110
Exch AC Plug US 018111
Art. no:
018111
Exch AC Plug UK 018112
Art. no:
018112
Exch AC Plug AUS 018114
Art. no:
018114
Exch DC Plug EIAJ 53201 art. 131125
Art. no:
131125
Exch DC Plug EIAJ 53202 art. 131126
Art. no:
131126
Exch DC Plug EIAJ 53203 art. 131127
Art. no:
131127
Exch DC Plug EIAJ 53204 art. 131128
Art. no:
131128
Exch DC Plug Pack II EIAJ 4 pcs 9000000201
Art. no:
9000000201
Exch DC Plug 3615 art. 131123
Art. no:
131123
Exch DC Plug 3617 art. 131120
Art. no:
131120
Exch DC Plug 3618 art. 131193
Art. no:
131193
Exch DC Plug 3620 art. 131124
Art. no:
131124
Exch DC Plug 3627 art. 131122
Art. no:
131122
Exch DC Plug 3630 art. 131119
Art. no:
131119
Exch DC Plug 3630A art. 131192
Art. no:
131192
Exch DC Plug 3635 art. 131121
Art. no:
131121
Exch DC Plug Pack I 36XX plugs 8 pcs 9000000200
Art. no:
9000000201
